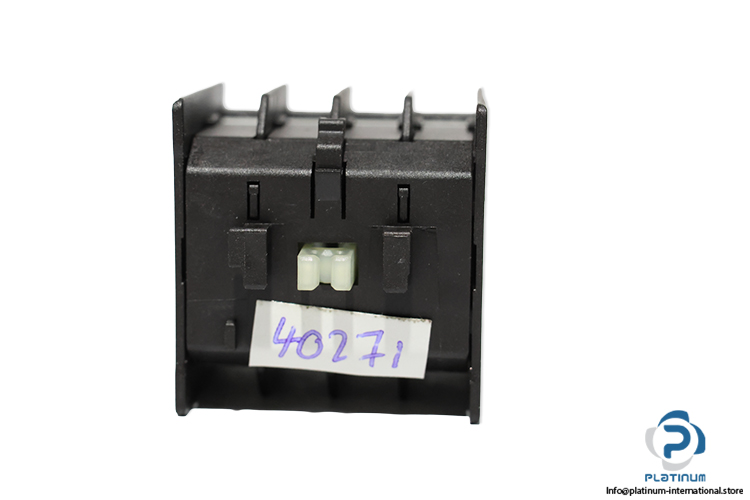

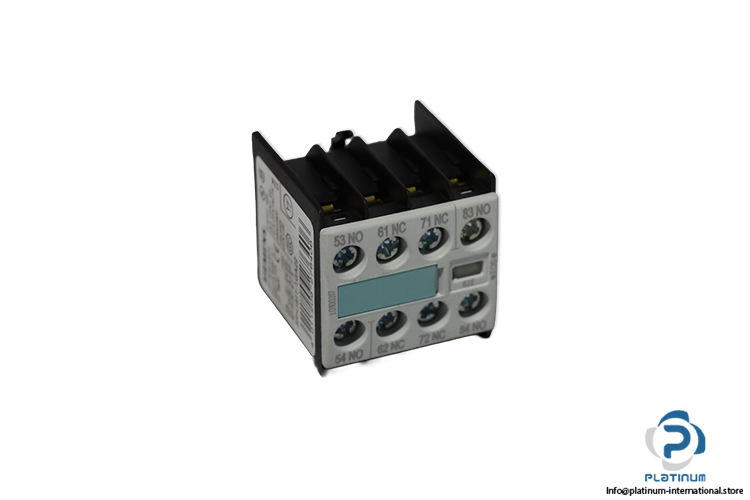

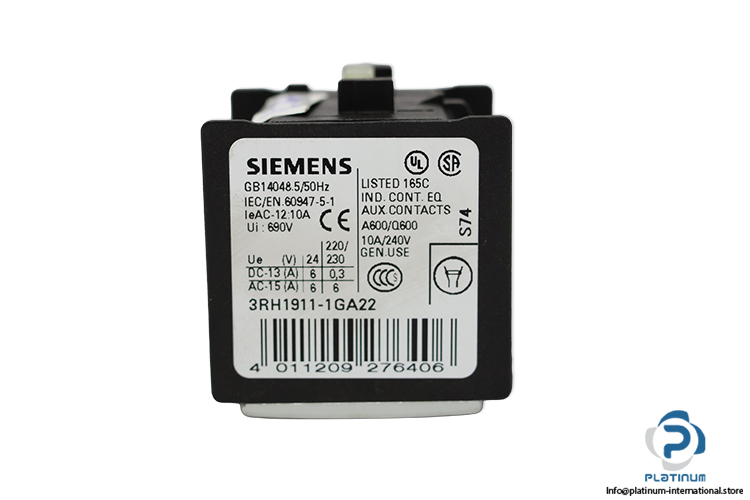

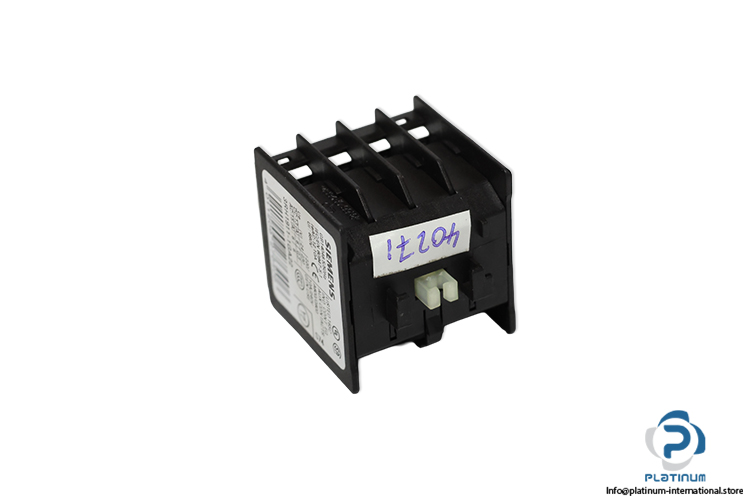

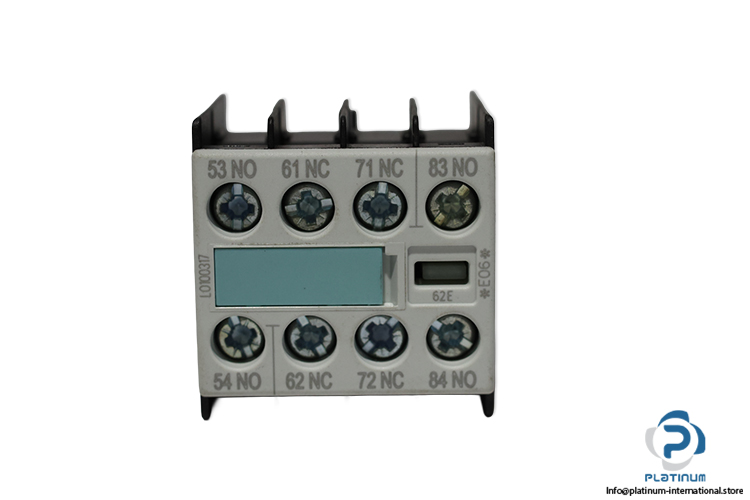

Siemens 3RH1911-1GA22 Auxiliary Switch Block
新着
在庫あり1 ユニット即納可能
Auxiliary Switch Block Siemens SIRIUS 4-pole auxiliary switch block with 2 normally open contacts, screw terminals, and 690 V AC insulation voltage for industrial control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Code | 4 011209 276406 |
| Range | SIRIUS |
| Insulation Voltage (Ui) | 690 V |
| Operating Current | 10 A |
| Surge Voltage Resistance | 6 kV |
| Auxiliary Contacts | 2 NO + 2 NC |
| Mounting Type | Snap-on mounting |
| Electrical Connection | Screw-type terminals |
| Suitability | Contactor relay and power contactor |
| Operating Temperature | -25 / +60 °C |
| Degree of Protection | IP20 |
| Dimensions | 36.5 x 37.5 x 41.5 mm |
| Standard | IEC/EN.60947-5-1 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101464 |
| Weight | 0,04 |
