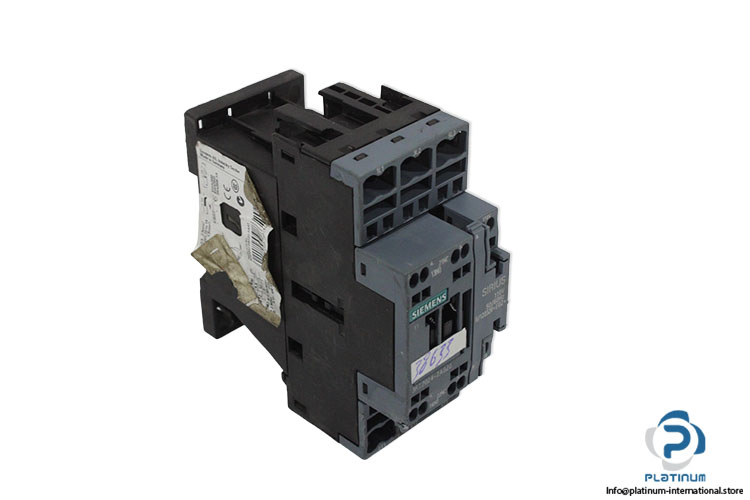

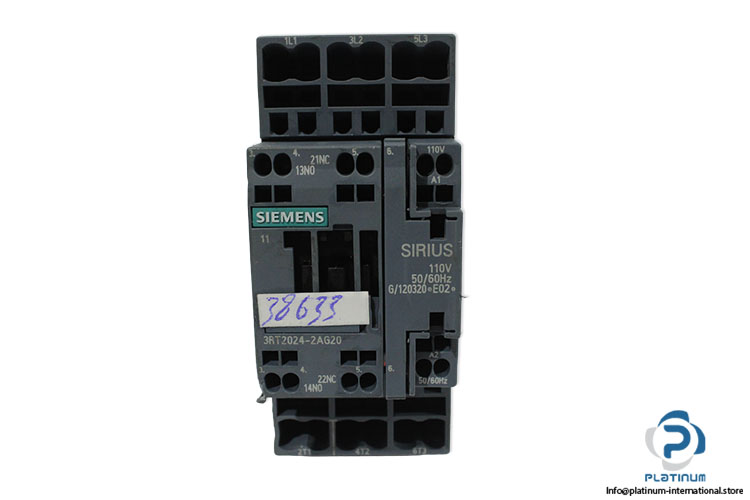

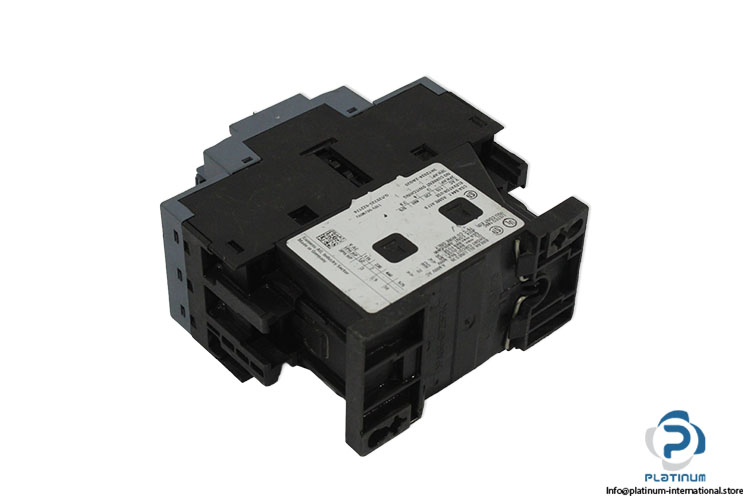

Siemens -3RT20242AG20 Power Contactor
新着
在庫あり1 ユニット即納可能
Power Contactor The Siemens SIRIUS 3RT2024-2AG20 is a three-pole power contactor designed for industrial motor control and switching applications. Featuring a 400 V AC operational voltage, 110 V AC coil, 12 A AC-3 rating, and 5.5 kW power capacity, it provides reliable performance for automation panels and industrial electrical systems.
大量在庫
グローバル配送
専門的なサポート
品質保証
| MNR | 3RT2024 2AG20 |
| Part No. | 3ZX1012-0RT22-1AA1 |
| Product Brand Name | SIRIUS |
| Product Designation | Power Contactor |
| Product Type Designation | 3RT2 |
| No. of poles | 3 |
| Size Of Contactor | S0 |
| Operational Voltage | 400 V AC |
| Insulation Voltage | 690 V AC |
| Coil Voltage | 110 V AC |
| Rated Operational Current (AC-3) | 12 A |
| Rated Operational Current (AC-15) | 3 A |
| Type of connection | N/O 1, N/C 1 |
| Rated power | 5,5 kW |
| Frequency | 50/60 Hz |
| Fastening Method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Height | 103 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Protection degree | IP20 |
| Operation Temperature | -25 ... +60 °C |
| Standards | IEC / EN 60947-4-1 |
| Certification | CE, UL |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093122 |
| Weight | 0,42 |
