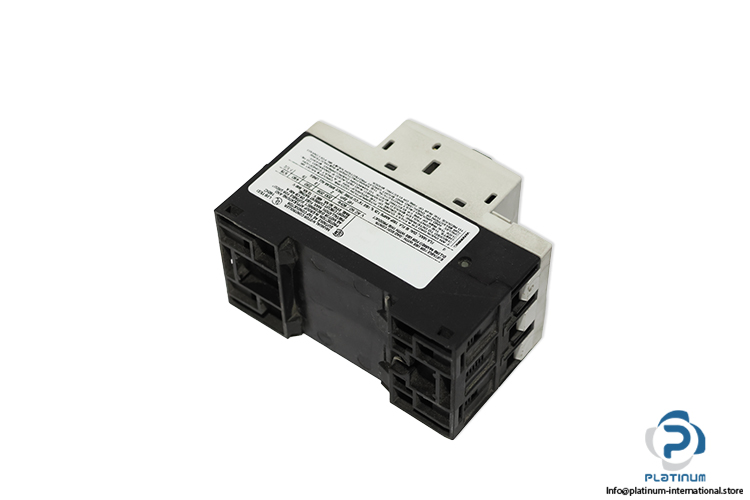

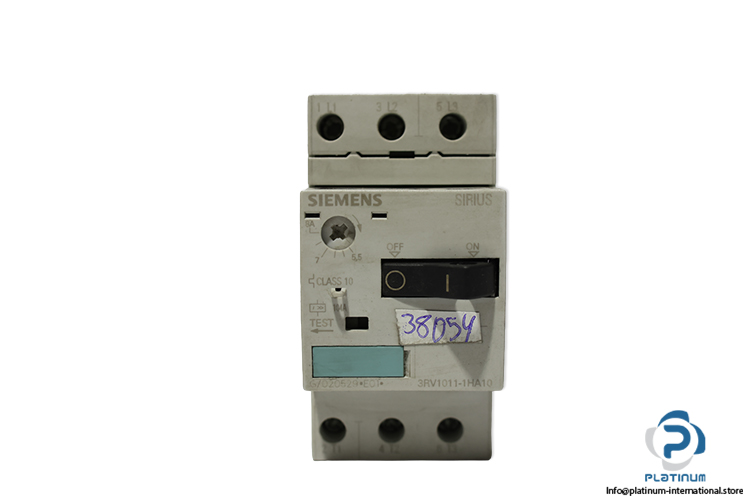

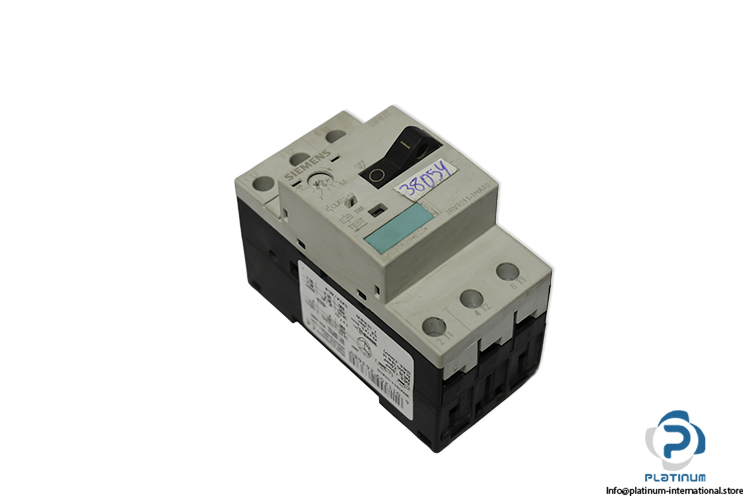

Siemens 3RV1011-1HA10 Circuit Breaker
新着
在庫あり1 ユニット即納可能
Siemens 3RV1011-1HA10 3-pole circuit breaker, 8 A, 20–690 V, with screw terminals, rocker switch, and IP20 protection for industrial electrical applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Code | 4 011209 263680 |
| number of poles for main current circuit | 3-pole |
| type of electrical connection | screw-type terminals |
| display version for switching status | Rocker switch |
| operating voltage | 20 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 8 A |
| tightening torque | 0.8 ... 1.2 N·m |
| power loss [W] for rated value of the current AC | operating state 9.25W/ operating state per pole 3.1W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6Kv |
| Standard | IEC 60947 |
| protection class | IP20 |
| Ambient temperature operation | -20 ... +60 °C |
| Dimensions | 90 x 45 x 75 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1105142 |
| Weight | 0,29 |
