Siemens 3SU1801-0NB00-2AC2 Enclosure
新着
在庫あり28 単位即納可能

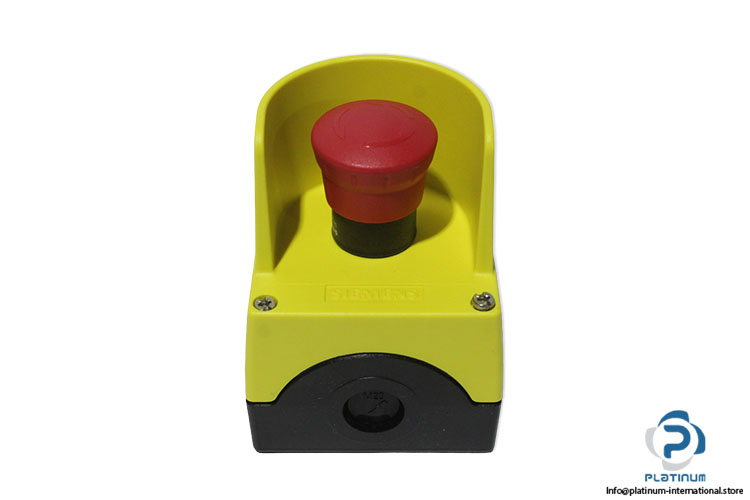

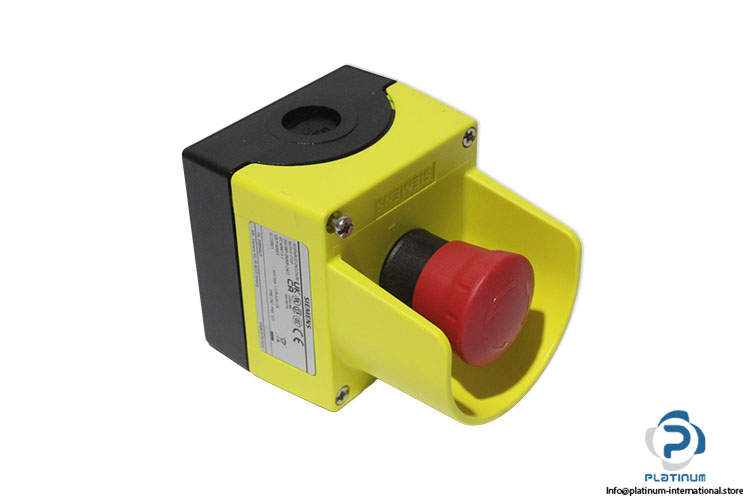

The Siemens 3SU1801-0NB00-2AC2 is an emergency stop pushbutton enclosure featuring a yellow plastic housing with a protective collar, a 40 mm red mushroom pushbutton, IP66/IP67/IP69K protection, and support for 5–500 V AC/DC industrial control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Design of the Housing | With protective collar |
| Shape of the Enclosure Front | Square |
| Material of the Enclosure | Plastic |
| Color of the Enclosure Top Part | Yellow |
| Number of Contact Modules | 2 |
| Protection Class | IP66, IP67, IP69 (IP69K) |
| Operating Voltage | 5 … 500 V AC/DC |
| Frequency | 50/60 Hz |
| Contacts | 1 NC, 1 NC |
| Type of Electrical Connection | Screw-type terminal |
| Cable Routing | Above and below, both 1 x M20 |
| pushbutton features | EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch |
| Screws in the Bracket | 1 … 1.2 N·m |
| Fixing Screws in the Enclosure Cover | 1.5 … 1.7 N·m |
| Screw-type Terminals | 0.8 … 0.9 N·m |
| Ambient Temperature | -25 … +70 °C |
| Dimensions (H X W X D) | 85 x 85 x 112.5 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093379 |
| Weight | 0,38 |
