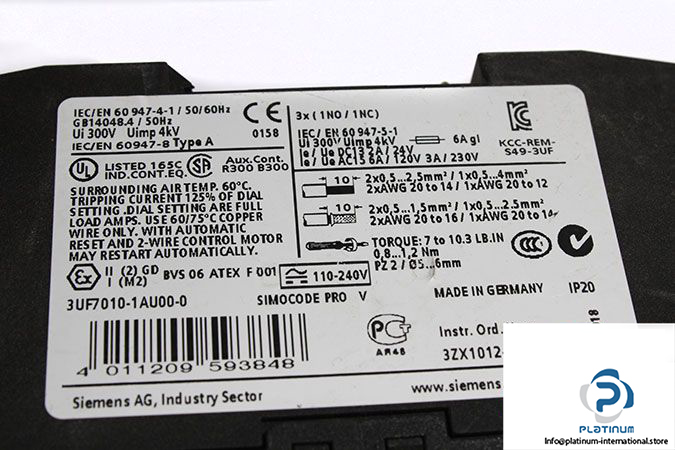

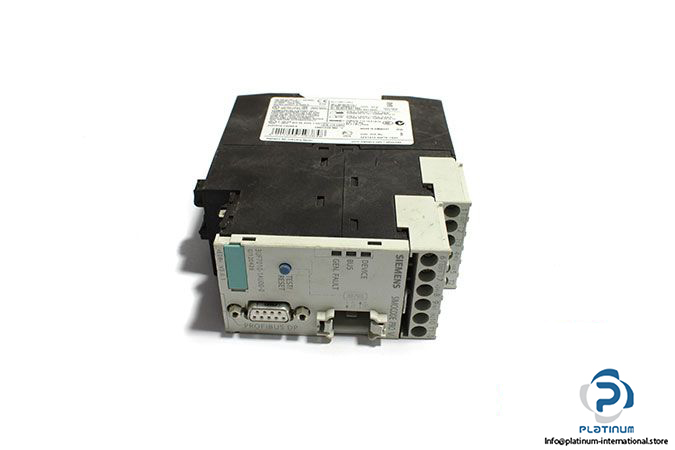

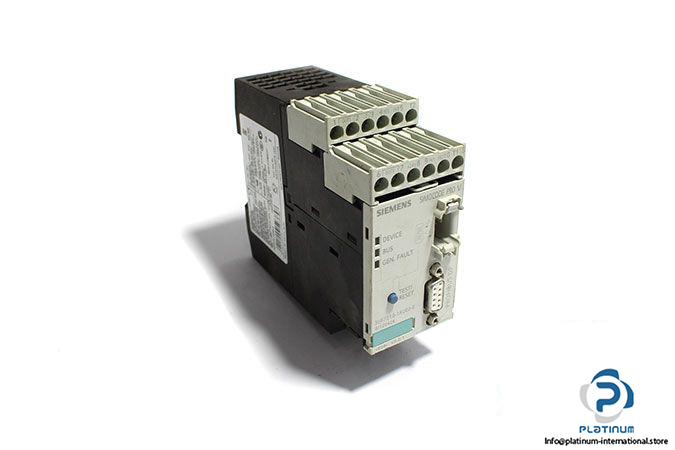

Siemens 3UF7010-1AU00-0 Basic Unit
SIEMENS 3UF7010-1AU00-0 BASIC UNIT
The Siemens 3UF7010-1AU00-0 Basic Unit is designed for reliable integration into industrial control systems, offering robust performance and compliance with international standards. With versatile AC/DC voltage compatibility and a compact design, it is well-suited for a wide range of automation applications.
Manufacturer: Siemens
Type: Basic Unit
Model: 3UF7010-1AU00-0
| Standard | IEC/EN 60.947-4-1 |
| Apparent Power Consumption | 8.3 VA |
| Consumed Active Power | 3.6 W |
| Type of Voltage (Control Supply) | AC/DC |
| Control Supply Voltage at AC | 110 / 240 V |
| Control Supply Voltage Frequency | 50 / 60 Hz |
| Control Supply Voltage at DC | 110 / 240 V |
| Insulation Voltage (Pollution Degree 3, AC) | 300 V |
| Surge Voltage Resistance | 4000 V |
| Protection Class IP | IP20 |
| Dimensions (H x W x D) | 111 x 45 x 124 mm |
| Ambient Temperature Range | -25 ... +60 °C |
