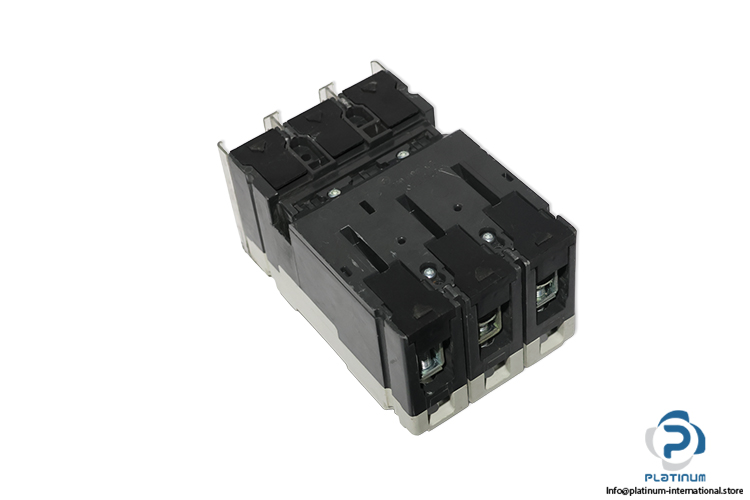

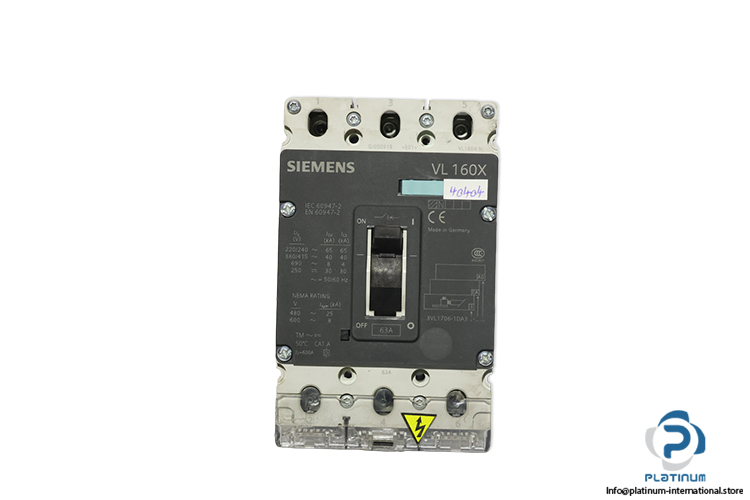

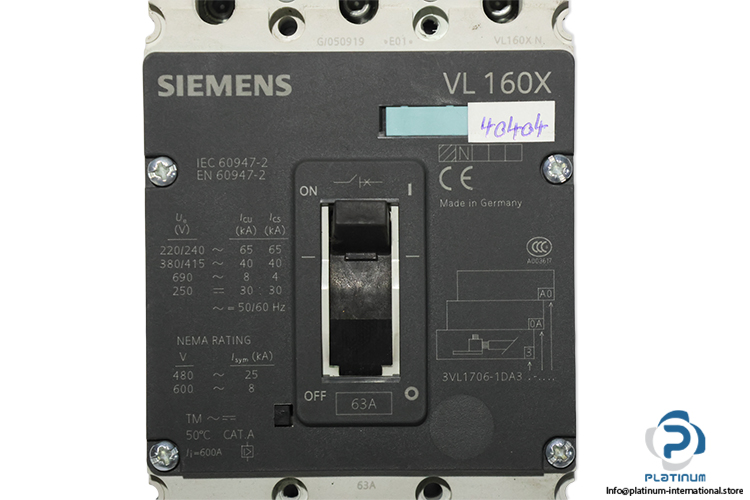

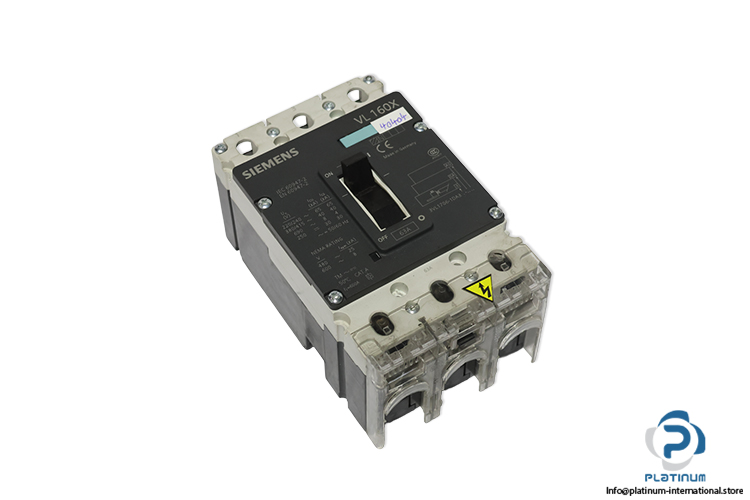

Siemens 3VL1706-1DA33-0AA0 Molded Case Circuit Breaker Mccb
中古
在庫あり1 ユニット即納可能
Molded Case Circuit Breaker MCCB The Siemens 3VL1706-1DA33-0AA0 is a 63 A, 3-pole MCCB designed for reliable motor protection in industrial electrical applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Size | 3VL1 |
| Range | VL 160X N |
| Suitability for | Motor Protection |
| Rated Operational Voltage | 690 V AC / 500 V DC |
| Rated Current | 63 A |
| Overload Protection Current | 600 A |
| Rated Frequency | 50 … 60 Hz |
| Rated Insulation Voltage | 800 V AC |
| Poles No. | 3-Poles |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 55 kA at 415 V AC (65 kA at 240 V AC) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 55 kA at 415 V AC (65 kA at 240 V AC) |
| Protection Class | IP20 |
| Operation Temperature | 0 … 70 °C |
| Dimensions | 185.5 x 104.5 x 106.5 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104092 |
| Weight | 1,95 |
