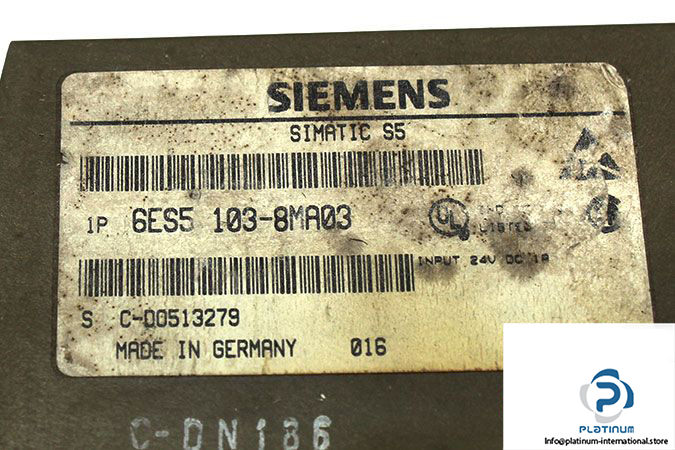

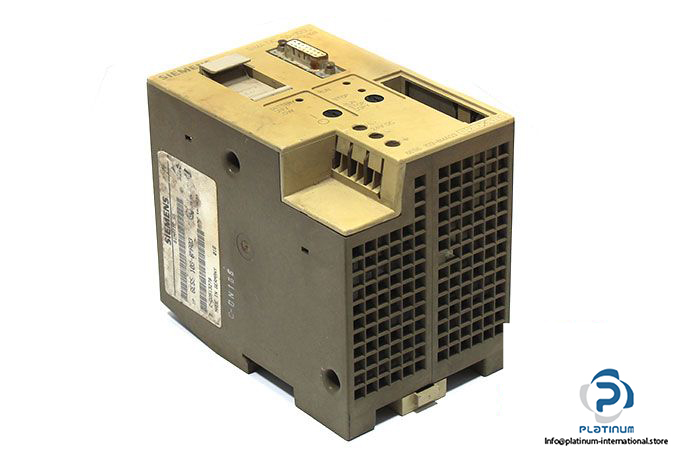

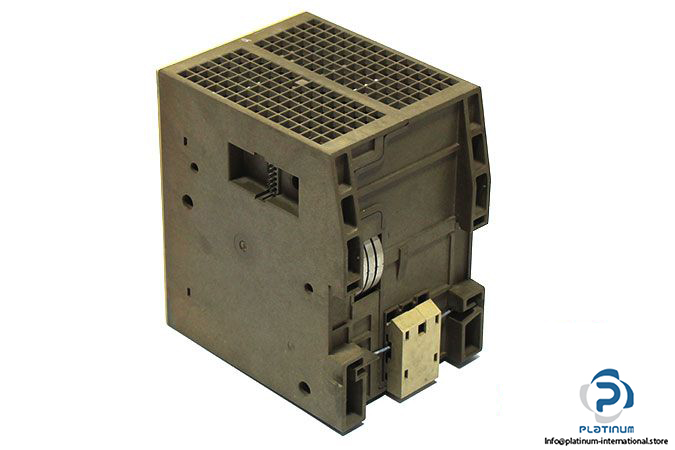

Siemens 6ES5 103-8MA03 Central Processing Unit
中古
在庫あり2 単位即納可能
中央処理装置 Siemens 6ES5103-8MA03 CPUは、SIMATIC S5-100Uシステム用の信頼性の高いバイト/ビットプロセッサです。10K RAM、二重電圧出力、およびEPROM/EEPROMメモリサブモジュールを搭載し、自動化環境で堅牢な性能を保証します。
24VDC6ES5103-8MA03AutomationBatteryBitByteCentralCPUEpromIndustrialLithiumModulePLCprocessingprocessorS5S5-100USiemensSimaticUnitWith
大量在庫
グローバル配送
専門的なサポート
品質保証
SIEMENS 6ES5103-8MA03 CENTRAL PROCESSING UNIT
The Siemens 6ES5103-8MA03 is a robust Central Processing Unit designed for the SIMATIC S5-100U automation system. Engineered for precise and reliable byte/bit processing, it supports extensive memory configurations and operates efficiently in industrial environments.
Manufacturer: Siemens
Type: Central Processing Unit
Model: 6ES5103-8MA03
Family: SIMATIC S5
Uses for: S5-100U
Serial No.: C-00513279
Processor: Byte/Bit Processor
| Internal Memory | RAM 10240 Statements |
| Memory Submodule | EPROM/EEPROM |
| Input Voltage | 24 VDC |
| Output Voltage V1 (for I/Os) | +9 V |
| Output Voltage V2 (for Programmer) | +5.2 V |
| Current Consumption From 24 V | 1 A |
| Output Current V1 | 1 A |
| Output Current V2 | 65 A |
| Backup Battery | Lithium Battery (3.4 V / 850 mAh) |
| Power Losses of the Module | 11.6 W |
| Ambient Temperature | 0 / 40 °C |
| Dimensions | 91.5 x 135 x 120 mm |
