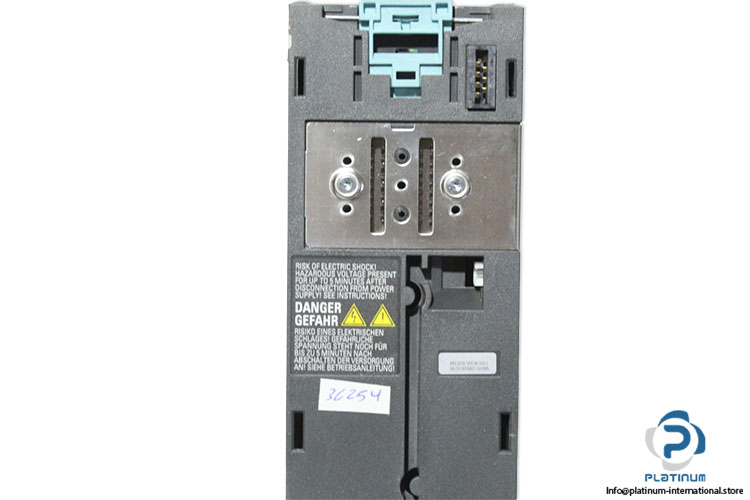

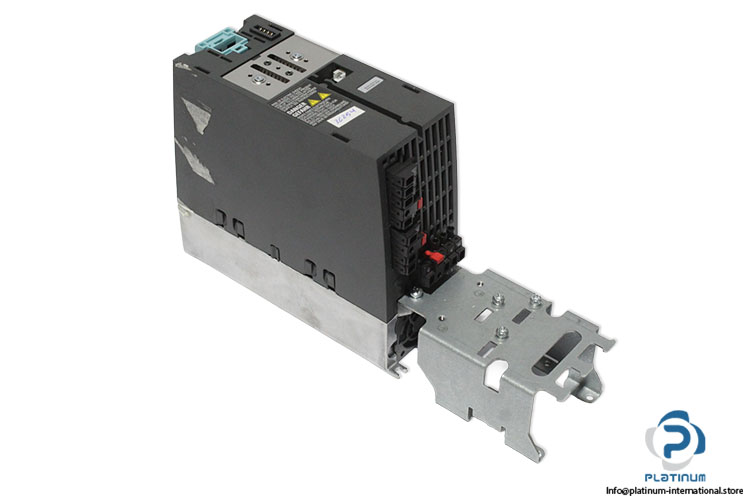

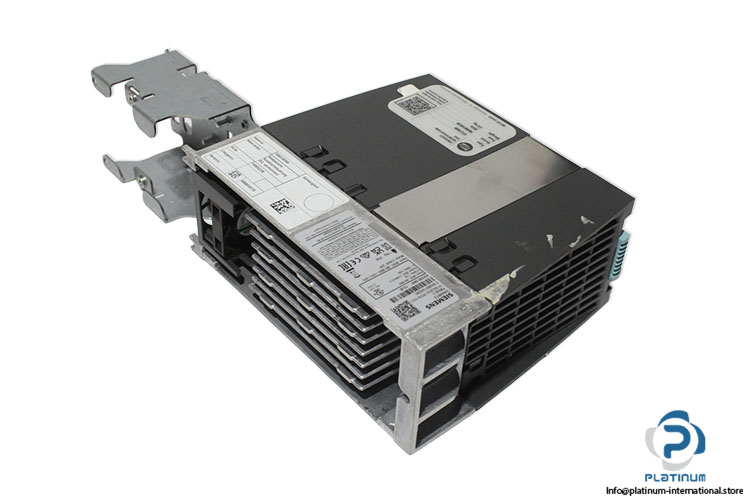

Siemens 6SL3210-1PE16-1UL1 Power Module
新着
在庫あり2 単位即納可能
Power Module SIEMENS SINAMICS PM240-2 power module designed for industrial motor control applications, featuring 3-phase input, 2.20 kW rated power, integrated Class A filter, and efficient internal air cooling.
大量在庫
グローバル配送
専門的なサポート
品質保証

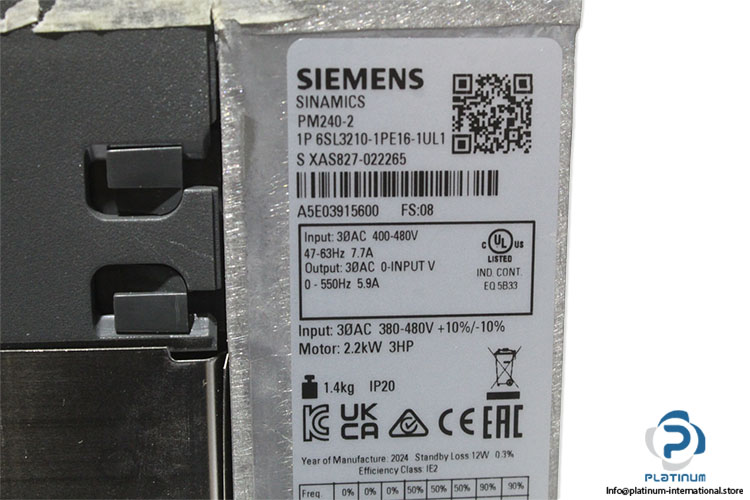

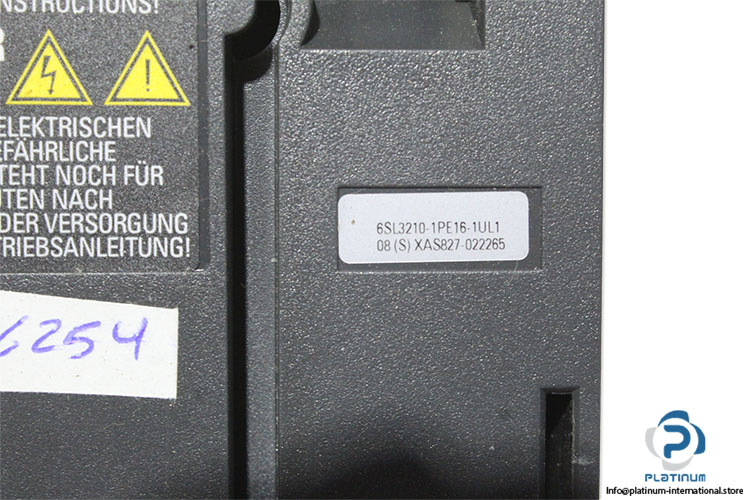

| MNR | 6SL3210-1PE16-1UL1 |
| Family | SINAMICS |
| Code | A5E03915600 /9000018175 |
| Ref No | 08 (S) XAS827-022265 |
| SN | XAS827-022265 |
| FS | 08 |

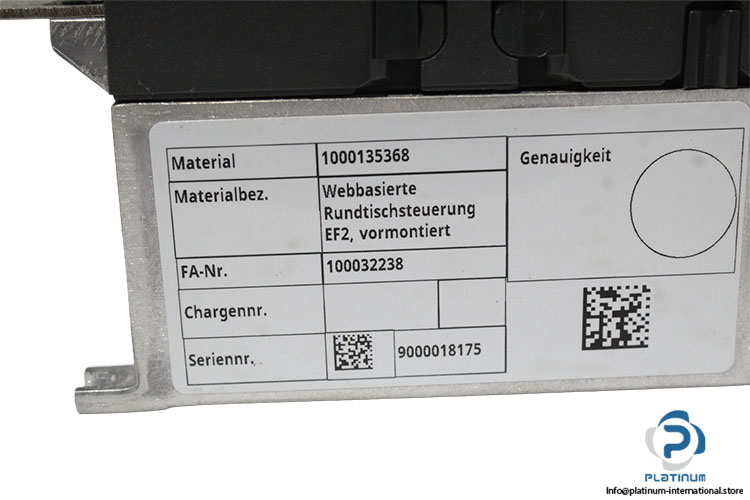

| Material No | 1000135368 |
| FA-Nr. | 100032238 |

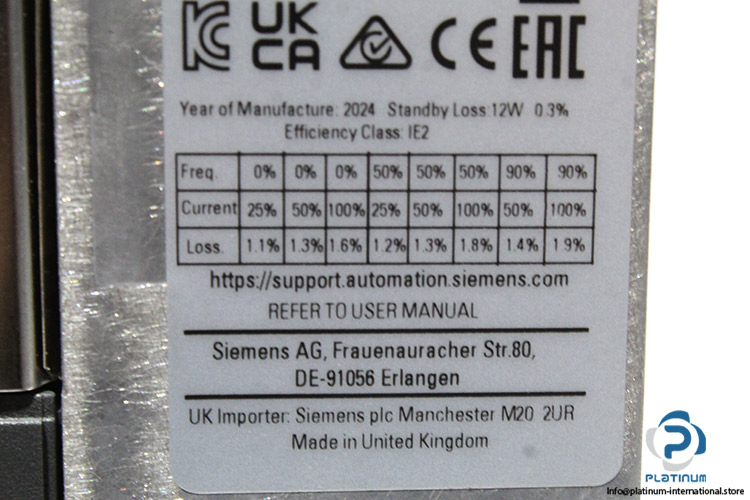

| Standby Loss | 12W 0.3% |
| Efficiency Class | IE2 |
| Number of phases, Input | 3 AC |
| Line voltage , Input | 380 ... 480 V |
| Input Current | 7.7 A |
| Line frequency, Input | 47 ... 63 Hz |
| Rated voltage | 400V IEC 480V NEC |
| Rated power (HO) | 1.50 kW |
| Rated current (LO) | 5.90 A |
| Rated current (HO) | 4.10 A |
| Max. output current | 8.90 A |
| Pulse frequency | 4 kHz |
| Output frequency for vector control | 0 ... 200 Hz |
| Output frequency for V/f control | 0 ... 550 Hz |
| Power factor | 0.85 |
| Offset factor | 0.95 |
| Efficiency | 0.96 |
| Sound pressure level (1m) | 72 dB |
| Power loss | 0.10 kW |
| Filter class (integrated) | Class A |
| Cooling | Internal air cooling |
| Cooling air requirement | 0.005 m³/s (0.177 ft³/s) |
| Installation altitude | 1,000 m (3,280.84 ft) |
| Ambient temperature,Operation LO | -10 ... 40 °C |
| Line side Version | Plug-in screw terminals |
| Degree of protection | IP20 / UL open type |
| Frame size | FSA |
| Width | 73 mm (2.87 in) |
| Height | 196 mm (7.72 in) |
| Depth | 165 mm (6.50 in) |
| Compliance with standards | UL, cUL, CE, C-Tick (RCM), SEMI F47 |

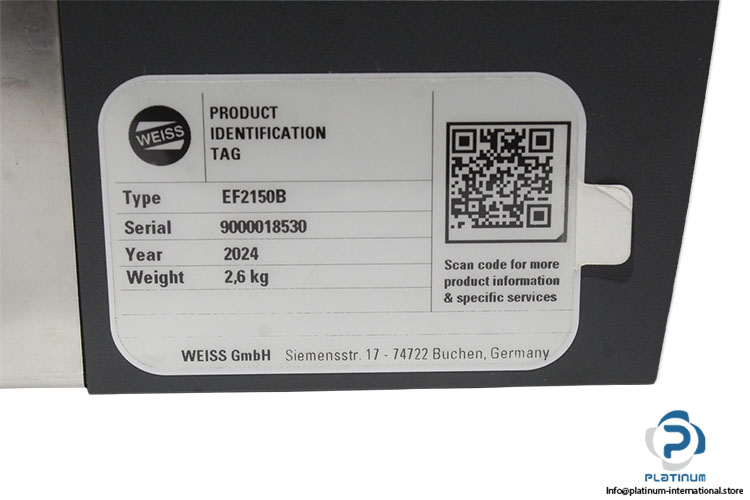

| Attached with | WEISS EF2150B Rotary Indexing Table Controller |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099618 |
| Weight | 1,7 |
