SIEMENS 3UA62 00-2H Overload Relay
中古
在庫あり1 ユニット即納可能
SIEMENS 3UA6200-2H Overload Relay Assembly Industrial SIEMENS overload relay assembly with adjustable current range of 55–80 A, 3-pole configuration, auxiliary contacts, and attached SIRIUS power contactor and auxiliary switch for motor protection and control applications.
大量在庫
グローバル配送
専門的なサポート
品質保証
| Setting Range | 55 - 80 A |
| Number of Poles/Phases | 3-pole |
| Auxiliary Contacts | 1 NO + 1 NC |
| Standard | VDE 0660, IEC 292 -1 |
| Supply Voltage | 600 V AC |
| Insulation Voltage | 1000 V |
| Contactor Compatibility | 3TB50, 3TB52, 3TF52, and 3TF53 |
| Attached with | SIEMENS 3RH1921-1DA11 Auxiliary Switch |
| SN | 4 011209 379862 |
| Insulation Voltage, Auxiliary Switch | 500 V AC |
| Current, Auxiliary Switch | 10 A |
| Frequency, Auxiliary Switch | 50 Hz |
| Contact Configuration, Auxiliary Switch | 1 Normally Open, 1 Normally Close |
| Contact Voltage, Auxiliary Switch | 24 … 230 V DC/ AC |

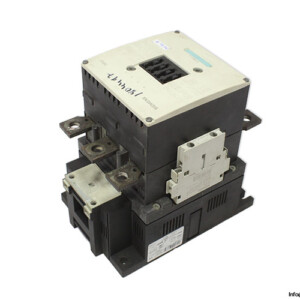

| Attached with 2 | SIEMENS 3RT1054-6AP36 power contactor |
| Part No. | 3ZX1012-0UA50-1AA1 |
| Product Brand Name, power contactor | SIRIUS |
| Product Type Designation, power contactor | 3RT1 |
| Size Of Contactor, power contactor | S6 |
| Power Loss [W], power contactor | For Rated Value Of The Current ? At AC In Hot Operating State 21 W ? At AC In Hot Operating State Per Pole 7 W ? Without Load Current Share Typical: 5.2 W |
| Standard, power contactor | IEC 60947,VDE 0660 |
| Insulation Voltage, power contactor | Of Main Circuit With Degree Of Pollution 3 Rated Value 1 000 V/ Of Auxiliary Circuit With Degree Of Pollution 3 Rated Value 500 V |
| Surge Voltage Resistance, power contactor | Of Main Circuit Rated Value 8 Kv ? Of Auxiliary Circuit Rated Value 6 Kv |
| Number Of NC Contacts For Auxiliary Contacts Instantaneous Contact | 0 Number Of NO Contacts For Auxiliary Contacts Instantaneous Contact: 3 |
| Height. power contactor | 172 Mm |
| Width, power contactor | 120 Mm |
| Depth , power contactor | 170 Mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1099430 |
| Weight | 4 |
