SKF KMT 3 Precision Lock NUT

Manufacturer: SKF
Type: Precision lock nut with locking pins
Model: KMT3

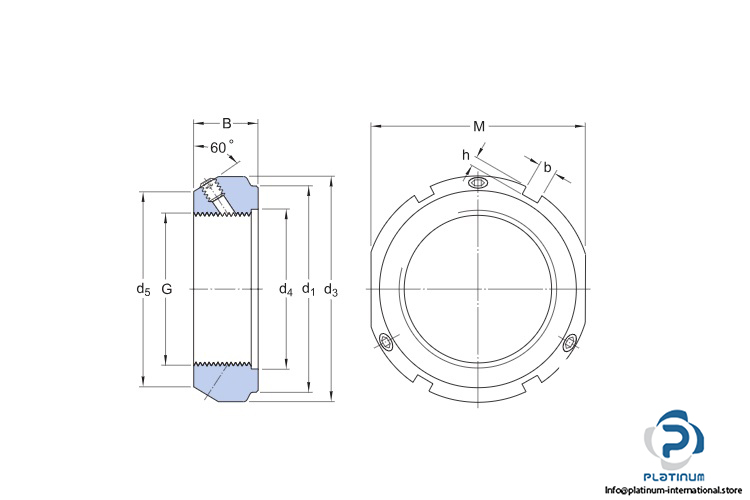

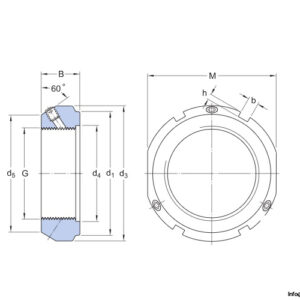

Bore diameter: 17 mm
Outside diameter d3: 37 mm
Width B: 18 mm
Outside diameter locating side face d1: 32 mm
Width flat spanner M: 34 mm
Width locating slot b: 5 mm
Depth locating slot h: 2 mm
Thread: M17x1
Axial static load carrying capacity: 80000 N
Locking device: Incorporated in the lock nut
