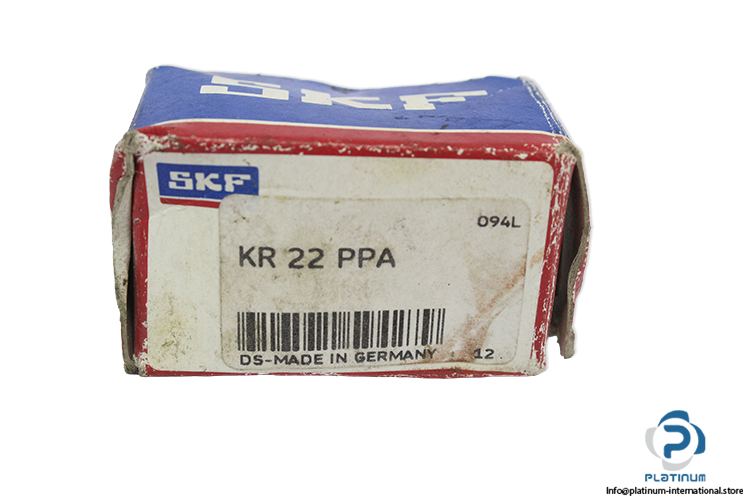

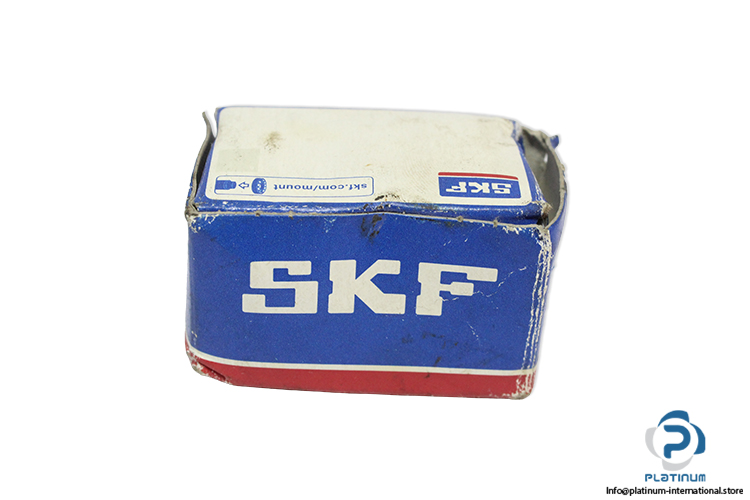

SKF KR 22 PPA Stud Type Track Roller
在庫あり1 ユニット即納可能
カムフォロワー SKF KR22PPA スタッドタイプトラックローラー、外径22mm、両側にPP接触シール、誘導運動用に強化された性能設計。コンベヤーシステム、カムドライブ、精密自動化アセンブリに最適です。
大量在庫
グローバル配送
専門的なサポート
品質保証
SKF KR22PPA Cam Follower (Stud-Type Track Roller)
The SKF KR22PPA cam follower is a stud-type track roller designed for guided motion applications, offering high load capacity, compact dimensions, and reliable sealing performance.
Manufacturer: SKF
Type: Cam Follower (Stud-Type Track Roller)
Model: KR22PPA
Recommended for cam drives, conveyor systems, linear guides, and automation mechanisms requiring durable rolling contact performance.
Please contact us via Ask for assistance with any inquiries.
| Outside Diameter (D) | 22 mm |
| Attachment Diameter (d) | 10 mm |
| Total Length (B) | 36.2 mm |
| Width Outer Ring (C) | 12 mm |
| Dynamic Load Rating (C) | 3.96 kN |
| Static Load Rating (C0) | 5 kN |
| Fatigue Load Limit (Pu) | 0.56 kN |
| Limiting Speed | 5000 rpm |
| Sealing | PP, Contact Seal on Both Sides |
| Suffix | A, Enhanced Performance Design |
