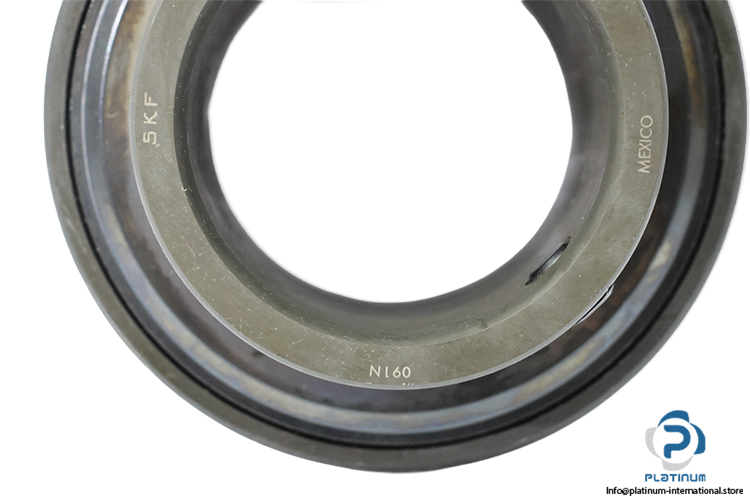

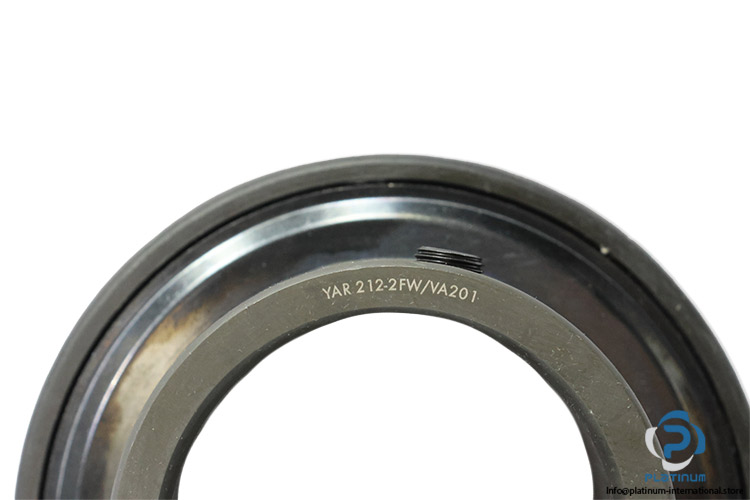

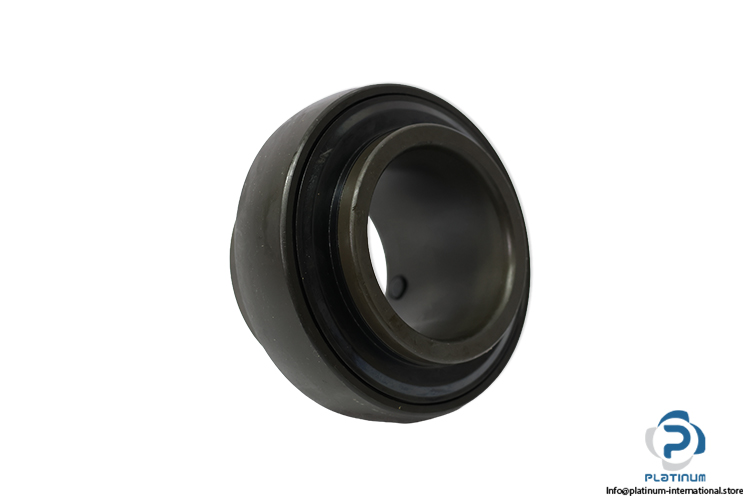

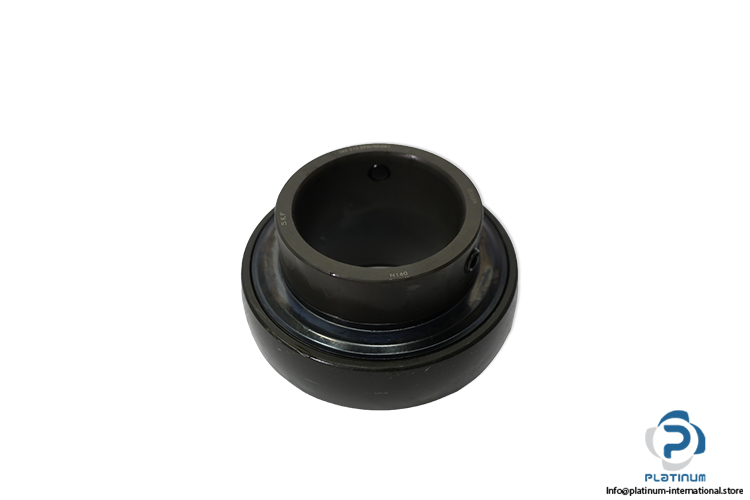

SKF YAR 212-2FW/VA201 High Temperature Insert Bearing

在庫あり5 単位即納可能

High Temperature Insert Bearing SKF high-temperature insert bearing with 60 mm bore, set screw locking, extended inner ring and maximum operating temperature of 250 °C.

メーカー
SKF?
SKU
1101228
カテゴリ
Insert Bearing
コンディション
新着
共有
大量在庫
グローバル配送
専門的なサポート
品質保証
Shaft diameter60 mm
Bore diameter60 mm
Outside diameter110 mm
Width, total65.1 mm
Width, inner ring65.1 mm
Width, outer ring26 mm
Basic dynamic load rating52.7 kN
Basic static load rating36 kN
Limiting speed50 r/min
Maximum operating temperature250 °C
Retaining feature, inner ringSet screws
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Shields / Flingers (2F)Standard high-temperature shields on both sides
CageSheet metal
Material, bearingHigh temperature steel
CoatingManganese phosphate coated
SealingShield and flinger on both side
Stock keyCON003
ConditionNew
SKU1101228
Weight1,45
