Telemecanique XCC-3514TS84SG Multiturn Absolute Encoder
SCHNEIDER XCC-3514TS84SG MULTITURN ABSOLUTE ENCODER
The Schneider Telemecanique XCC-3514TS84SG is a high-precision multiturn absolute encoder from the OsiSense XCC range, designed to deliver accurate and reliable performance in demanding industrial applications. With its through-shaft design, 14 mm shaft diameter, and robust SSI 25-bit gray output, this encoder ensures stable feedback and long-term durability.
Manufacturer: Schneider Telemecanique
Type: Multiturn Absolute Encoder

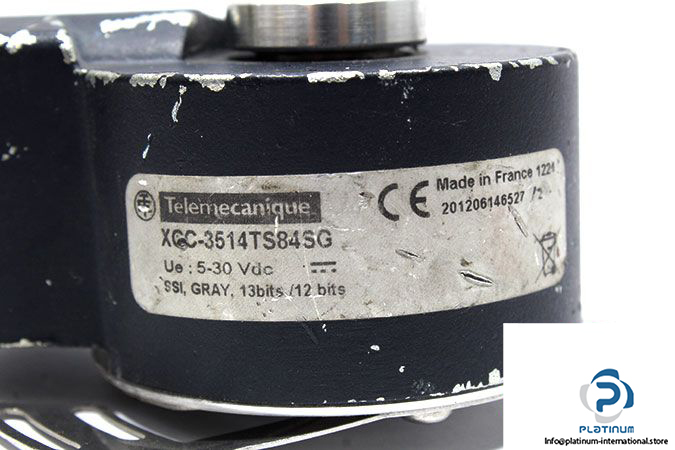

Model: XCC-3514TS84SG
Range of Product: OsiSense XCC

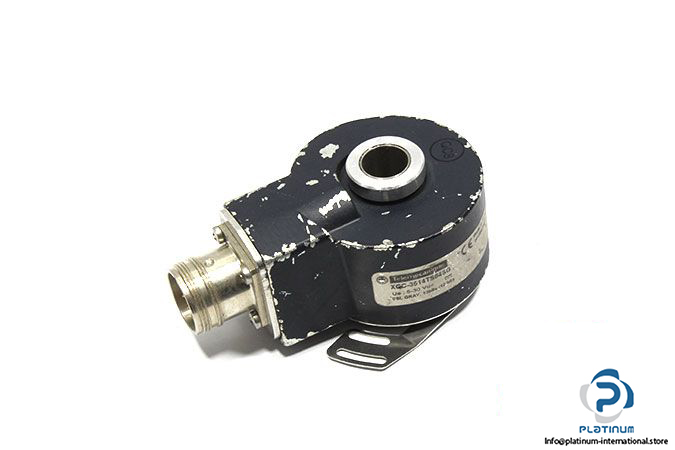

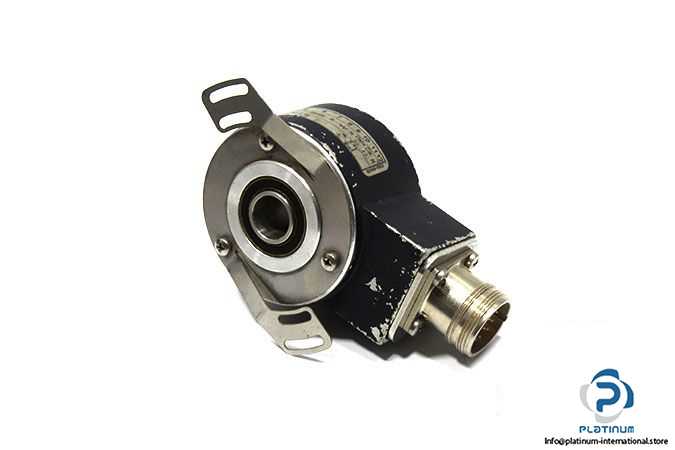

Shaft Type: Through Shaft
Shaft Diameter: 14 mm
| Resolution | 4096 turns / 8192 points |
| Supply Voltage | 5 / 30 V DC |

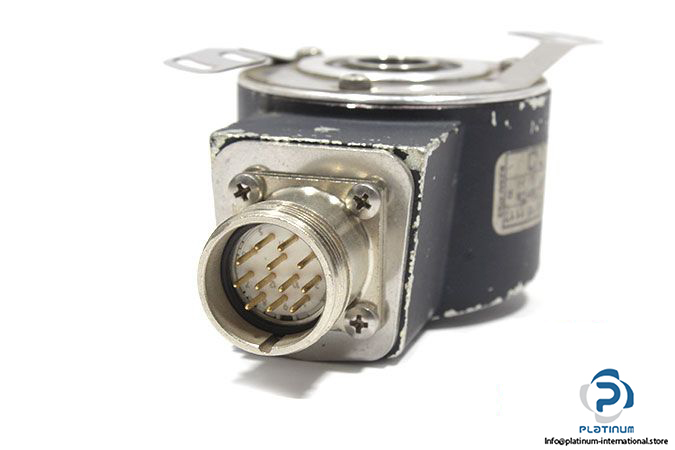

| Electrical Connection | 1 male connector M23 radial 12 pins |
| Type of Output Stage | SSI 25-bit gray |
| Output Frequency | 100 / 500 kHz |
