Telemecanique CA3KN22BD Control Relay
新着
在庫あり7 単位即納可能
Control Relay
Industrial control relay with 24 V DC coil, 4 NO/NC contacts, and high operational voltage rating, suitable for automation and control panel applications.
大量在庫
グローバル配送
専門的なサポート
品質保証

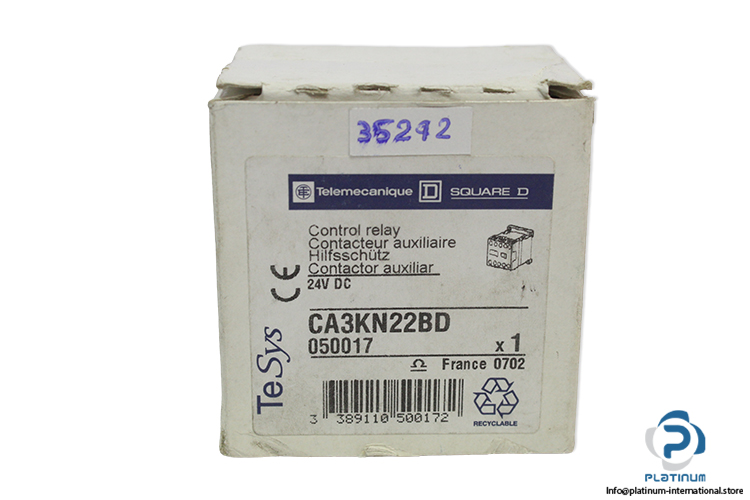

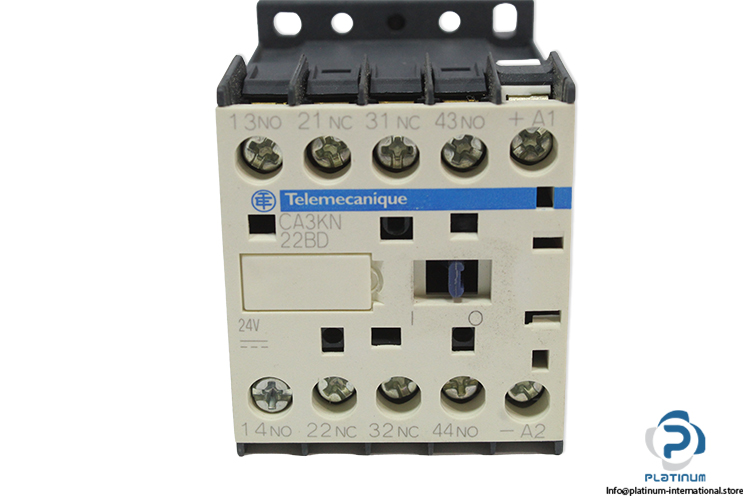

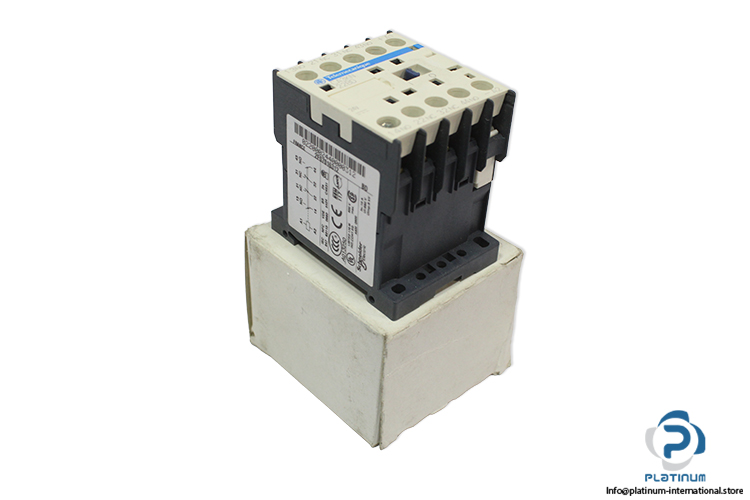

TELEMECANIQUE SCHNEIDER SQUARE D CA3KN22BD Control Relay
The TELEMECANIQUE SCHNEIDER SQUARE D CA3KN22BD control relay from the CA3K series is designed for reliable switching and control in industrial automation and electrical control circuits. It offers stable DC coil operation, multiple contact configurations, and dependable performance across a wide operating temperature range.
Manufacturer: TELEMECANIQUE SCHNEIDER SQUARE D
Type: Control Relay
Model: CA3KN22BD
Part No.: 050017
Series: CA3K
| Rated Coil Voltage (Uc) | 24 V DC |
| Rated Operational Voltage | 690 V AC |
| Rated Thermal Current (Ith) | 10 A |
| Frequency | 50 / 60 Hz |
| Rated Impulse Voltage (Uimp) | 8 kV |
| Number of Poles | 5-Pole |

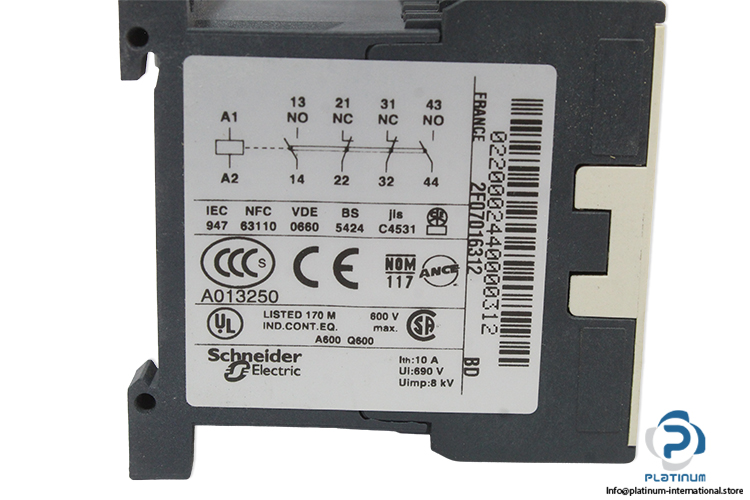

| Contact Configuration | 4-Pole (2 NO + 2 NC) |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Protection Class | IP2X |
| Ambient Temperature | -40 / 60 °C |
| Dimensions | 58 x 45 x 57 mm |
