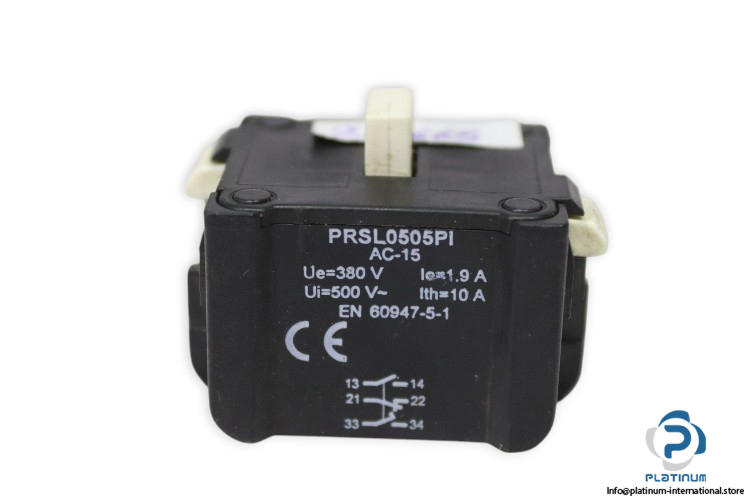

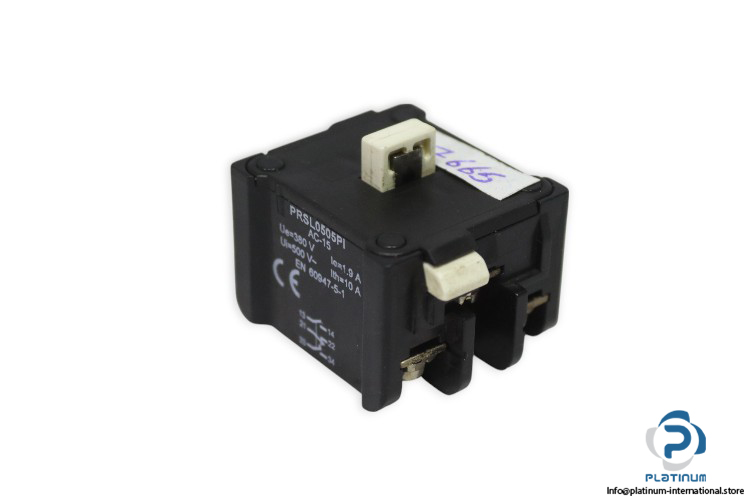

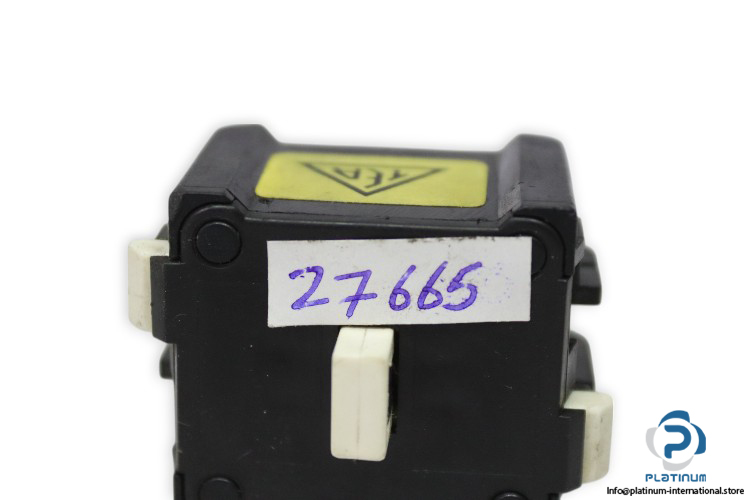

TER PRSL0505PI DEVICE SWITCH
Industrial-grade 2-speed device switch from TER, built for control systems that demand reliability, high insulation, and precise connection. With staggered contacts and robust screw-type terminals, it ensures dependable operation in demanding electrical environments.
Manufacturer: TER
Type: Device Switch
Model: PRSL0505PI
| Output Configuration | 1NO+1NC+1NO staggered |
| Rated Operational Current | 1.9 A |
| Rated Operational Voltage | 380 V AC |
| Rated Thermal Current | 10 A |
| Rated Insulation Voltage | 500 V AC |
| Connection | Screw-type terminals |
| Switch Type | 2 speeds |
| Wires | 1 x 2.5 mm², 2 x 1.5 mm² |
| Tightening Torque | 0.8 Nm |
