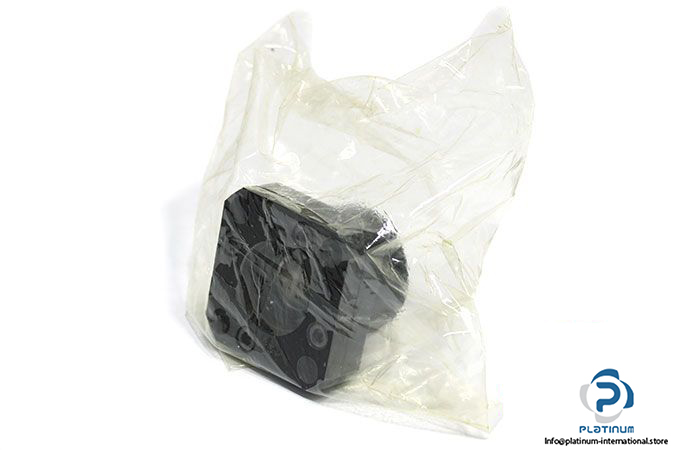

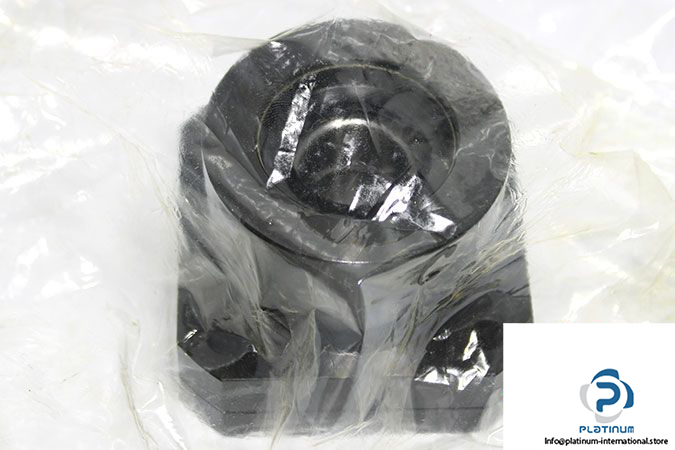

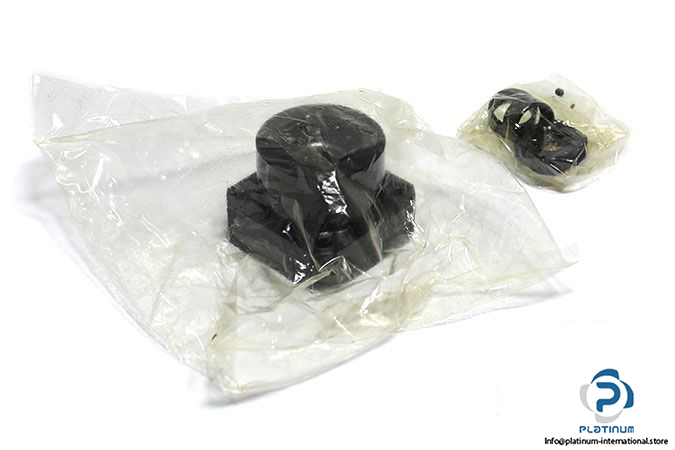

THK FK20 Support Unit

Manufacturer: THK

Type: Round Type Support Unit on the Fixed Side

MNR: FK 20



Shaft diameter: 20 mm

Suitable for screw with Shaft Ends shape H: Size 28, 30, 32

Bearings used: 7204 (DF P5)

Angular-contact ball bearing Load Ratings, axial:

Dynamic Load Capacity C_a: 17.9 kN

Permissible load: 9.5 kN

Rigidity: 170 N/mm

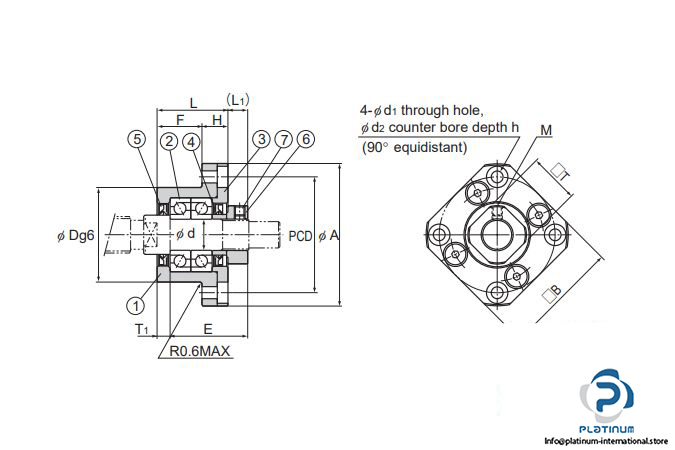

Housing Dimensions

L: 52 mm

B: 68 mm

Weight: 1.1 kg
