THK SHW17CR1UUM Linear Bearing Block
新着
在庫あり4 単位即納可能
Linear Bearing Block The THK SHW17CR1UUM linear bearing block is designed for smooth, accurate linear motion in industrial automation and machine applications. Its stainless steel construction provides durability, corrosion resistance, and reliable performance. Matching guide rails are also available upon request.
大量在庫
グローバル配送
専門的なサポート
品質保証

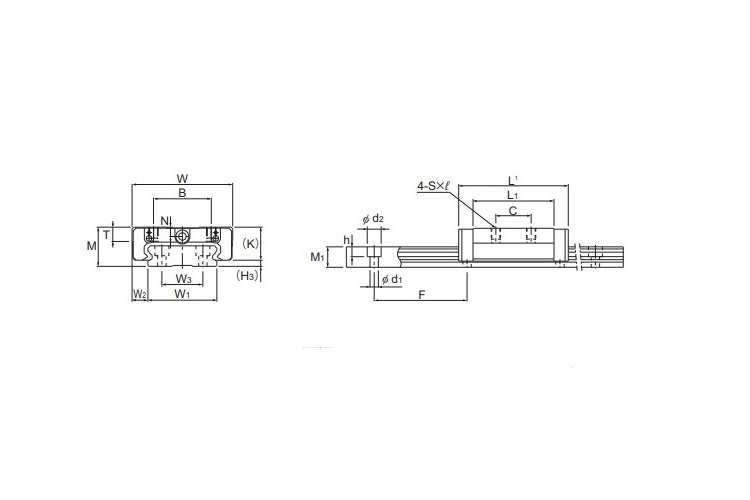

| Size | 17 |
| Length L | 51 mm |
| Width W | 50 mm |
| Height of Block K | 14.5 mm |
| Height of System M | 17 mm |
| B | 29 mm |
| C | 15 mm |
| Dynamic Load rating | 7.65 kN |
| Static Load rating | 10.18 kN |
| No. of LM blocks used on the same rail | 1 |
| Material | M, Stainless steel LM block |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
| Condition | New |
| Stock Key | CH001 |
| SKU | 1098061 |
| Weight | 0,13 |
