在庫あり1 ユニット即納可能

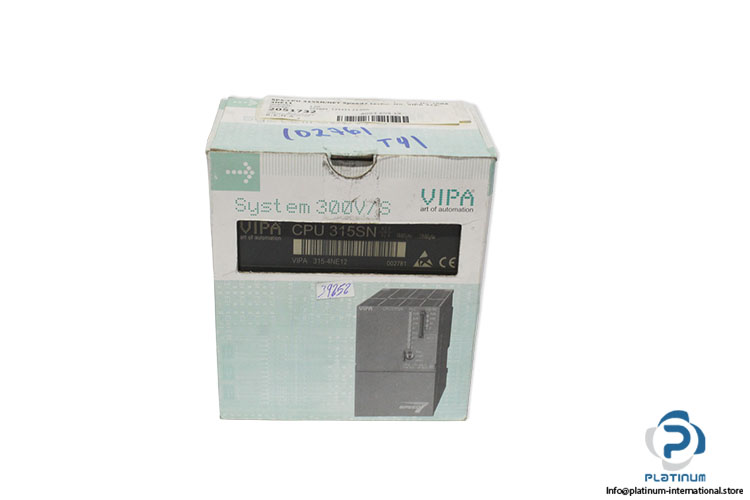

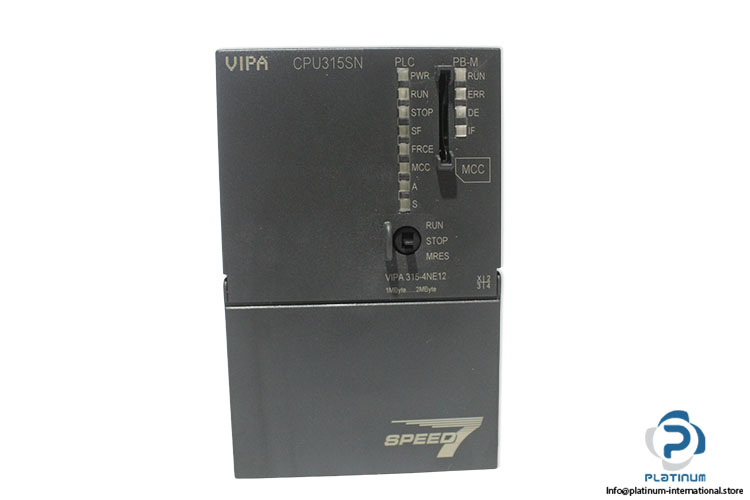

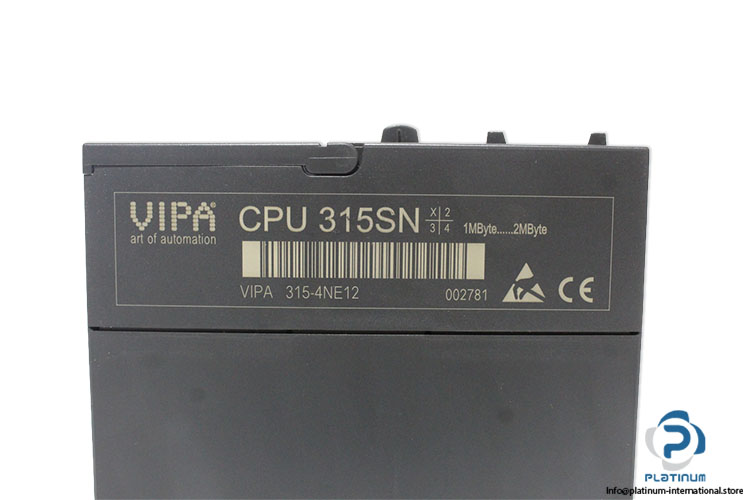

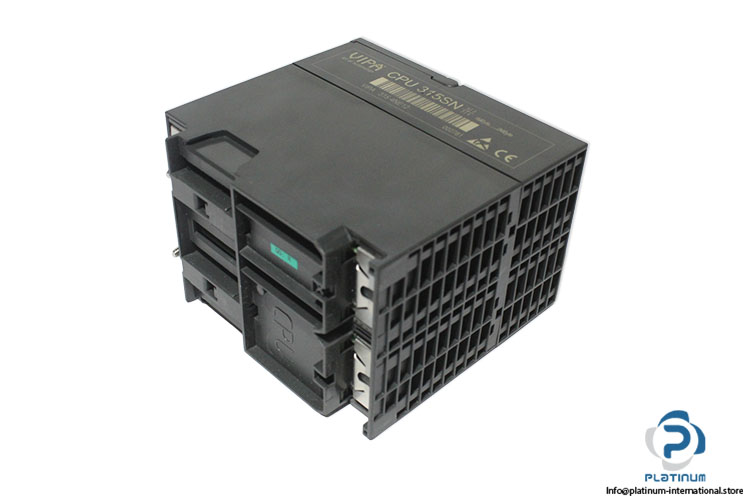

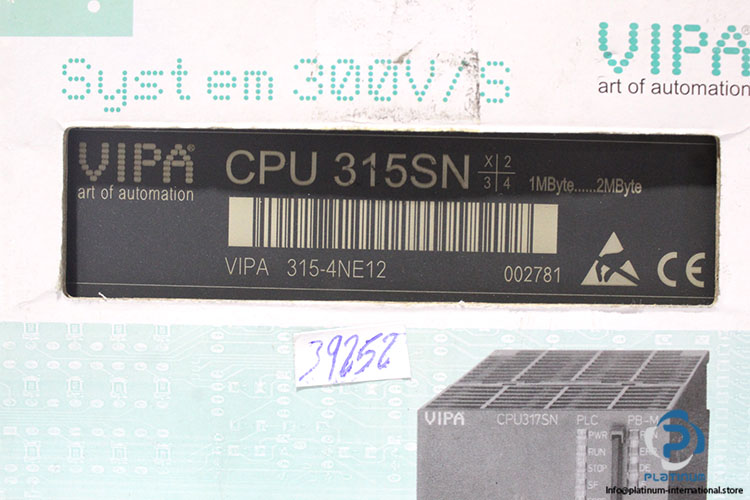

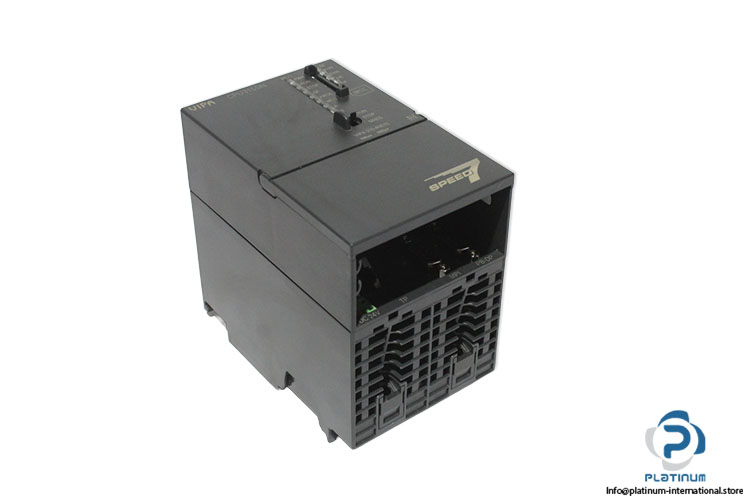

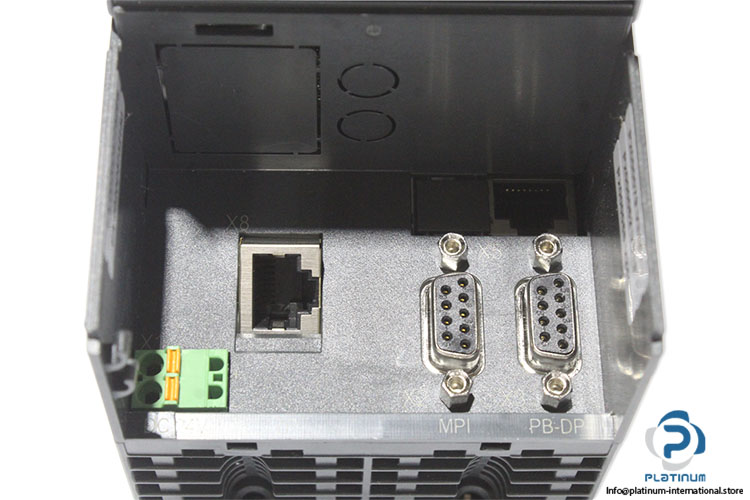

CPU The VIPA CPU 315SN 315-4NE12 is a high-performance industrial CPU featuring SPEED7 technology, expandable memory, PROFIBUS-DP, RS485, and integrated CP 343 communication.

メーカー
VIPA
SKU
1100810
カテゴリ
PLC Modules
コンディション
新着
中古 在庫あり 1 399,99$
この製品は中古でもご利用いただけます
中古バージョンを見る →
共有
大量在庫
グローバル配送
専門的なサポート
品質保証
Order Number315-4NE12
Code002781
FeaturesSPEED7 technology, 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated
Transfer memory inputs, max.244 Byte
Transfer memory outputs, max.244 Byte
Address areas, max.32
User data per address area, max.32 Byte
Type of interfaceRS485
ConnectorSub-D, 9-pin, female
Power Supply (Rated Value / Permitted Range)24 VDC / 20.4 / 28.8 VDC
Current Consumption (No-Load Operation)270 mA
Current Consumption (Rated Value)1 A
Inrush Current5 A
Power Loss8.5 W
Number of Integrated DP Master1
Number of DP Master viaCP 4
Operable Function Modules8
Operable Communication Modules PtP8
Operable Communication Modules LAN8
Operating Temperature0 / +60 °C
Dimensions80 x 125 x 120 mm
Stock keyCON003
ConditionNew
SKU1100810
Weight0,58
