Display Panel PC
VIPA YASKAWA 67S-PNJ0-EB features a 21.5-inch TFT color display, Intel Atom Dualcore processor, versatile connectivity, and IP20/IP65 protection for reliable industrial control.
大量在庫
グローバル配送
専門的なサポート
品質保証
VIPA YASKAWA 67S-PNJ0-EB Display Panel PC
The VIPA YASKAWA 67SPNJ0EB is a high-performance industrial display panel PC designed for automation and control applications. With its 21.5-inch TFT color display, robust processing power, and versatile connectivity, it provides reliable and efficient operation in demanding environments.
Manufacturer: VIPA YASKAWA
Type: Display Panel PC
Model: 67S-PNJ0-EB
| Supply Voltage | 24 V DC |
| Rated Current Consumption | 1.2 A |
| Display Type | TFT Color (16.7M Colors) |
| Screen Diagonal | 21.5 In |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| User Software | Movicon 11 CE Standard |

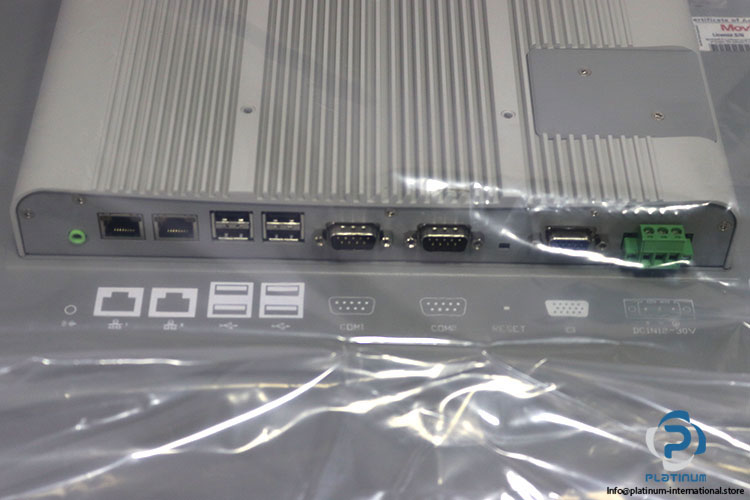

| Onboard Interface | 2x RS232/RS422/RS485, 4x USB-A, 1x VGA, 2x RJ45 (Ethernet), 1x Audio Out |
| Processor | Intel Atom Dualcore 1.86 GHz |
| Operating System | Windows Embedded Compact 7 |
| Connection | Male Connector Sub-D, 9-Pin |
| Protection Class | IP20 / IP65 |
| Ambient Temperature | 0 / 50 °C |
| Dimensions | 542 x 362 x 54.2 mm |
