Wago 286-723 Optocoupler Module
中古
在庫あり27 単位即納可能
Optocoupler Module
The WAGO 286-723 is a pluggable optocoupler module with 24 VDC input, IP20 protection, and compact design, ideal for signal isolation in industrial control systems.
大量在庫
グローバル配送
専門的なサポート
品質保証

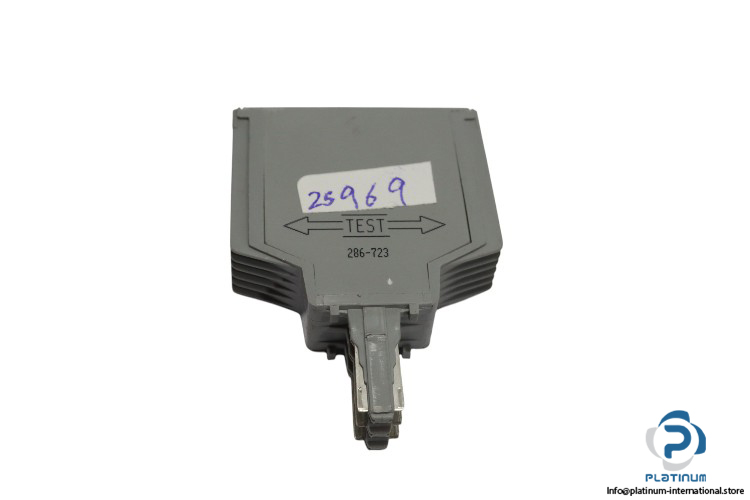

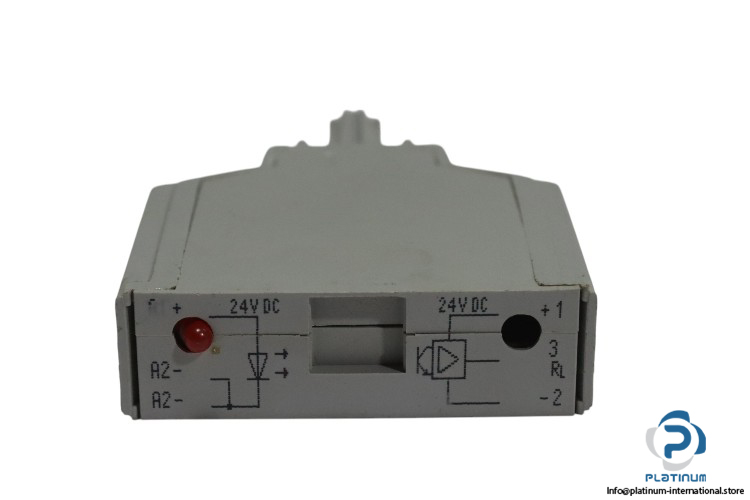

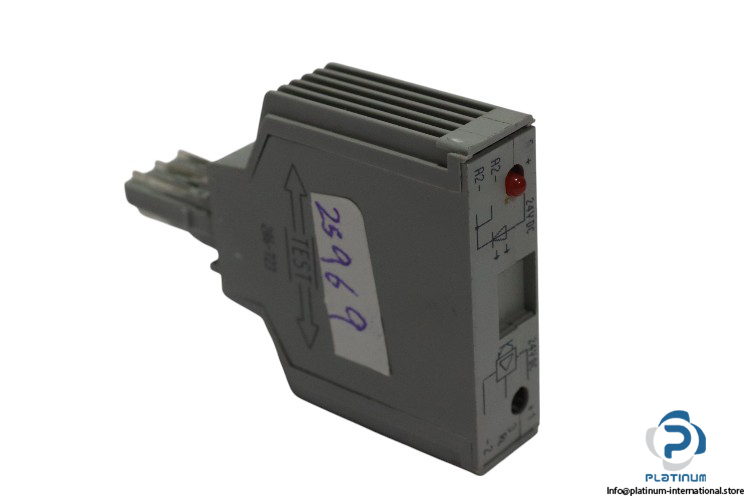

WAGO 286-723 Optocoupler Module
The WAGO 286-723 is a compact optocoupler module designed to provide electrical isolation between control and load circuits. It ensures safe and efficient signal transfer, making it ideal for industrial automation systems and signal interface applications.
Manufacturer: WAGO
Type: Optocoupler Module
Model: 286-723
| Nominal Input Voltage (UN) | 24 VDC |
| Input Voltage Range (High Level) | 15 / 30 VDC |
| Nominal Input Current at UN | 14 mA |
| Input Current Range | 7.6 / 15 mA |
| Mounting Type | Pluggable module for receptacle terminal blocks |
| Protection Type | IP20 |
| Color | Gray |
| Ambient Temperature (Operation at UN) | -25 / +40 °C |
| Dimensions (H x W x D) | 52 x 15 x 82.5 mm |
