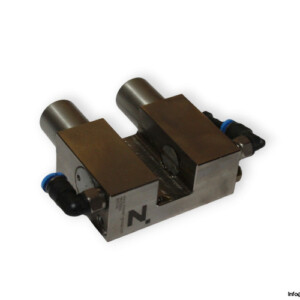

Zimmer MK 2001 A Clamping Element
ZIMMER MK 2001A Clamping Element
The ZIMMER MK 2001A Clamping Element is a high-performance clamping solution designed for secure holding and precise positioning. Engineered for industrial applications, it delivers a holding force of 1000 N while operating at a nominal pressure of 6 bar. Its compact dimensions and top-mount installation make it ideal for space-constrained environments.
- Manufacturer: ZIMMER
- Type: Clamping Element
- Model: MK 2001A
- MNR: JG/87168
Technical Specifications
- Holding Force: 1000 N
- Nominal Operating Pressure: 6 bar
- Installation Direction: From Above
- Max. Length Clamping: 39 mm
- Operating Pressure Min.: 2 bar
- Operating Pressure Max.: 6.5 bar
- Dimensions: 66 x 25.5 x 30 mm
- Port Size: 5 mm
