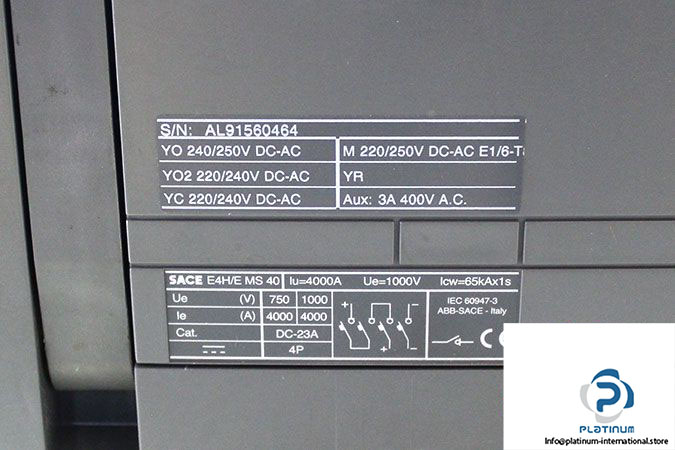

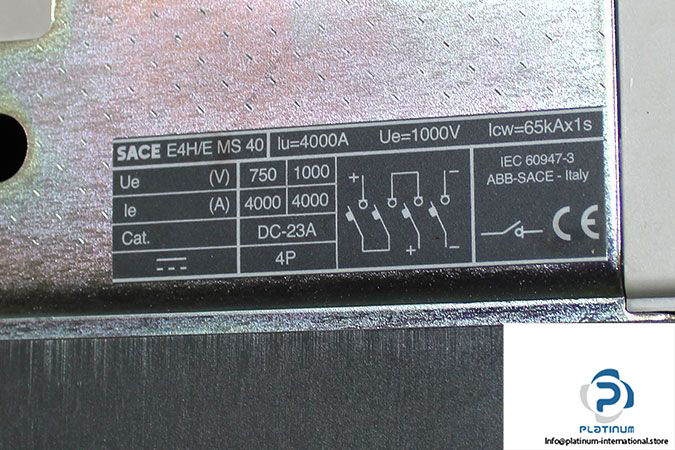

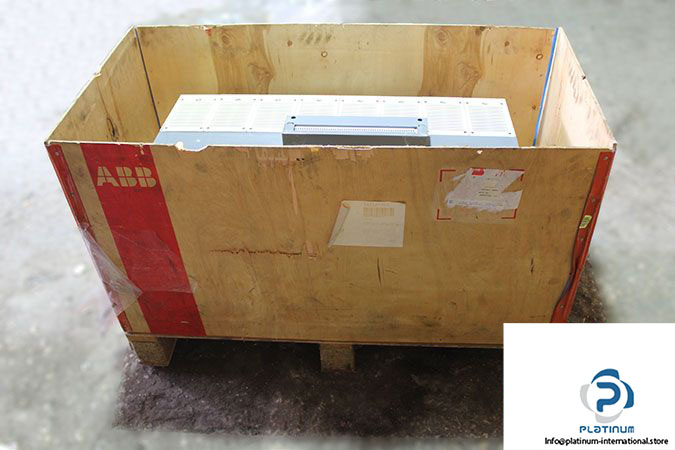

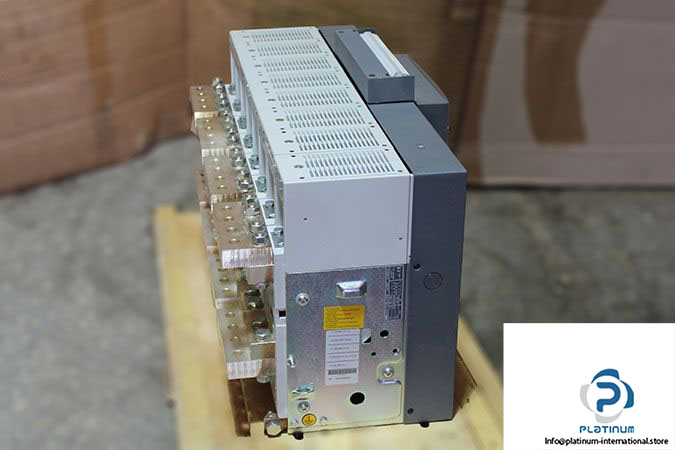

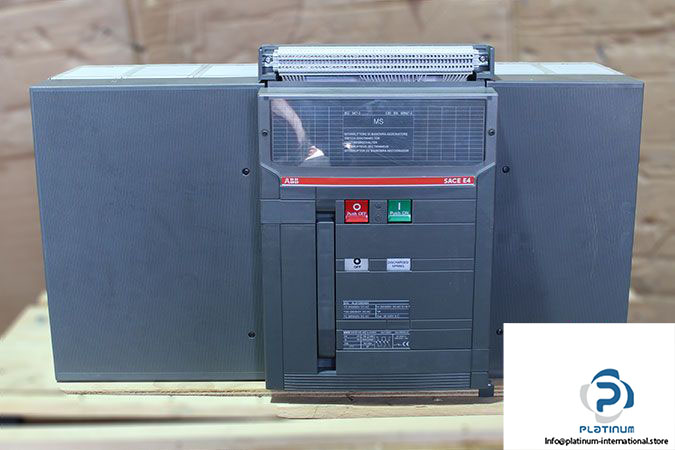

ABB Sace E4H/E MS 40 AIR Circuit Breaker

Manufacturer: ABB

Type: Air Circuit Breaker

Series: SACE Emax

Family: SACE E4

Model: SACE E4H/E MS 40

Number of Poles: 4

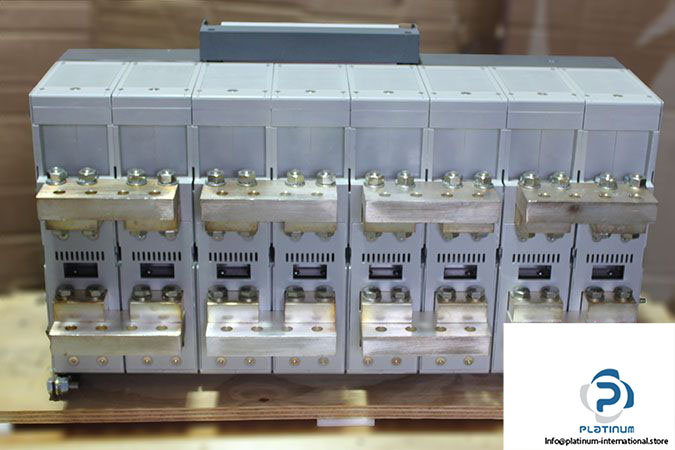

Terminals: Fixed, HR: Horizontal Rear Terminals

Rated Uninterrupted Current (I_u): 4000 A

Rated Service Voltage (U_e): 1000 V DC

Rated Insulation Voltage (U_i): 1000 V

Rated Impulse Voltage (U_imp): 8 kV

Rated Short-Time Withstand Current I_cw (1s): 65 kA

Standards: IEC 60947-3

Dimensions (W x D x H): 418 x 310 x 310 mm

Operating Temperature: -25 … 70 °C

Weight: 150 kg
