32X5RX215 Ball Screw
중고
재고 있음1 단위즉시 배송 가능

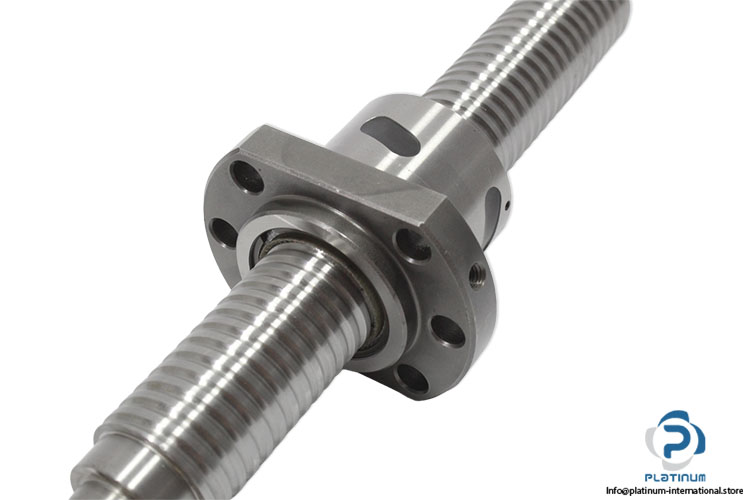

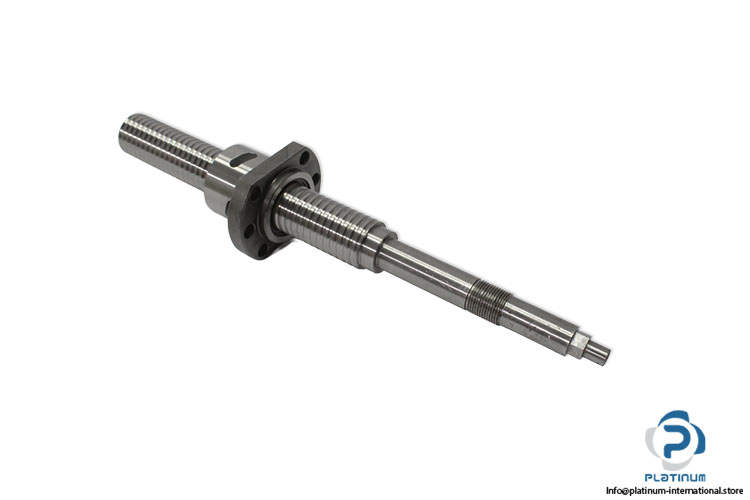

Ball Screw Precision 32X5RX215 ball screw featuring a 32 mm nominal diameter, 5 mm lead, right-hand thread, and compact flange nut design for linear motion and industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Size | 32X5R |
| Nominal Diameter | 32 mm |
| Lead P | 5 |
| Number of starts | 1 |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 50 mm |
| Flange diameter | 80 mm |
| Flange thickness | 12 mm |
| Cutting Flange Width | 62 mm |
| Nut length | 54 mm |
| Threaded length | 215 mm |
| Total screw length | 365 mm |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100118 |
| Weight | 2,2 |
