ABB CR-M024DC2L Miniature Interface Relay
신제품
재고 있음4 단위즉시 배송 가능
INTERFACE RELAY
ABB CR-M024DC2L miniature interface relay with 24 V DC coil, 250 V AC rating, 2 SPDT contacts, plug-in connection, socket mounting, IP40 protection, and compact dimensions.1SVR405611R110024vABBAutomationcoilContactCR-M024DC2LdcIndustrialInterfaceIP40MiniaturemountRelaySocketSpdt
방대한 재고
글로벌 배송
전문 지원
품질 보장

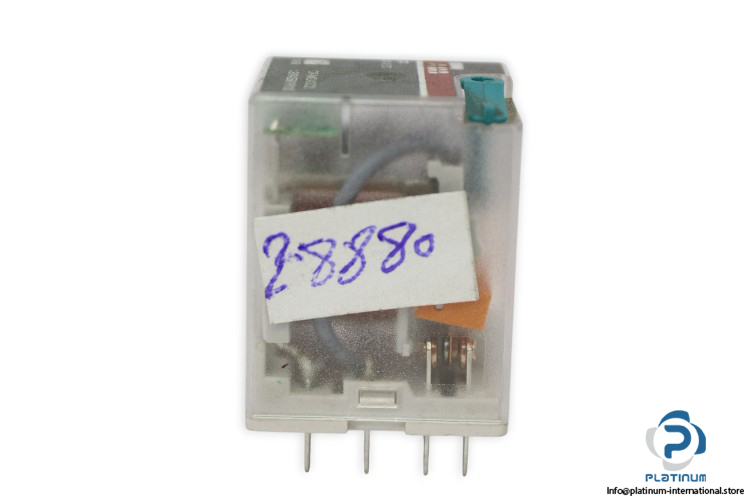

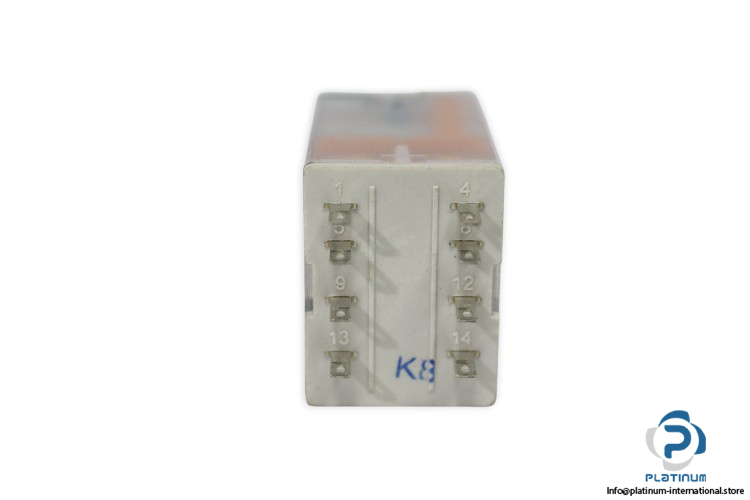

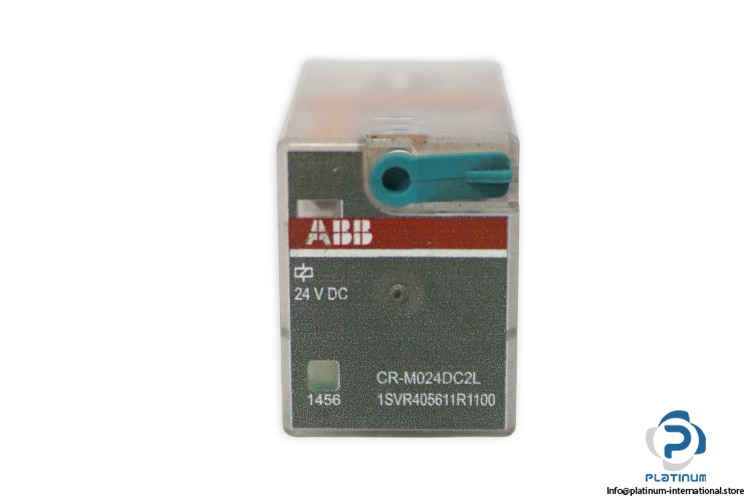

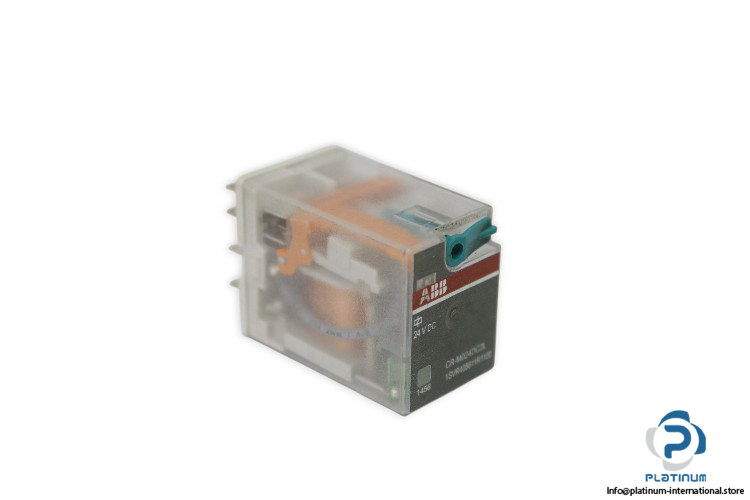

ABB CR-M024DC2L Miniature Interface Relay
The ABB CR-M024DC2L is a compact and reliable miniature interface relay designed for industrial automation and control systems. With robust performance across AC and DC loads, plug-in connection, and socket mounting, it ensures safe and efficient operation in demanding environments.
Manufacturer: ABB
Type: Miniature Interface Relay
Model: CR-M024DC2L
Product ID: 1SVR405611R1100
Code: 1456
| Voltage | 24 V DC |
| Rated Operational Voltage | 250 V AC |
| Rated Operational Current AC-12 | (230 V) 12 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A / (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 12 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A / (250 V) 0.1 A |
| Frequency | 50 / 60 Hz |
| Output Ratings AC-15 | 240 V, 1 A |
| Contact | 2 c/o (SPDT) contacts |
| Type of Electric Connection | Plug-In Connection |
| Mounting | Socket |
| Protection Class | IP40 |
| Temperature Range | -40 / +70 °C |
| Dimensions | 27.5 x 21.2 x 35.6 mm |
