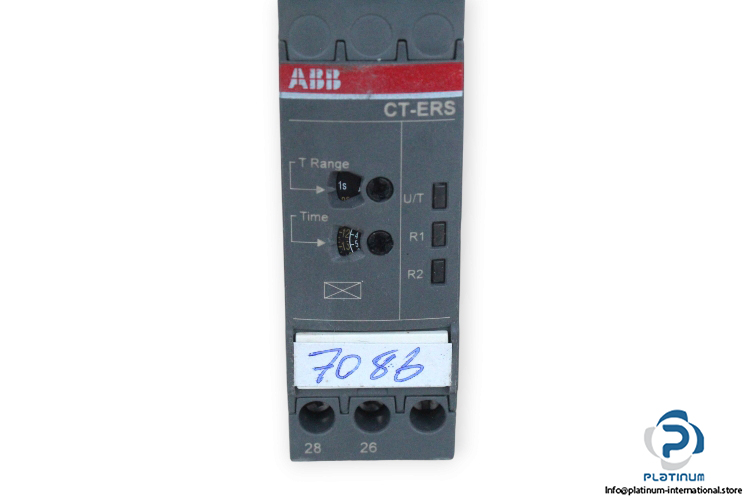

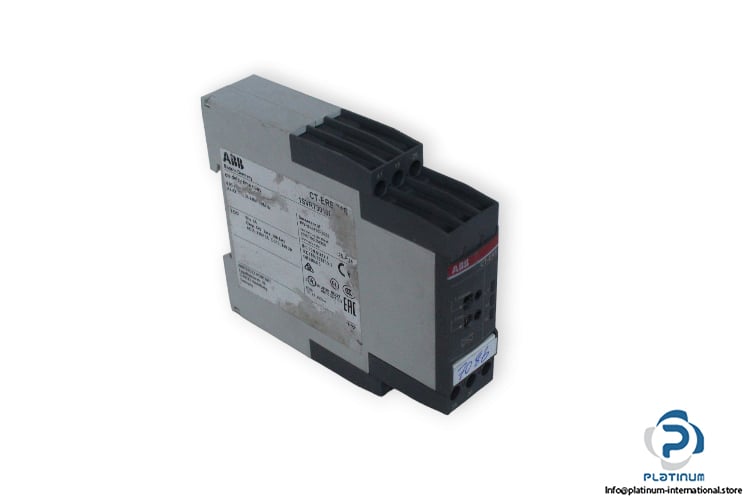

ABB CT-ERS.21S Electronic Timer

Manufacturer: ABB
Type: Electronic Timer
Model: CT-ERS.21S

Rated control supply voltage: 24-240 V AC/DC
Frequency: 50/60 Hz
Rated Operational Voltage: Auxiliary Circuit 250 V
Time ranges: 0.05 s – 300 h
Contact: 2 C/O
Terminal Type: Screw Terminals
Minimum Switching Capacity: 12 V, 10 mA
Rated Operational Current AC-12 (Ie): (230 V) 4 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-12 (Ie): (24 V) 4 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Temperature Range: -25 … 60°C
Degree of Protection: Housing IP50, Terminals IP20
Dimensions: 22.5 x 85.6 x 103.7 mm
