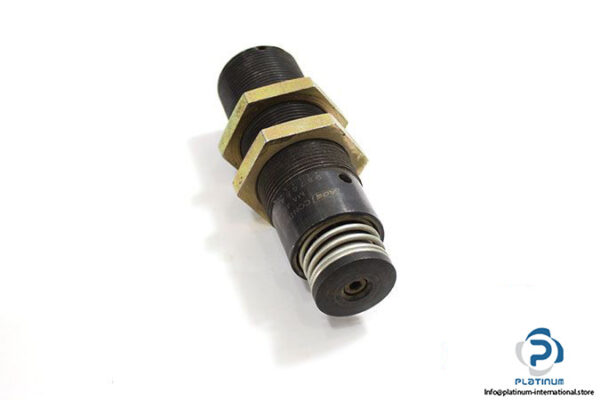

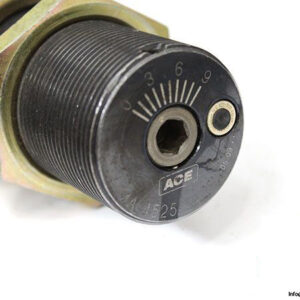

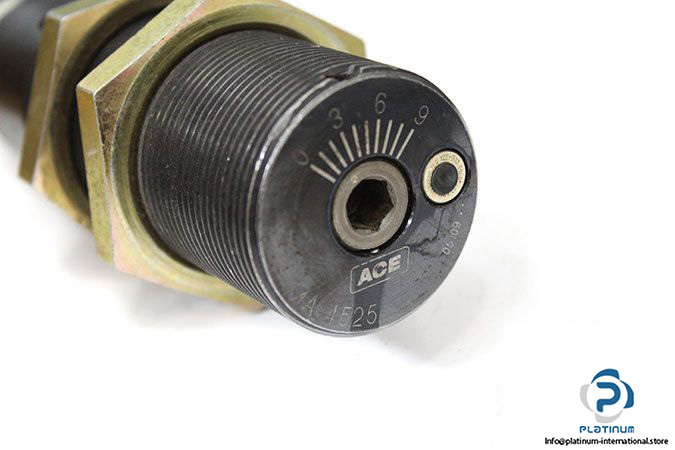

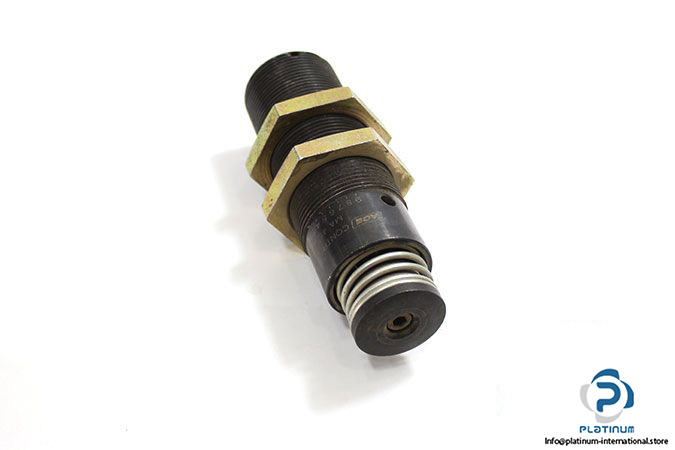

ACE Controls MA 4525 Shock Absorber

Manufacturer: ACE CONTROLS

Type: ADJUSTABLE SHOCK ABSORBER

Model: MA 4525



APPLICATION AREAS:

• Linear Slides
• Swivel Units
• Turntables
• Portal Systems
• Machines And Plants
• Tool Machines
• Machining Centres

Energy capacity per Cycle: 3,762 in-lbs/cycle

Energy capacity per hour: 950,000 in-lbs/h

Min. Effective weight: 95 lbs

Max. Effective weight:  22,000 lbs

Max. Return Force: 22.8 lbs

Min. Return Force: 15.1 lbs

Return Time: 0.03 s

Impact Velocity:  0.5 ft/sec … 16.5 ft/sec

Material

   Outer Body: Nitride Hardened Steel

   Piston Rod: Hard Chrome Plated Steel

   Return Spring: Zinc Plated Or Plastic-Coated Steel

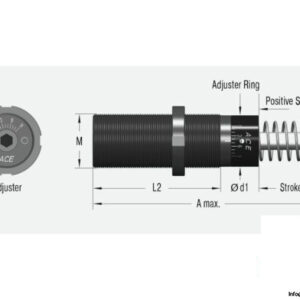

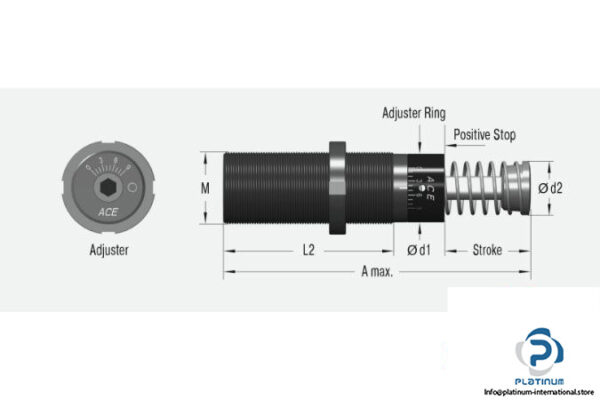

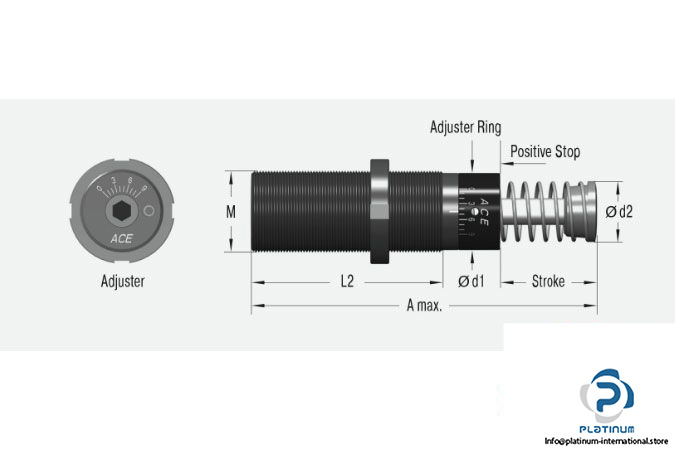

Stroke Length:  0.91 in ( 23.114 mm )

Piston Diameter (d2): 35 mm

Length (L2): 94.4 mm

Diameter (M): 25.4 mm

Temperature Range: -12 … 66 ^°C

Weight: 1.12 kg
