Motion Control Rotary Encoders

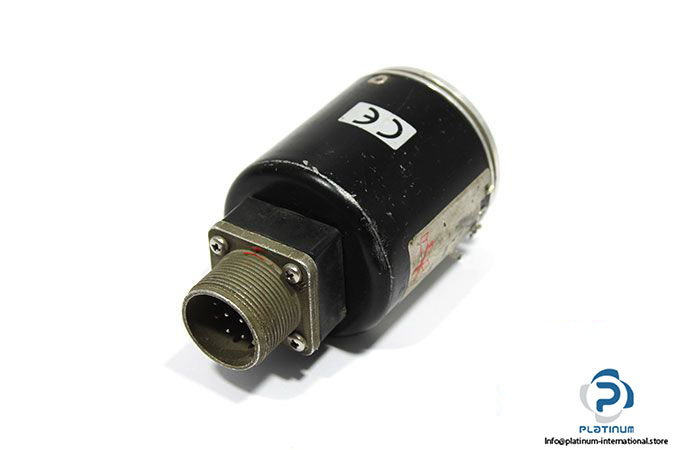

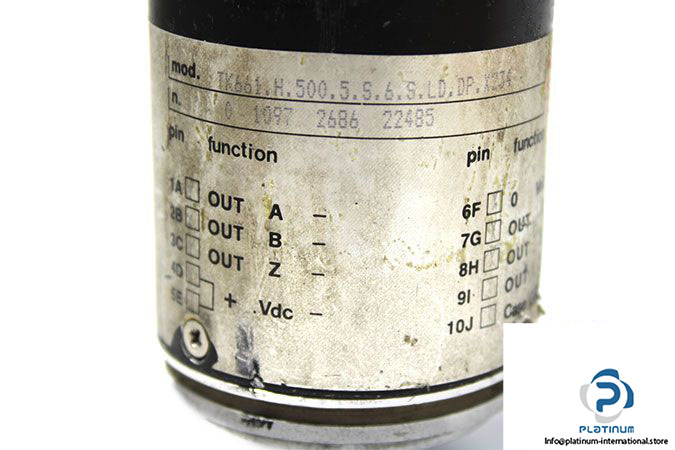

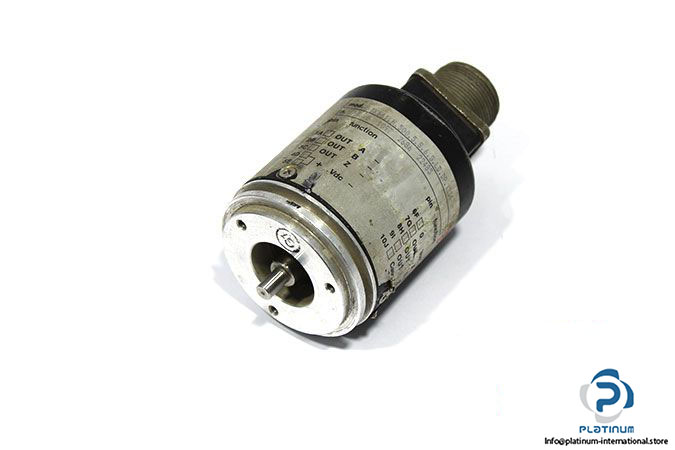

Tekel TK661.H.500.5.S.6.S.LD.DP.X234 Incremental Optical ‎Encoder

Name: TEKEL TK661.H.500.5.S.6.S.LD.DP.X234 INCREMENTAL OPTICAL ‎ENCODER
Brand: ITALSENSOR TEKEL
SKU: 986706
Availability: LimitedAvailability

tekel-tk661-h-500-5-s-6-s-ld-dp-x234-incremental-optical-encoder-1

tekel-tk661-h-500-5-s-6-s-ld-dp-x234-incremental-optical-encoder-2

tekel-tk661-h-500-5-s-6-s-ld-dp-x234-incremental-optical-encoder-3

중고

재고 있음1 단위즉시 배송 가능

INCREMENTAL ENCODER Italsensor TEKEL TK661는 견고한 6mm 샤프트, 서보 플랜지 장착 및 최대 100kHz 고주파 출력이 가능한 500 ppr 광학 인코더로, 정밀한 산업용 모션 피드백에 적합합니다.

제조업체

ITALSENSOR TEKEL

SKU

986706

카테고리

Rotary Encoders

상태

중고

500 6 Connector Control Encoder Flange Frequency High Incremental Italsensor M28 mm Motion Optical PPR Sensor Servo shaft Tekel TK661

방대한 재고

글로벌 배송

전문 지원

품질 보장

ITALSENSOR TEKEL TK661.H.500.5.S.6.S.LD.DP.X234 INCREMENTAL OPTICAL ENCODER

Engineered for high precision and stable signal output, the Italsensor TEKEL TK661 is a robust incremental optical encoder suitable for demanding industrial applications. Its compact servo flange design and 500 ppr resolution ensure accuracy and reliability in motion feedback systems.

Manufacturer: Italsensor TEKEL

Type: Incremental Optical Encoder

Model: TK661.H.500.5.S.6.S.LD.DP.X234

Part No.: 0 1097 2686 22485

Shaft Type	Solid Shaft
Shaft Size	6 mm
Pulse	500 ppr
Power Supply	+5 V ±5 %
Output Frequency	From 0 up to 100 kHz
Assembly	Servo flange (Ã˜ 58/60 mm)
Operating Temperature	-10 / 70 °C

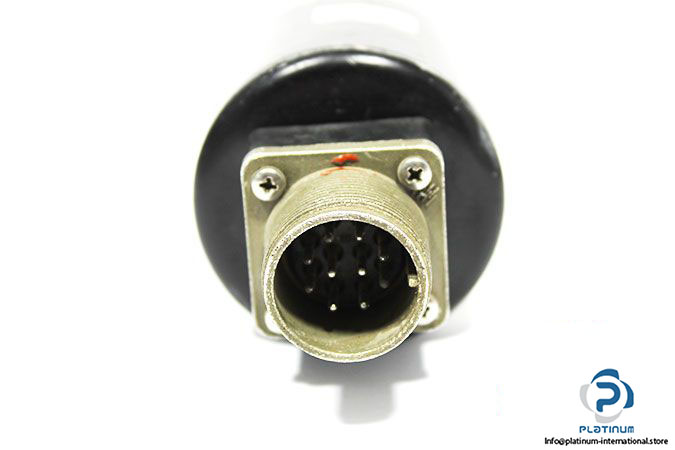

Electrical Connection	Male Connector, M28, 10-pin
