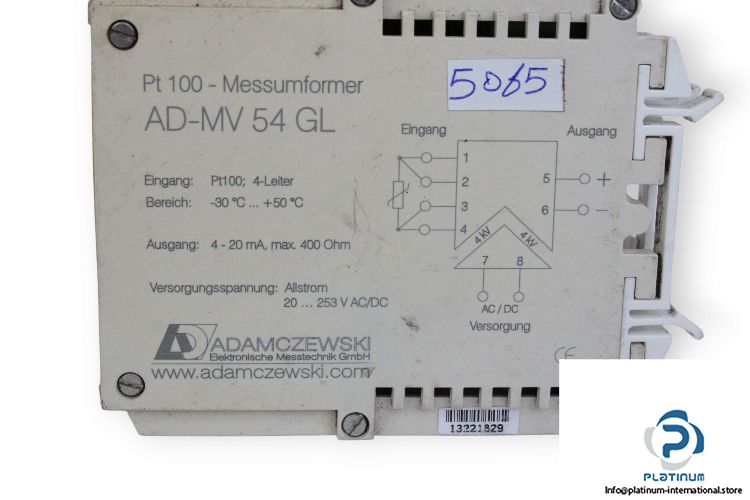

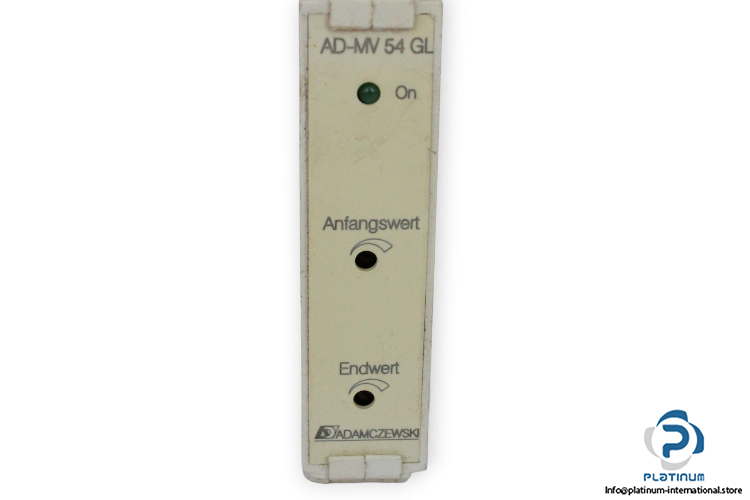

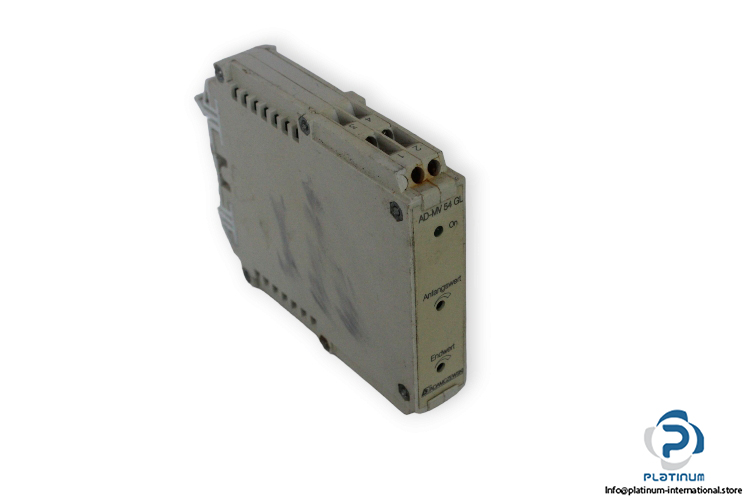

Adamczewski AD-MV 54 GL PT100 Converter
중고
재고 있음1 단위즉시 배송 가능
33,33$
Pt100 변환기
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Adamczewski
Type: Pt100 Converter
Model: AD-MV 54 GL
Application
Temperature measuring with Pt 100 temperature transmitter for continuous transformation of temperature variables to analogue signals
Specification
• Pt 100 conversion into standard signals
• current output
• Wide range power supply
• Conversion 4-wire technology possible
Supply Voltage: 20 … 253 V AC/DC
Output current: 4 … 20 mA
Max. Output burden: 400 Ohm
Response time: ~ 50 ms
Degree of protection: IP 20
Connection method: screw clamp
Ambient temperature: -30 … 50 °C
Pollution degree: 2
Dimensions (WxHxD): 18 x 81 x 103 mm
