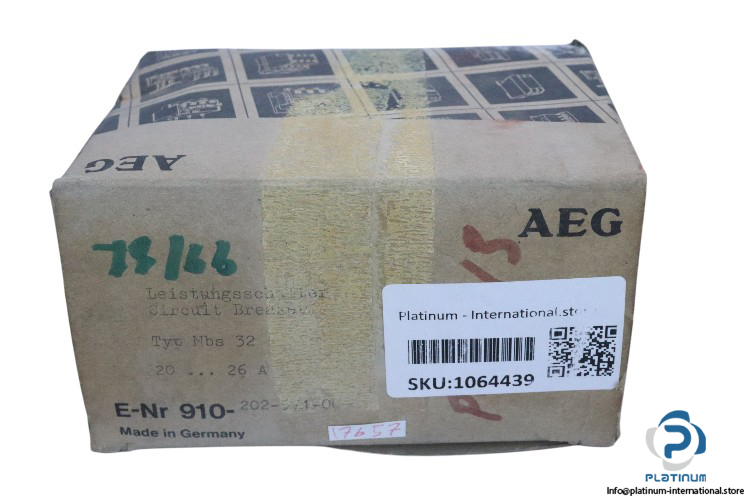

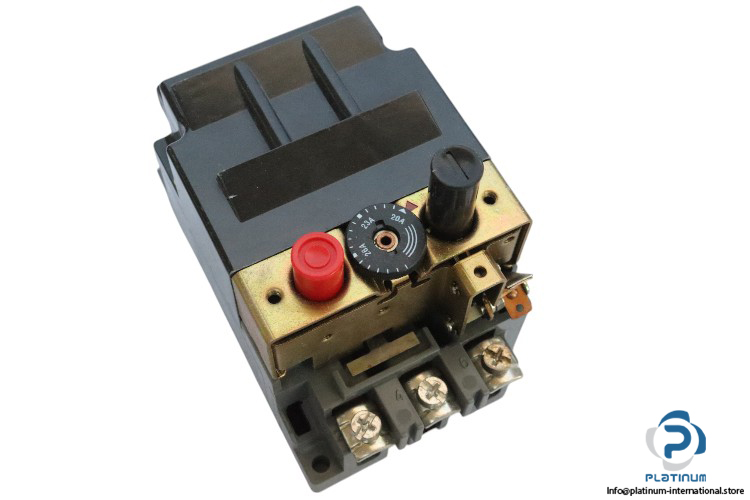

AEG 910-202-571 Motor Circuit Protector
신제품

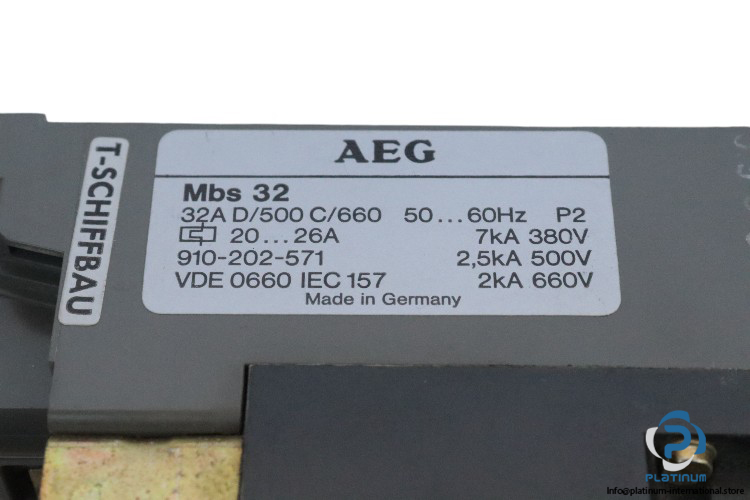

AEG Motor Circuit Protector MBS 32
AEG Motor Circuit Protector MBS 32 is designed to protect motors from overloads and short circuits. Built with high-performance standards, it ensures reliable protection for motor circuits in industrial applications. Below are the key technical specifications:
- Manufacturer: AEG
- Type: Motor Circuit Protector
- Model: MBS 32
- Part No.: 910202571
Technical Data:
- Number of Poles: 3
- Rated Nominal Current (In): 32 A

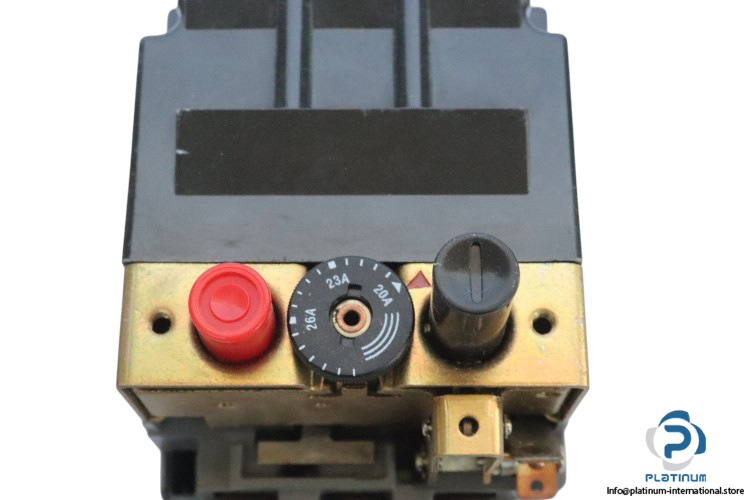

- Release Current Range: 20 to 26 A
- Rated Insulation Voltage (Ui): 690 V
- Rated Operating Voltage (Ue): 690 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Frequency: 50 to 60 Hz
- Standard: VDE 0660, IEC 157
- Total Power Loss (P):
- At 0.16 to 25A: 7W
- At 32A: 8.5W
- Operation Temperature: -25 to 60°C
- Protection Degree: IP20
- Terminal Type: Screws
- Tightening Torque: 2 Nm / 18 Lb.in
- Handle Operation: Rotary Drive
- Dimensions (H x W x D): 90 x 45 x 75 mm
