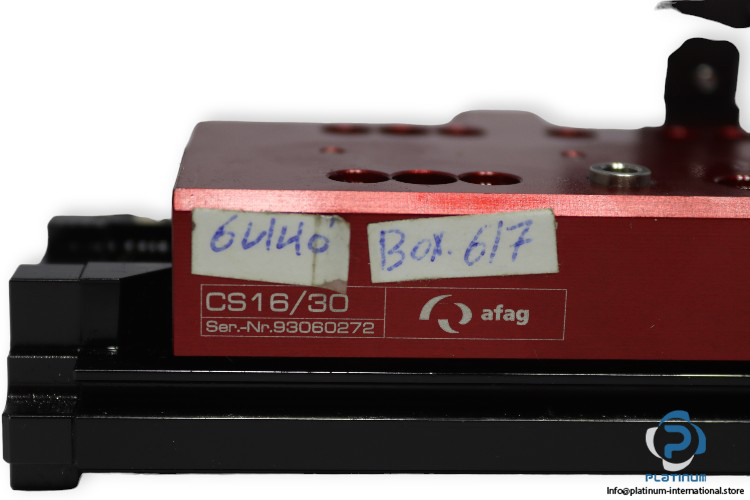

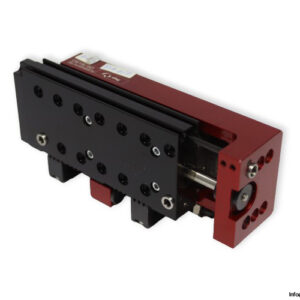

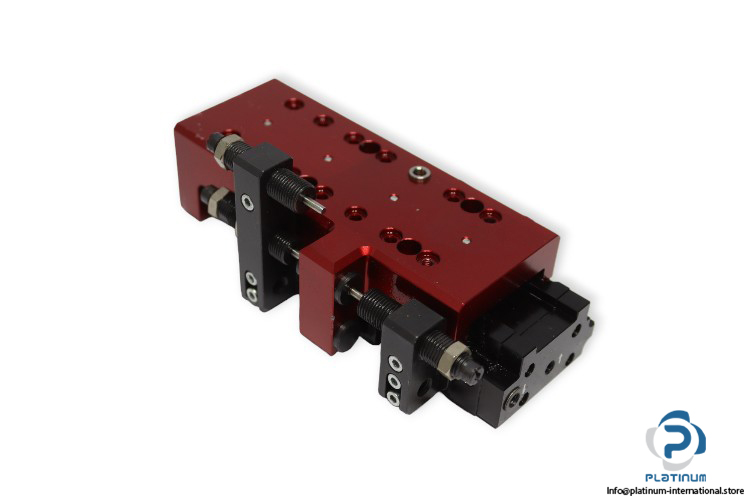

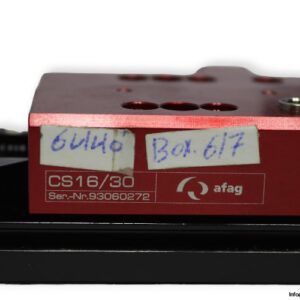

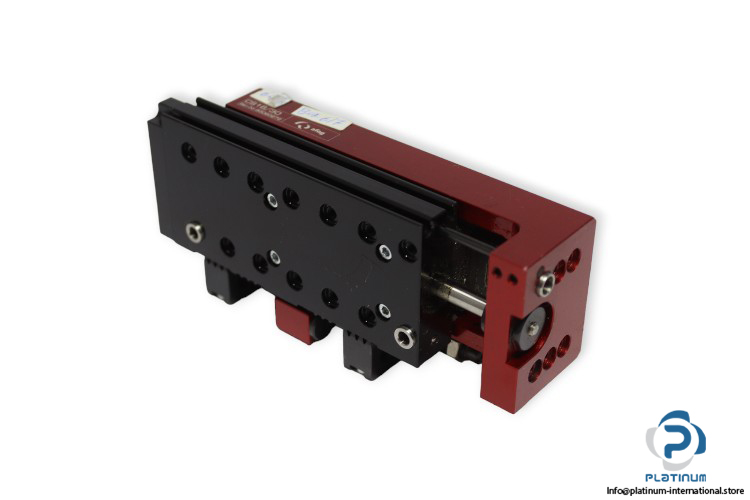

Afag CS16/30 Compact Slide

Manufacturer: AFAG
Type: Compact Slide
Model: CS16/30
Order No.: 50167742

Fluid: Medium filtered compressed air
Cylinder Diameter: 16 mm
Stroke: 30 mm
Attachment Thread: M4
Attachment Grid: 30 x 30 mm
Working Pressure: 6 +/- 2 bar
Retract piston force: 103 N
Pneumatic Connection: M5
Air Consumption per Cycle: 0.0554 NL
Max. Speed: 1 m/s
Ambient Temperature Range: 0… 50°C
