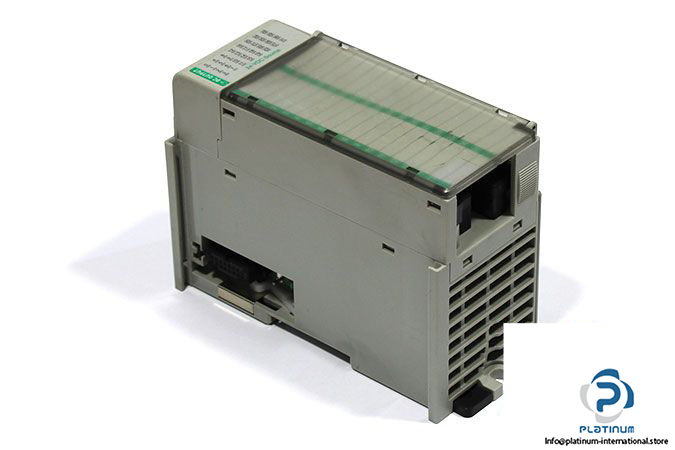

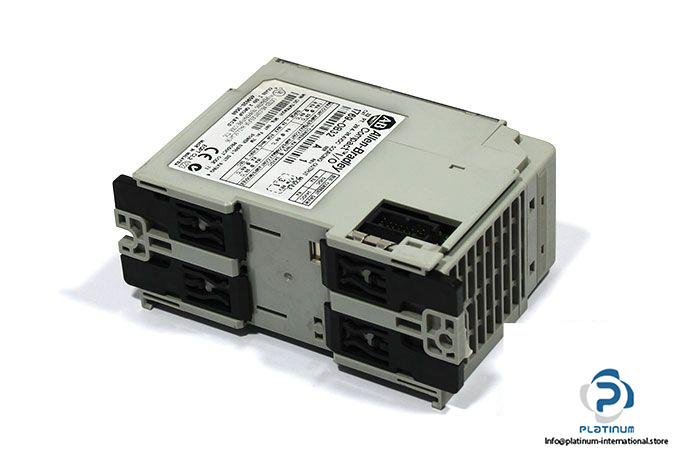

Allen-Bradley 1769-OB32 A Digital Output Module

요청 시 제공 가능

250,00$

Digital Output Module Allen-Bradley 1769 OB32 compact I/O digital output module with 32 output points, fast switching response, and reliable performance for industrial PLC and automation applications.

제조업체
ALLEN-BRADLEY
SKU
984156
카테고리
PLC Modules
상태
중고
신제품 재고 있음 255,55$
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

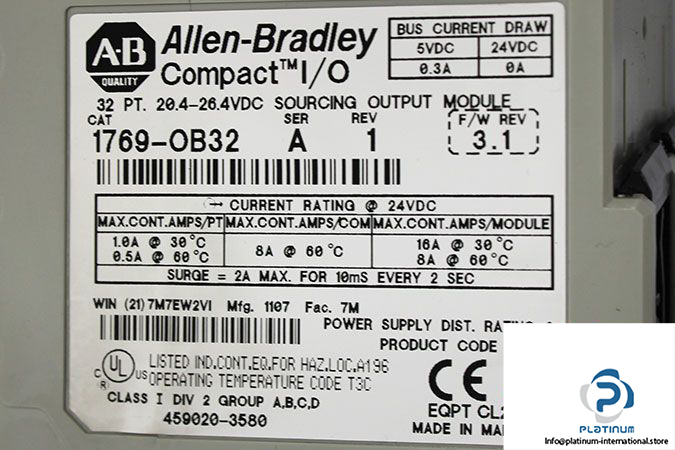

Part No.459020-3580
F/W Rev.3.1
SeriesA
CodeWIN (21) 7M7EW2VI
Operating Voltage Range10…30 VDC
No. of digital Outputs (DO)32
Bus Current Draw (max.)300 mA at 5V dc (1.5W)
Heat Dissipation, Max4.5Total Watts
Signal Delayon=0.1 ms / off=1 ms
Off-State Leakage, Max1.0 mA at 26.4V dc
On -State Voltage, Max1.0V dc at 1.0 A
On-State Current, Min1 mA
Vibration10…500 Hz
CertificateCE, cULus
Operating Temperature0…60 °C
Dimensions118 X 87 X 52.5 mm
ConditionUsed
SKU984156
Weight0,32
