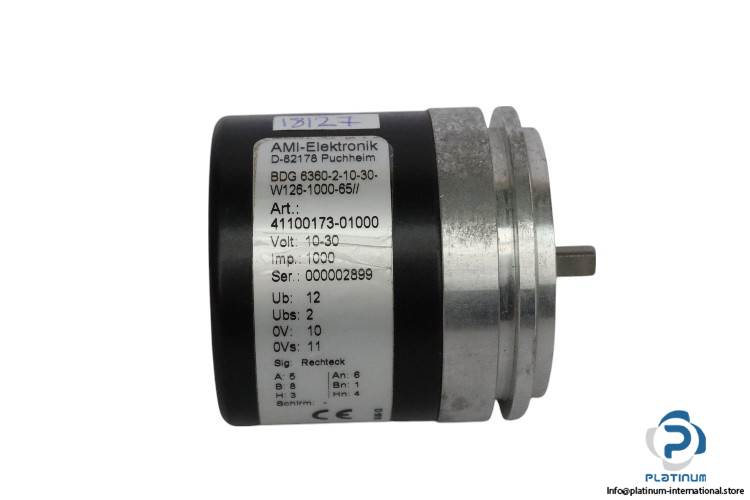

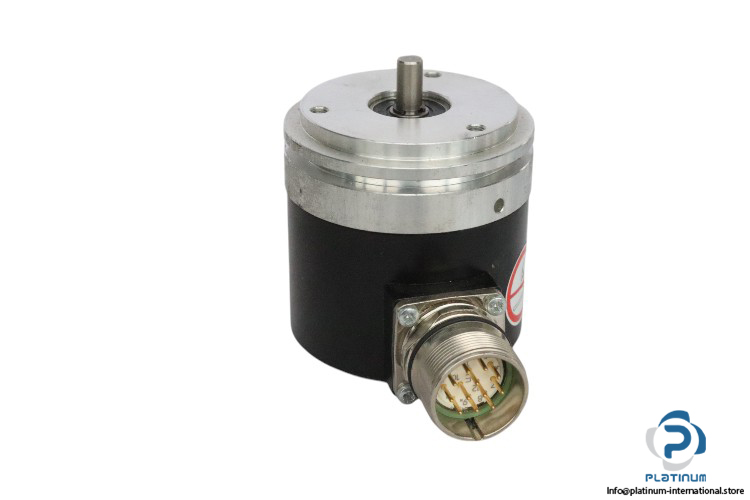

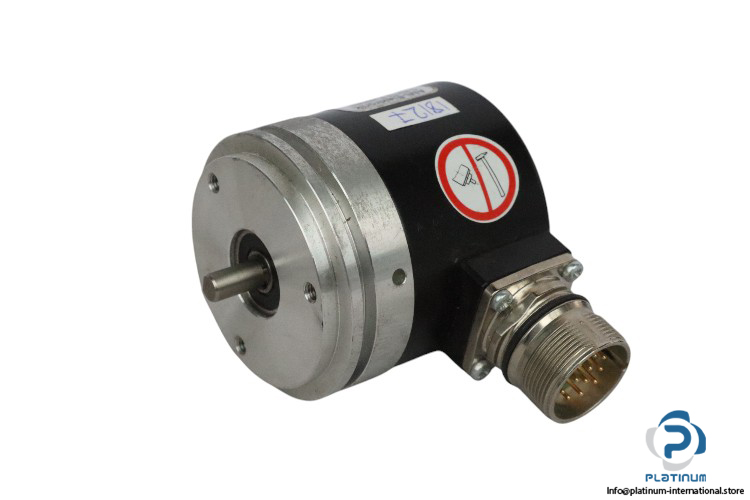

AMI BDG 6360-2-10-30-W126-1000-65 Incremental Encoder
고정축을 가진 산업용 증분 인코더, 회전당 1000펄스, IP64 보호 등급, 12핀 커넥터 포함. 정밀한 모션 제어 응용을 위해 설계됨.
AMI Elektronik BDG6360-2-10-30-W126-1000-65 Incremental Encoder
The AMI Elektronik BDG6360-2-10-30-W126-1000-65 is a high-precision incremental encoder designed for industrial applications requiring accurate position and speed measurement. With a durable solid shaft and high-resolution output, this encoder ensures reliable performance in demanding automation environments.
Key Details:
Manufacturer: AMI Elektronik
Type: Incremental Encoder
Model: BDG6360-2-10-30-W126-1000-65
Article Number (Art No.): 41100173-01000
Designed for industrial motion control applications, this incremental encoder provides high-resolution feedback with robust environmental protection, making it ideal for automation, robotics, and manufacturing systems.
| Shaft Type | Solid Shaft |
| Operating Voltage | 10 to 30 V DC |
| Output Current | 20 mA |
| Max. Pulse Frequency | 300 kHz |
| Shaft Diameter | 10 mm |
| Resolution | 1000 Impulse/turn |
| Protection Degree | IP64 |
| Housing Diameter | 58 mm |
| Flange | 63.5 mm |
| Signal Output | Square wave, Sinusoidal |
| Connection | Connector 12-pins |
| Working Temperature | 0 to +80 °C |
