Pneumatic System Pneumatic Flow Control Valves

Asahi NSF-61 Ball Check Valve

Name: ASAHI NSF-61 BALL CHECK VALVE
SKU: 1095457
Availability: LimitedAvailability

중고

재고 있음3 단위즉시 배송 가능

Asahi / America Omni NSF-61 PVC 볼 체크 밸브로 EPDM 씰, 3/8 인치 포트 크기, 150 psi 압력 등급을 갖추어 산업용 온/오프 유량 제어에 적합합니다.

제조업체

ASAHI

SKU

1095457

카테고리

Pneumatic Flow Control Valves

상태

중고

America Asahi Ball Check Control Epdm flow Industrial NSF-61 Off Omni On PVC Sealed Valve

방대한 재고

글로벌 배송

전문 지원

품질 보장

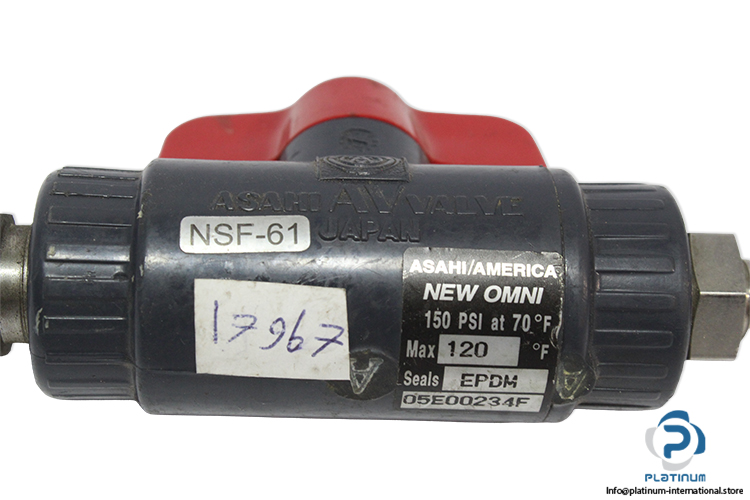

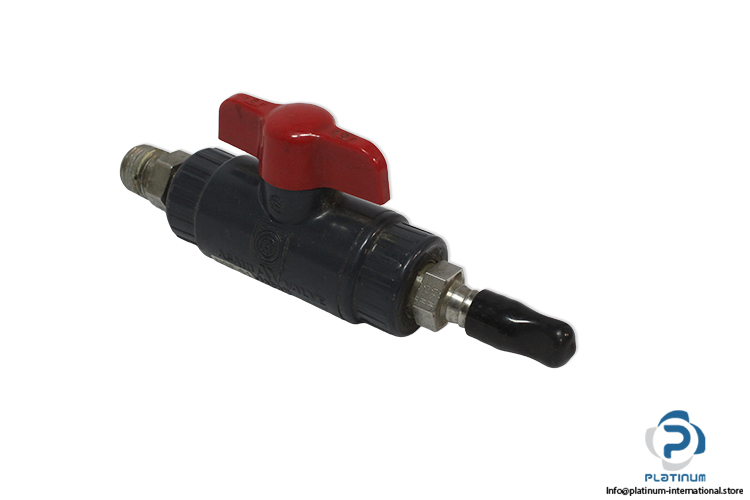

Asahi / America Omni NSF-61 Ball Check Valve

The Asahi / America Omni NSF-61 is a PVC ball check valve designed for reliable on/off flow control in industrial applications. It provides dependable sealing performance using EPDM seals and is suitable for systems requiring corrosion-resistant materials and consistent pressure handling.

Manufacturer: Asahi / America Omni

Type: Ball Check Valve

Model: NSF-61

Part No.: 05E00234F

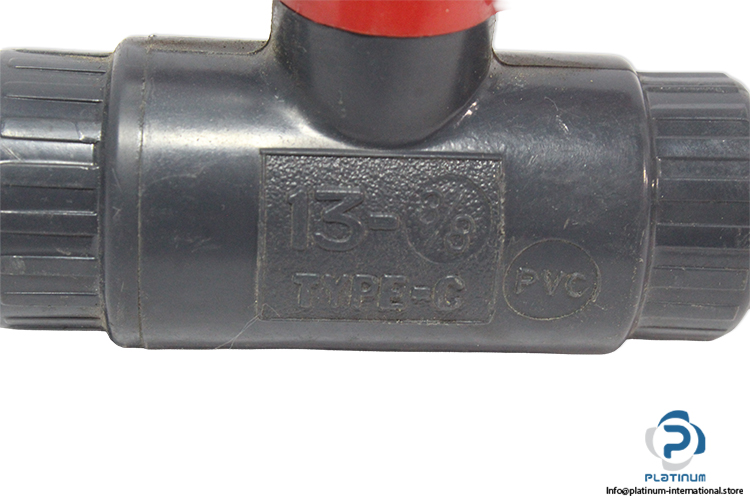

Code: 13-8/8

Body Material	PVC
Valve Type	C
Pressure Rating	150 psi at 70° F
Maximum Temperature	120° F
Seals	EPDM
Port Size	3/8 in
Application	Used for on/off flow control in industrial applications
