Atos DH-0231/2 40 Mechanical Directional Valve
중고
재고 있음1 단위즉시 배송 가능
129,99$
MECHANICAL DIRECTIONAL VALVE
Compact directional valve by Atos featuring cam actuation, high pressure handling up to 350 bar, and return-to-center functionality for precise hydraulic control in industrial systems.0“635040ActuatorAtosbarCamControlDHDH-0231/2DirectionalHighHydraulicMechanicalPressureSeriesSizesub-plateValve
방대한 재고
글로벌 배송
전문 지원
품질 보장

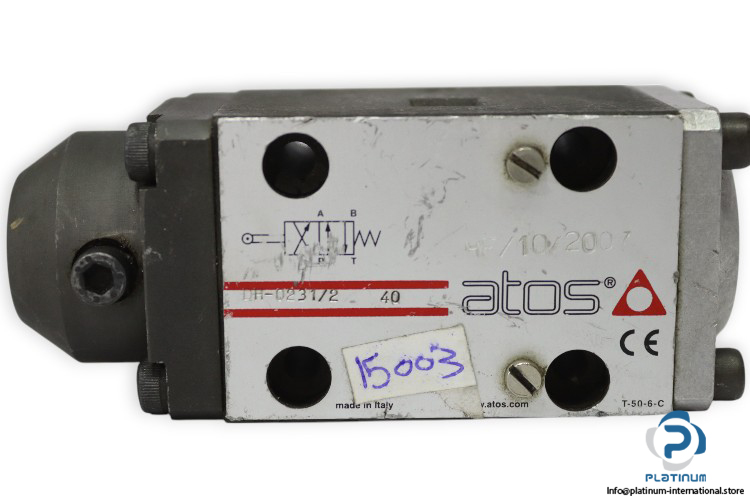

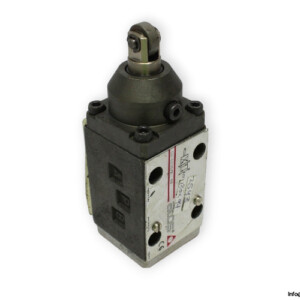

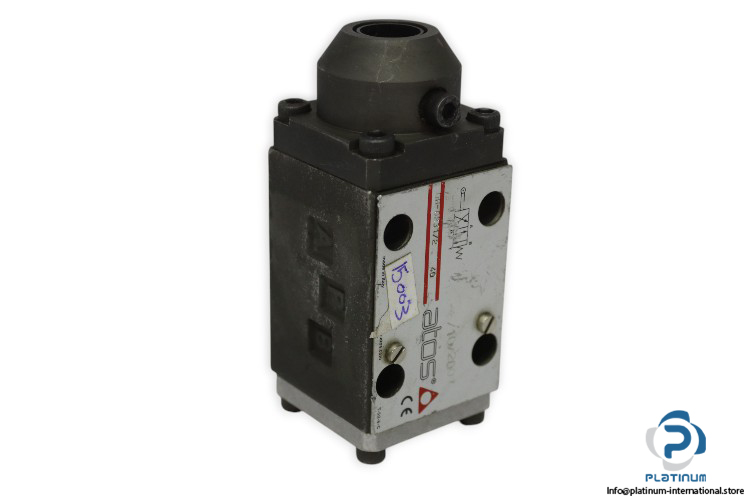

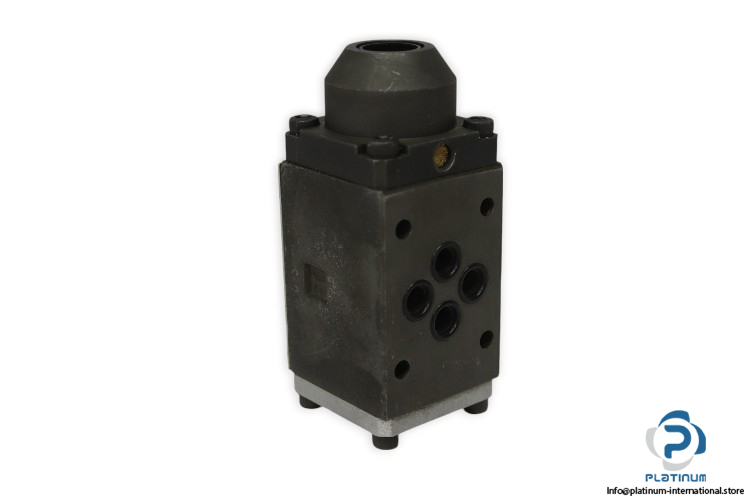

ATOS DH-0231/2 40 MECHANICAL DIRECTIONAL VALVE
Designed for high-pressure hydraulic systems, this mechanical directional valve from Atos offers robust performance, precise control, and reliable return-to-center operation. Ideal for industrial automation where compact size, cam actuation, and plate-mounted installation are required.
Manufacturer: Atos
Type: Mechanical Directional Valve
Model: DH-0231/2 40
Code: T-50-6-C
| Size | 06 |
| Ambient Temperature Range | -30 to +70 °C |
| Maximum Operating Pressure Ports P, A, B | 350 bar |
| Maximum Operating Pressure Port T | 160 bar |
| Maximum Flow Rate | 50 l/min |
| Hydraulic Fluid Temperature Range | -30 to +60 °C |
| Viscosity Range | 15 to 100 mm²/s |
| Connection | Sub-plate |
| Type of Actuator | Cam |
| Valve Configuration | Return to internal position |
