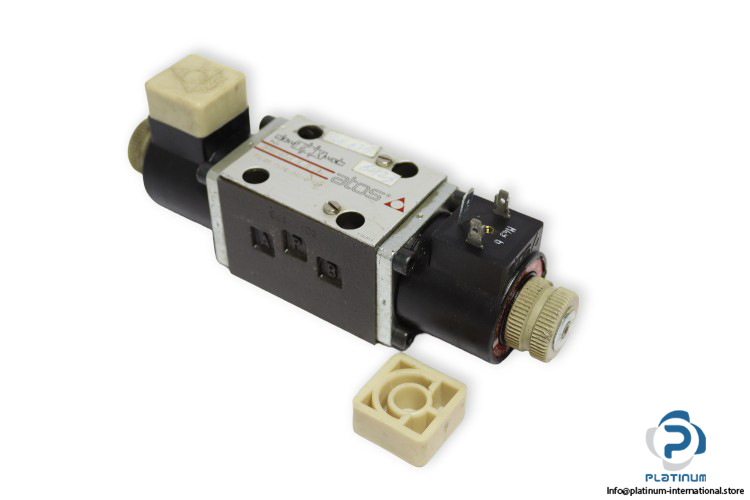

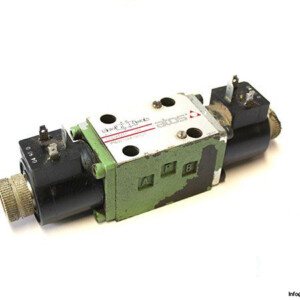

Atos DHI-0713P Pilot Directional Valve
ATOS DHI-0713P Pilot Directional Valve
The ATOS DHI-0713P is a high-performance pilot directional valve designed for precise hydraulic control in demanding industrial systems. It offers excellent flow capacity, high pressure endurance, and reliable electrical actuation, making it suitable for advanced motion and automation applications.
Manufacturer: ATOS
Type: Pilot Directional Valve
Pilot Type: DHI-0713P
| Used With | DPHI-3711/1/R /51 |
| Nominal Size | NG 6 |
| Type of Actuation | Electrically |
| Ambient Temperature Range | -20 / +70 °C |
| Max. Working Pressure (Port P, A, B, X) | 350 bar |
| Max. Pressure (Port T) | 210 bar |
| Max. Flow Rate | 160 l/min |
| Fluid Temperature Range | -20 / +60 °C |
| Hydraulic Connection | Sub-Plate |
