Auma SAR 07.1-F10 Multi-Turn Actuator
중고
재고 있음1 단위즉시 배송 가능
1 399,99$
멀티턴 액추에이터
방대한 재고
글로벌 배송
전문 지원
품질 보장

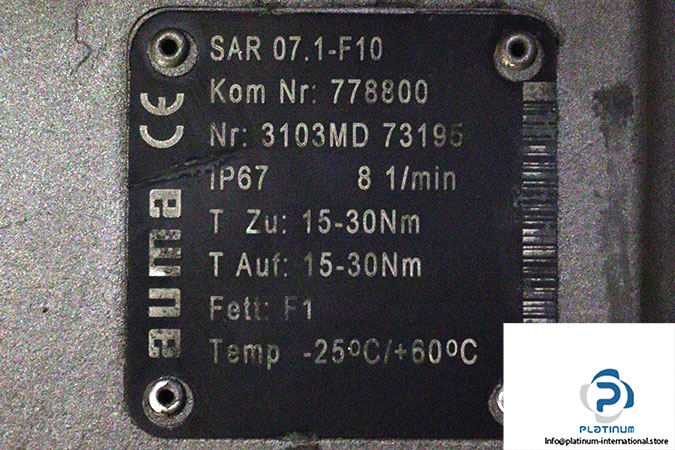

Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SAR07.1-F10
Part No.: 778800/3103MD73195
Type and Size Actuator: SAR 07.1
Flange Size: FA10
Torque Range in Direction Close [Nm]: 15-30
Torque Range in Direction Open [Nm]: 15-30
Lubricant Type: F1
Rated Speed [rpm]: 8
Ambient Temperature Range [°C]: -25…+60

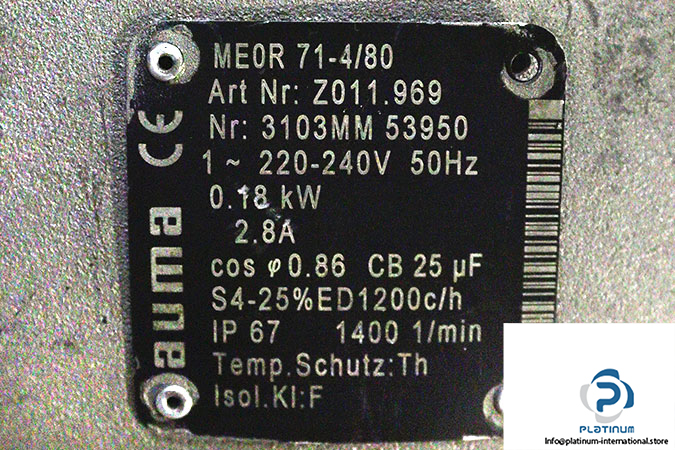

Type AC Motor: ME0R 71-4/80
Article Number: Z011.696
Mains Voltage [V]: 220-240
Rated Current [A]: 2.8
Rated Power [kW]: 0.18
Mains Frequency [Hz]: 50
Power Factor: 0.86
Type of Duty: S4
Speed [rpm]: 1400
Protection Class [IP]: 67
Insulation Class: F
Thermistors Protected: Th
