Aventics 0822122003 ISO Cylinder
신제품
재고 있음2 단위즉시 배송 가능
ISO Cylinder
The AVENTICS 0822122003 ISO Cylinder is a high-performance pneumatic cylinder designed for compressed air systems. It features a 50 mm bore, 80 mm stroke, and a G 1/4 pneumatic connection, offering reliable operation in industrial applications.08221220031/4105080AirAventicsbarboreCompressedconnectionCylinderdiameterDoubleEndGIndustrialISOmaleMaxmmModeOperationPistonPneumaticPressureRODShapeSquareStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

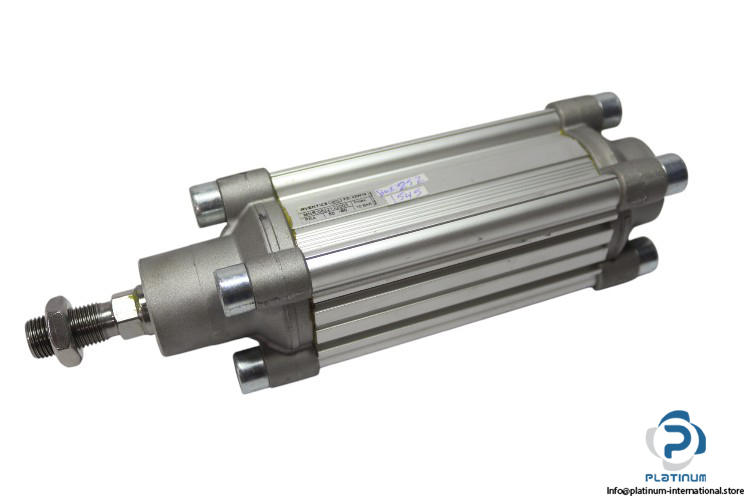

AVENTICS 0 822 122 003 ISO Cylinder
The AVENTICS 0822122003 ISO Cylinder is a high-performance pneumatic component designed for use with compressed air. Featuring a 50 mm bore diameter and 80 mm stroke, it ensures efficient operation in various industrial applications. The cylinder is designed with a square shape and male piston rod end, offering a reliable and durable solution for a wide range of pneumatic systems.
Manufacturer: AVENTICS
Type: ISO Cylinder
Model: 0822122003
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 80 mm |
| Bore x Stroke | 50 x 80 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 186 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
