Aventics R480671495 Mini Slide
중고
재고 있음1 단위즉시 배송 가능
Mini Slide
The AVENTICS MSC 20-50 is a double-acting mini slide with a 20 millimeter bore and 50 millimeter stroke, offering smooth and precise linear motion for compact automation systems.2020-50508ActingAluminumAventicsborebyComponentCylinderDoubleG1GuideIndustrialLinearMinimmMSCPneumaticPortSeriesSlideStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장

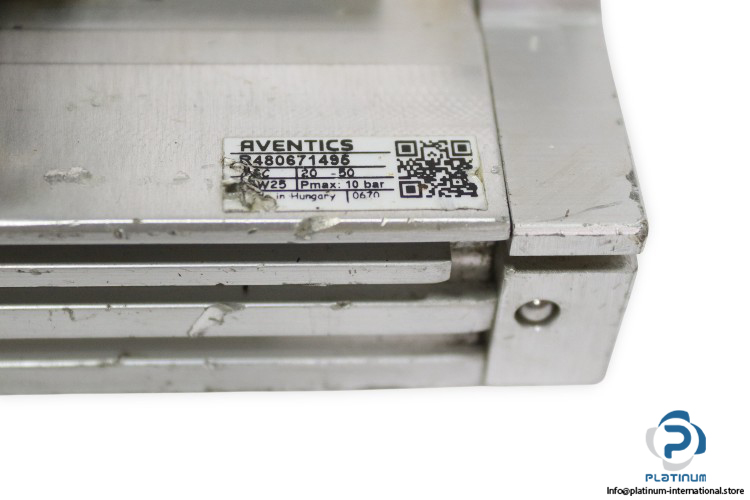

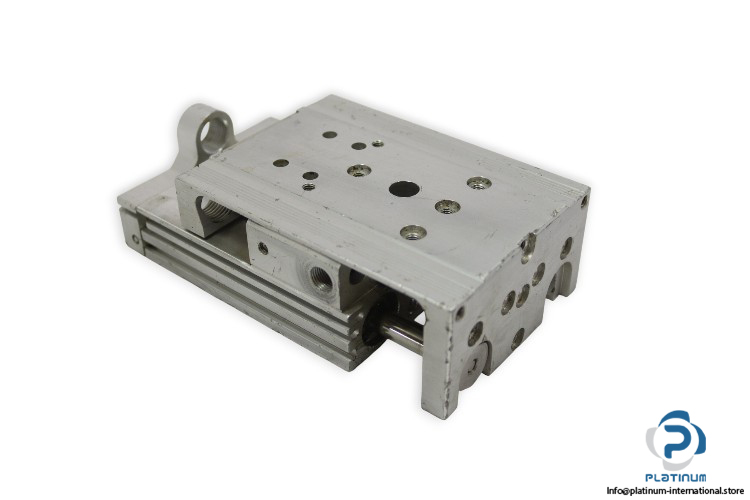

AVENTICS MSC 20-50 Mini Slide
The AVENTICS MSC 20-50 Mini Slide is a compact and precise double-acting pneumatic linear guide designed for accurate movement and positioning in automation systems. Its lightweight aluminum housing and stainless-steel piston rod ensure durability and smooth operation in industrial environments.
Manufacturer: AVENTICS
Type: Mini Slide
Model: MSC 20-50
MNR: R480671495
Series: MSC
| Operating Mode | Double acting |
| Maximum Operating Pressure | 10 bar |
| Temperature Range | 0 to 60 degree Celsius |
| Maximum Particle Size | 5 micrometer |
| Oil Content of Compressed Air | 0 to 1 milligram per cubic meter |
| Pressure for Determining Piston Forces | 6.3 bar |
| Medium | Compressed air, lubricated or oil free, lubrication maintenance free |
| Housing | Aluminum, anodized |
| Piston Rod | Stainless steel |
| Front Plate | Aluminum, anodized |
| Cylinder Diameter | 20 millimeters |
| Stroke | 50 millimeters |
| Port Size | G1 by 8 |
