Balluff BES 516-360-S4-C Inductive Sensor
중고
재고 있음1 단위즉시 배송 가능
Inductive Sensor
The Balluff BES 516-360-S4-C is an M18 inductive sensor with 8 mm sensing range, PNP output, and IP68-rated nickel-plated brass housing for industrial automation tasks.516-360-S4-CBalluffBESDetectionInductiveIndustrialIP68M18Non-flushNormallyObjectOpenPNPProximitySensor
신제품
재고 있음 25,00$
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

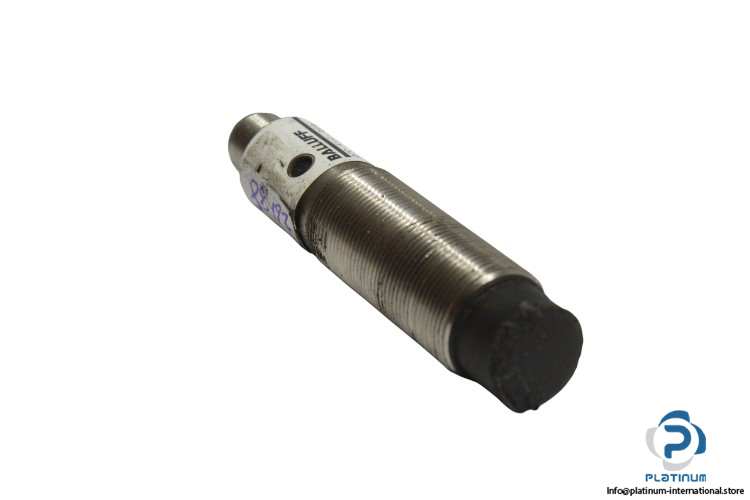

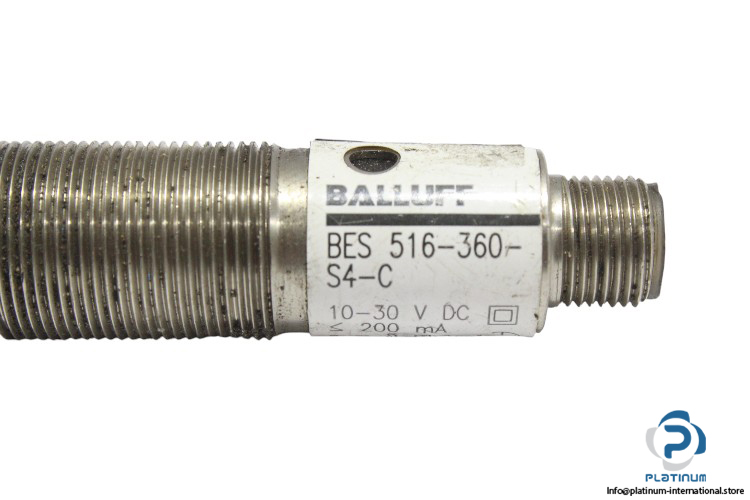

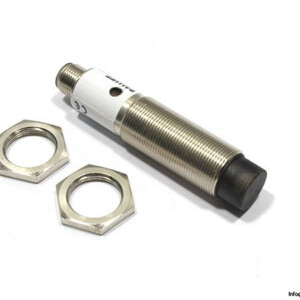

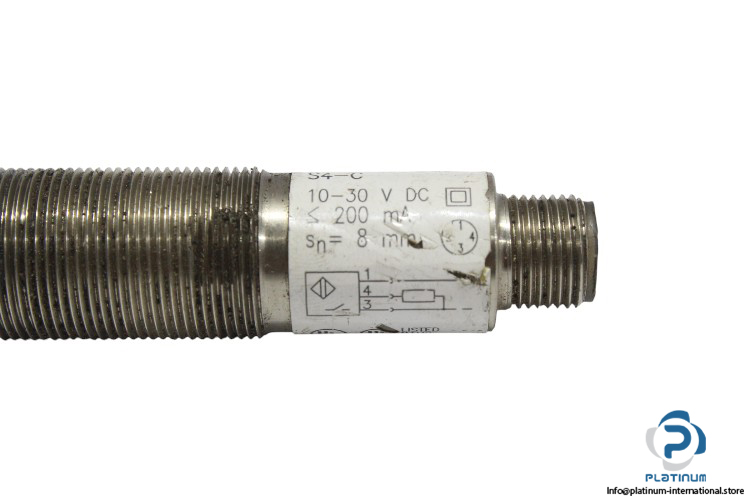

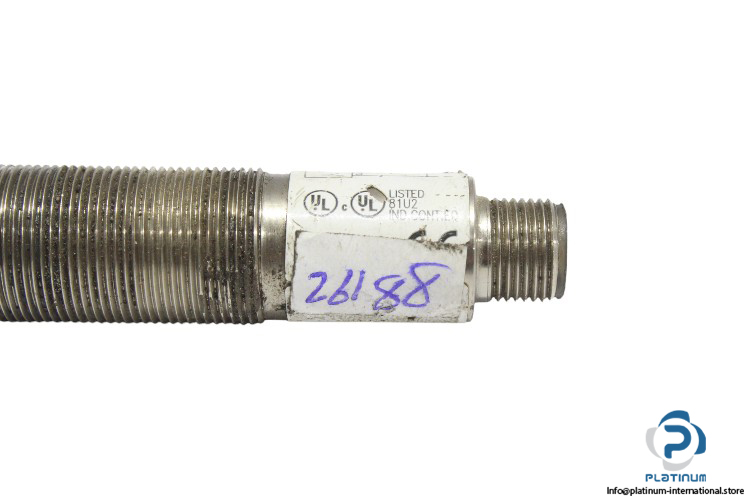

Balluff BES 516-360-S4-C Inductive Sensor
The Balluff BES 516-360-S4-C is a high-performance inductive sensor engineered for precise object detection in industrial automation environments. With an M18x1 nickel-plated brass housing and IP68 protection, it is suitable for robust applications requiring non-contact sensing and long service life.
Manufacturer: Balluff
Type: Inductive Sensor
Model: BES 516-360-S4-C
| Size | M18x1 |
| Rated Operating Distance (Sn) | 8 mm |
| Operating Voltage (Ub) | 10 / 30 V DC |
| Rated Operating Current (Ie) | 200 mA |
| Switching Frequency | 600 Hz |
| Switching Output | PNP |
| Output Function | Normally Open |
| Diameter / Length | 18 mm / 83 mm |
| Connection | M12x1-Male, 4-pin |
| Installation | Non-flush |
| Housing Material | Brass, Nickel Plated |
| Protection Class | II |
| IP Rating | IP68 |
| Ambient Temperature | -25 / 70 °C |
