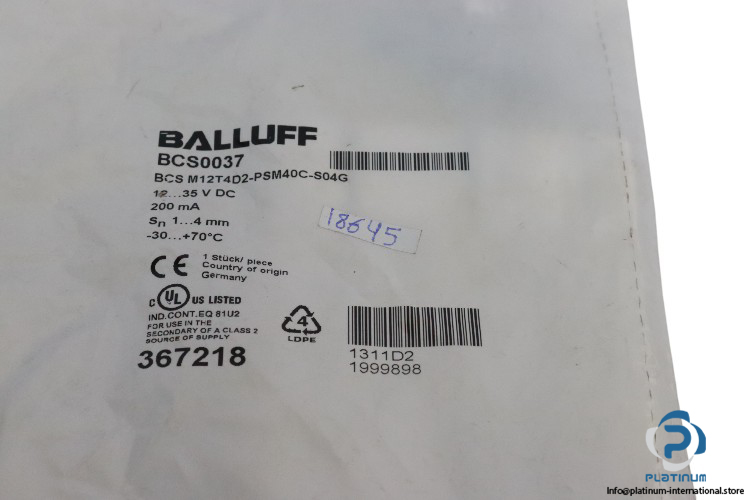

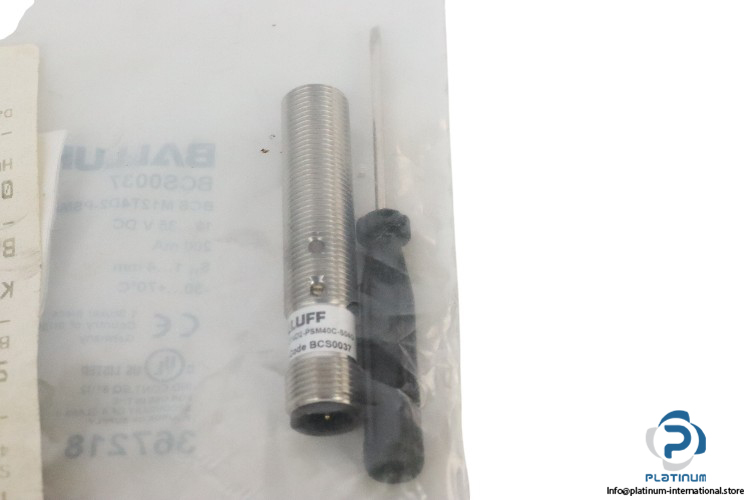

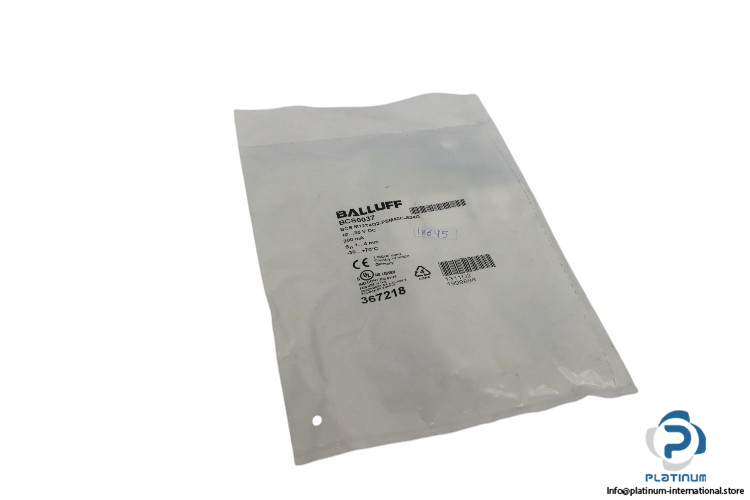

Balluff BCS M12T4D2-PSM40C-S04G Capacitive Sensor
Product Overview
Manufacturer: BALLUFF
Type: Capacitive Sensor
Model: BCS M12T4D2-PSM40C-S04G
Part No.: BCS0037
The BALLUFF Capacitive Sensor is an advanced solution designed for detecting objects regardless of material composition. This sensor offers reliable detection and is ideal for industrial automation, material handling, and process control applications. With an operating voltage range from 12V to 35V DC and a switching frequency of up to 100 Hz, the sensor offers excellent flexibility and performance. The sensor also features a PNP output, ensuring ease of integration into automation systems.
Key Specifications:
- Operating Voltage (UB): 12.0 to 35.0 V DC
- Rated Insulation Voltage (Ui): 75 V DC
- Operating Current (Ie): 200 mA
- Connection Type: Connector
- Switching Frequency: 100 Hz
- Switching Function: Normally Open (NO)
- Switching Output: PNP
- Voltage Drop Static Max.: 1.5 V
- Diameter (Threaded Section): M12 x 1
- Overall Length: 60 mm
- Small Hole Diameter: 4 mm
With its durable design and versatile operation, the BALLUFF Capacitive Sensor is a perfect fit for industrial environments, providing reliable and accurate detection of various objects.
