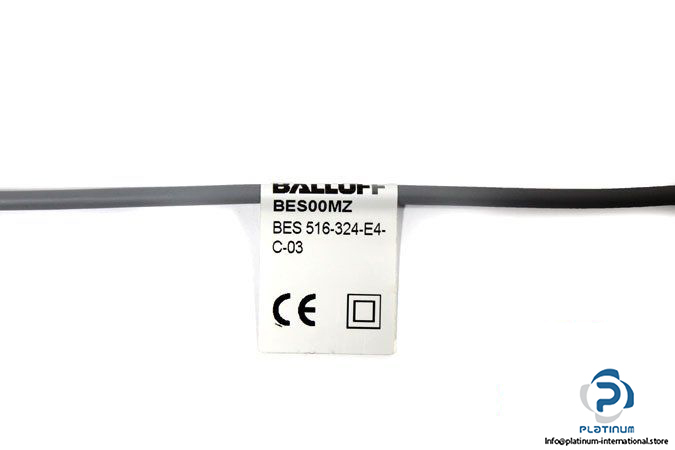

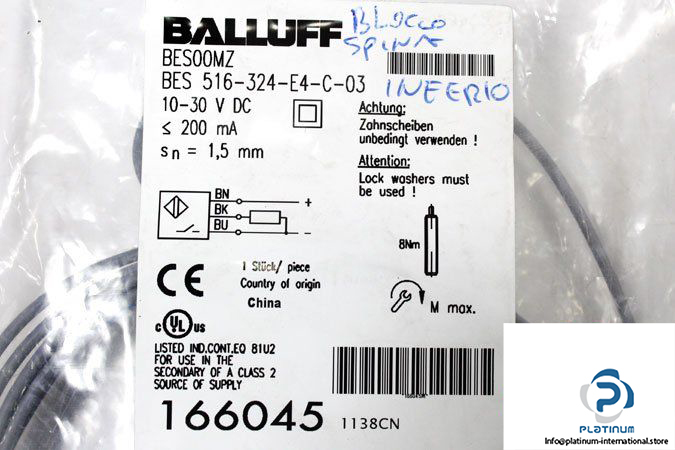

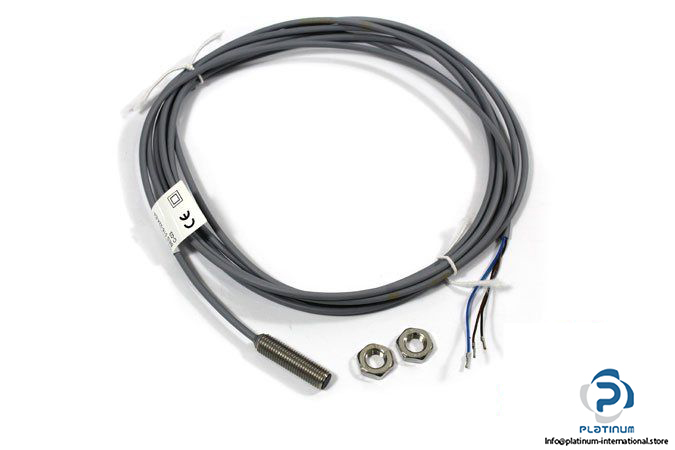

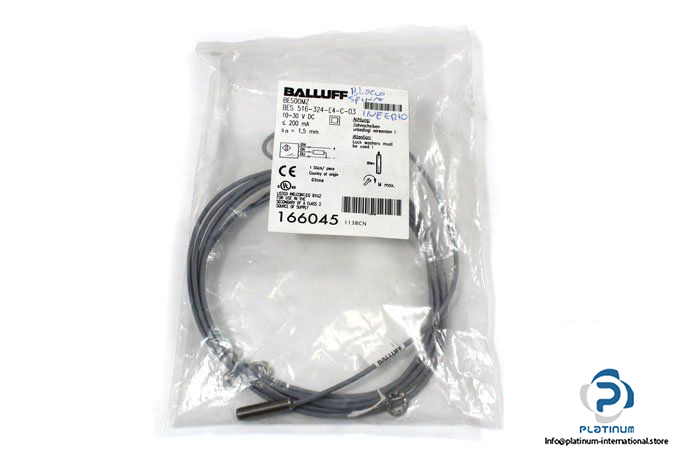

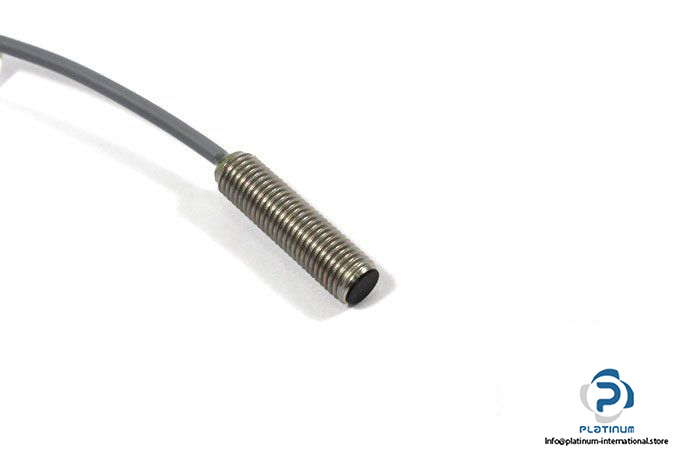

Balluff BES 516-324-E4-C-03 Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order No.: BES00MZ

MRN: BES 516-324-E4-C-03

Sensing Range: 1.5 mm

Assured Operating Distance: 1.2 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching Frequency: 5000 Hz

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: PVC Cable, 3 m

Protection Class: II

Enclosure Rating: IP68

Ambient Operating Temperature: -40 … 85°C

Diameter, Housing Length: 8, 30 mm

Housing Material: Stainless Steel

Sensing Face Material: PBT

Mounting: Flush-Mountable
