Balluff BES 516-324-E5-C-S 4 Inductive Sensor
신제품
재고 있음4 단위즉시 배송 가능
Inductive Sensor
Inductive proximity sensor with 1.5 mm sensing range, PNP NO output, stainless-steel housing, and IP68 protection for industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

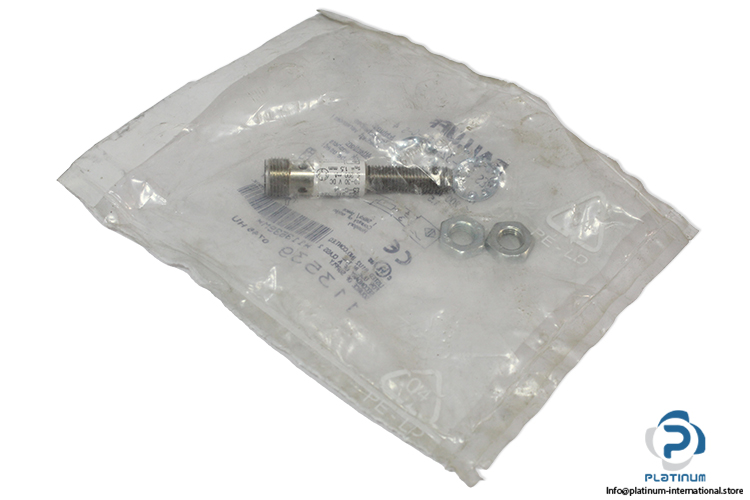

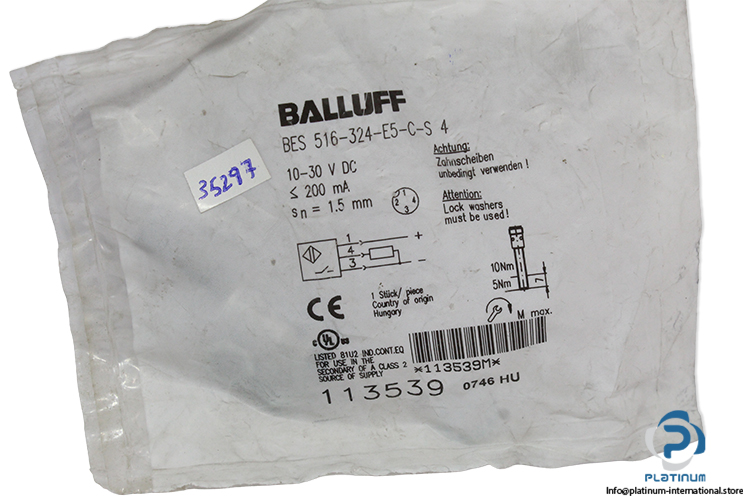

BALLUFF BES516-324-E5-C-S4 Inductive Sensor
The BALLUFF BES516324E5CS4 inductive sensor is designed for precise and reliable non-contact detection of metal objects in industrial automation environments. With a compact stainless-steel housing and high switching frequency, it ensures stable performance even in harsh operating conditions.
Manufacturer: BALLUFF
Type: Inductive Sensor
Model: BES 516-324-E5-C-S 4
Order Code: 113539
| Series | BES 516 |
| Sensing Range | 1.5 mm |
| Rated Operating Voltage | 10 / 30 V DC |
| Rated Current | 200 mA |
| Contact Type | PNP Normally Open (NO) |
| Ready Delay (Max.) | 21 ms |
| Switching Frequency | 2500 Hz |
| Connection | M8 Connector, 4-pin |
| Diameter / Length | 8 mm / 55.5 mm |
| Housing Material | Stainless Steel |
| Protection Class | IP68 |
| Ambient Temperature | -25 / 70 °C |
