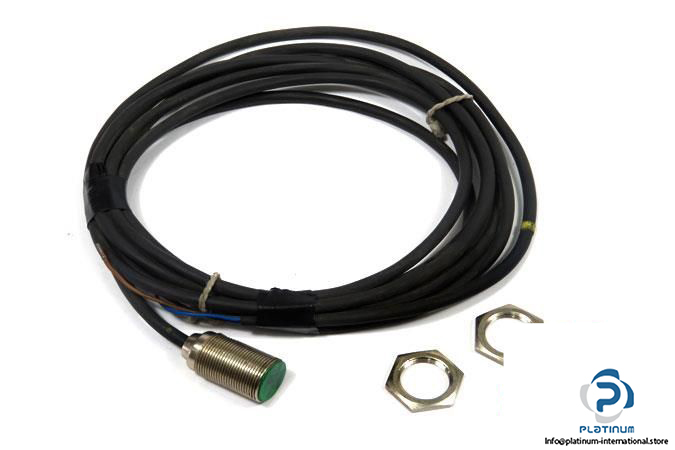

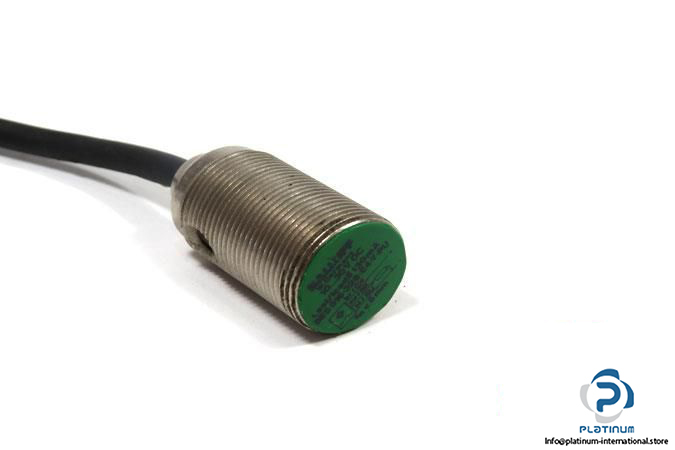

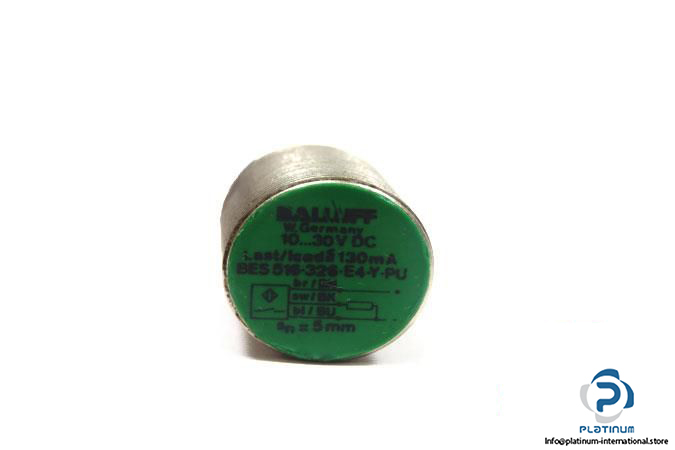

Balluff BES 516-326-E4-Y-PU Inductive Sensor

Manufacturer: BALLUFF

Type:  INDUCTIVE SENSOR

Order Code: BES030T

MRN: BES516-326-E4-Y-PU

Sensing Range: 8 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 200 Hz

Switching output current: 130 mA DC

Electrical design: PNP

Output Function: Normally open

Connector type, length: PUR Cable

Protection Class: II

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18, 36 mm

Material: Nickel-plated brass; sensing face: PBT

Mounting: Flush mountable

Supplied Accessories: 2 lock nuts

Condition: Used
