Balluff BMF002R Cylinder Sensor

재고 있음2 단위즉시 배송 가능

Cylinder Sensor

A compact magnetic cylinder sensor optimized for short-stroke pneumatic cylinders, offering high switching speed, PNP output, and IP67 protection for reliable industrial automation performance.

제조업체
BALLUFF
SKU
1084713
카테고리
Sensors
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

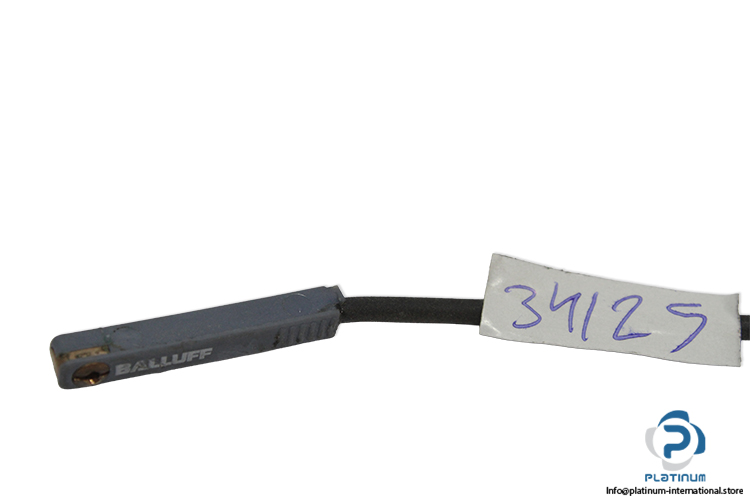

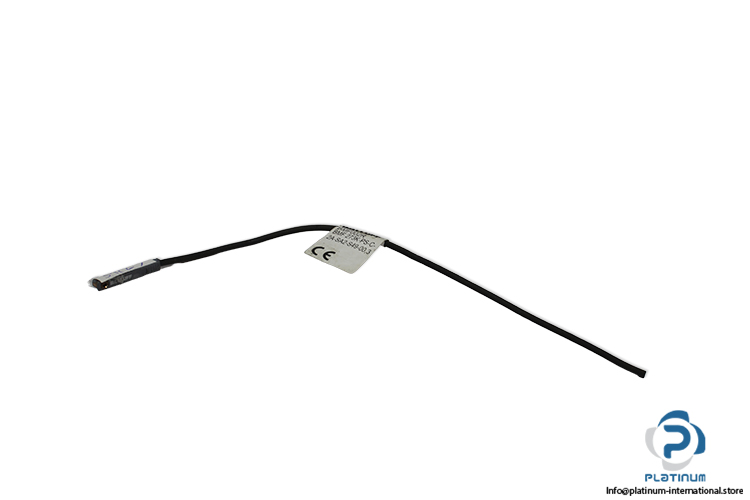

BALLUFF BMF002R Cylinder Sensor

A compact and high-precision magnetic cylinder sensor designed for reliable position detection in pneumatic cylinders. This sensor is optimized for short-stroke applications, delivering fast response and stable switching performance in demanding industrial environments. Manufacturer: BALLUFF

Type: Cylinder Sensor

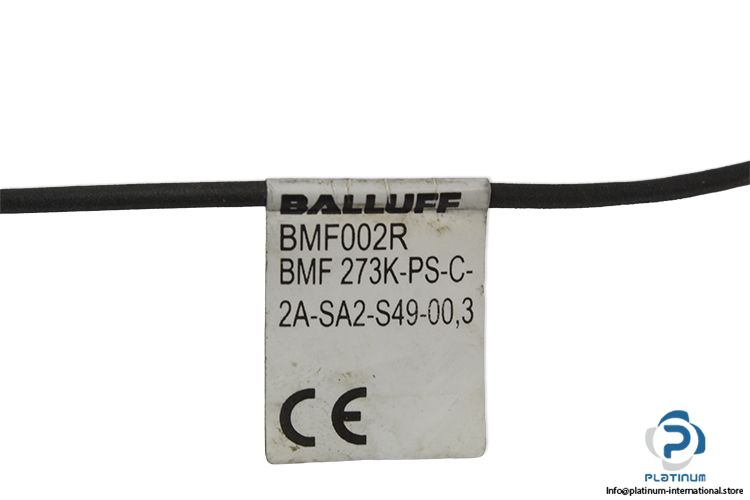

Model: BMF002R

MRN: BMF 273K-PS-C-2A-SA2-S49-00.3

Slot TypeC-slot
Dimensions25.7 × 2.85 × 3.95 mm
Principle Of OperationMagnetic Field Sensor
ConnectionM8x1 Male, 3-pin
CablePUR, 0.3 m
ApplicationOptimized Response Path For Short-Stroke Cylinders
Housing MaterialPBT
Switching OutputPNP Normally Open (NO)
Switching Frequency7000 Hz
Operating Voltage (Ub)10 / 30 VDC
Ambient Temperature-25 / 85 °C
IP RatingIP67
