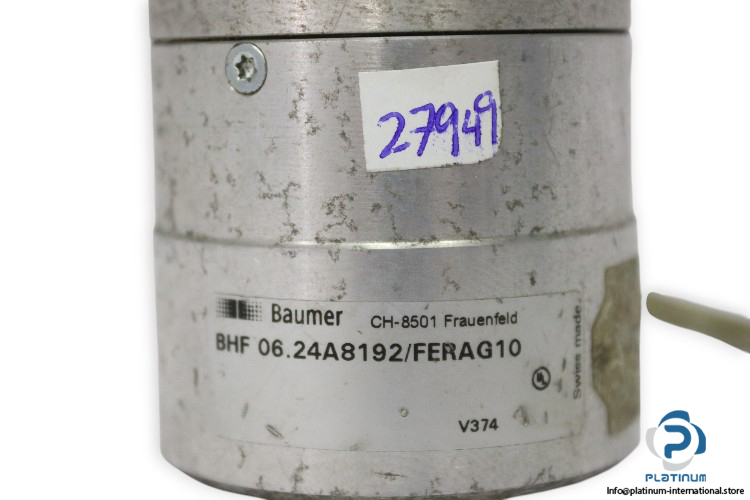

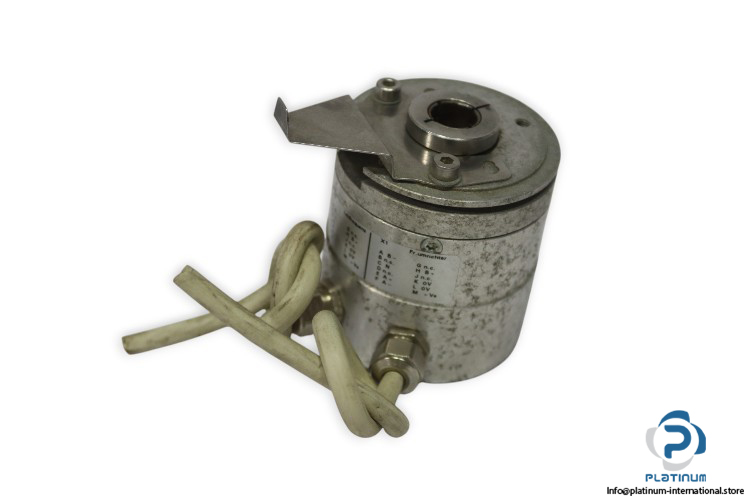

Baumer Electric BHF 06.24A8192/FERAG10 Encoder
The Baumer Electric BHF 06.24A8192/FERAG10 is a high-precision encoder designed for accurate position and speed feedback in industrial automation systems. Built with durable materials and high protection levels, it delivers consistent performance under demanding conditions.
Manufacturer: Baumer Electric
Type: Encoder
Model: BHF 06.24A8192/FERAG10
Code: V374
| Size (Flange) | 58 mm |
| Shaft Diameter | 12 mm (blind hollow shaft) |
| Voltage Supply | 5 VDC ±10%, 10–30 VDC, 4.5–30 VDC |
| Power Consumption | 80 mA (5 VDC), 180 mA (4.5 VDC), 60 mA (24 VDC) |
| Degree of Protection | IP42, IP65 |
| Operating Speed | 12000 rpm (IP42), 6000 rpm (IP65) |

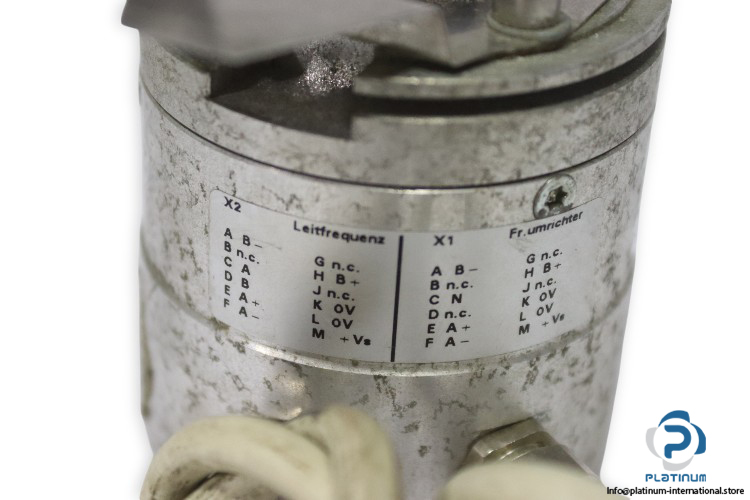

| Connection | Connector M23 (12-pin), Cable 2 m |
| Operating Torque | 0.009 Nm (IP42), 0.037 Nm (IP65) |
| Material | Housing: Aluminium, Connection: Steel, Flange: Aluminium |
| Operating Temperature | -20 to 85 °C |
