Baumer Ifrm 08P17A3/S35L Inductive Proximity Sensor
| Part No. | 10138747 |
| Ref No | 45088, 82002280 |
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 … 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 5 kHz |
| Operating Voltage | 6… 36 V DC |
| Current consumption max. (no load) | 12 mA |

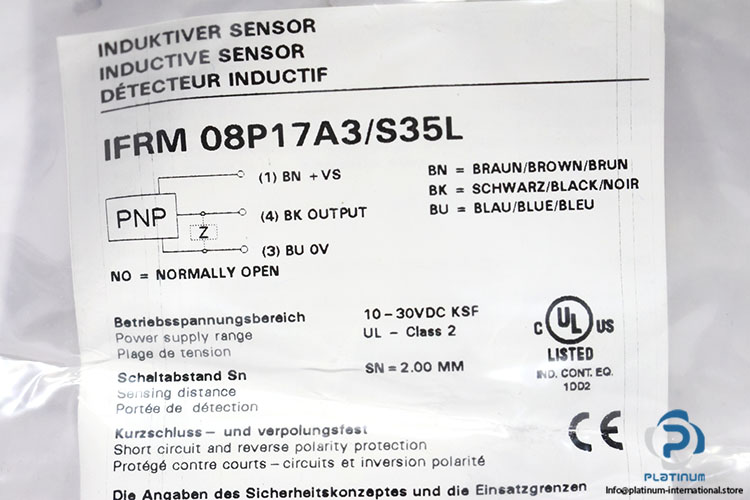

| Output circuit | PNP make function (NO) |
| Voltage drop Vd | 2 VDC |
| Current Rating | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 36 mm |
| Connection types | Connector M8 |
| Operating Temperature | -25 … 75°C |
| Protection class | IP 67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100890 |
| Weight | 0,03 |
