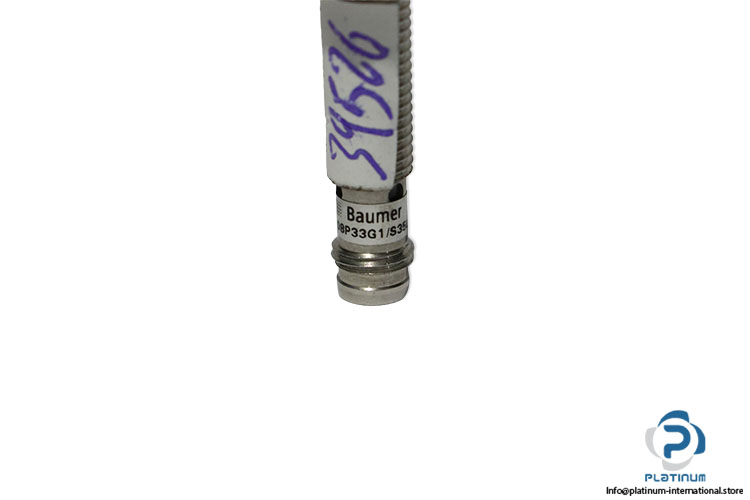

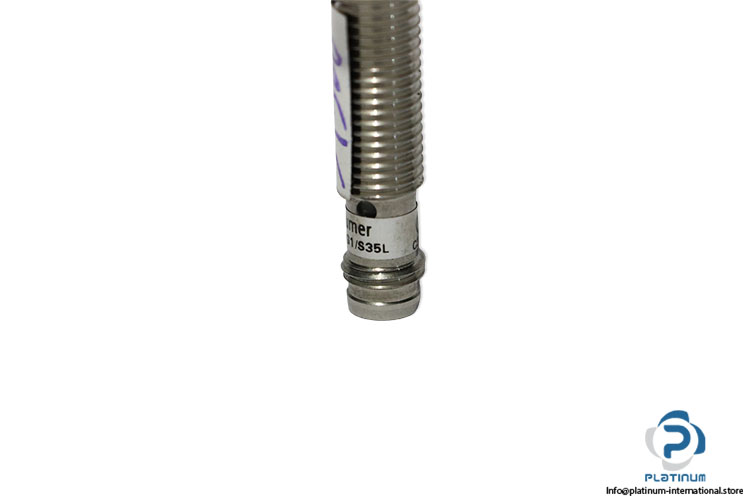

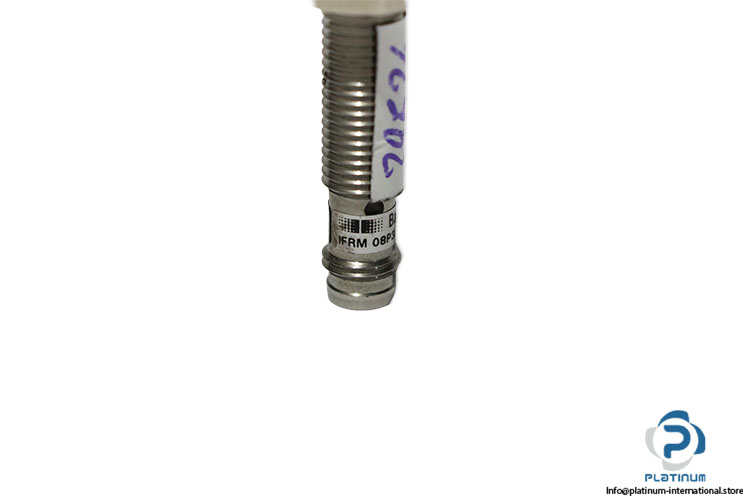

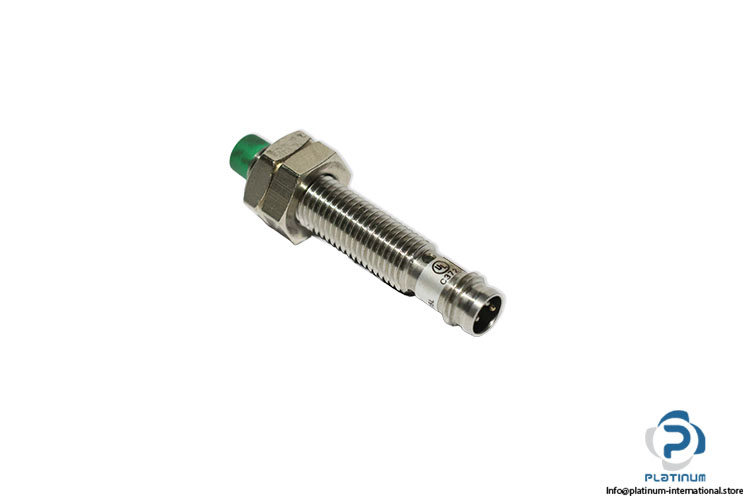

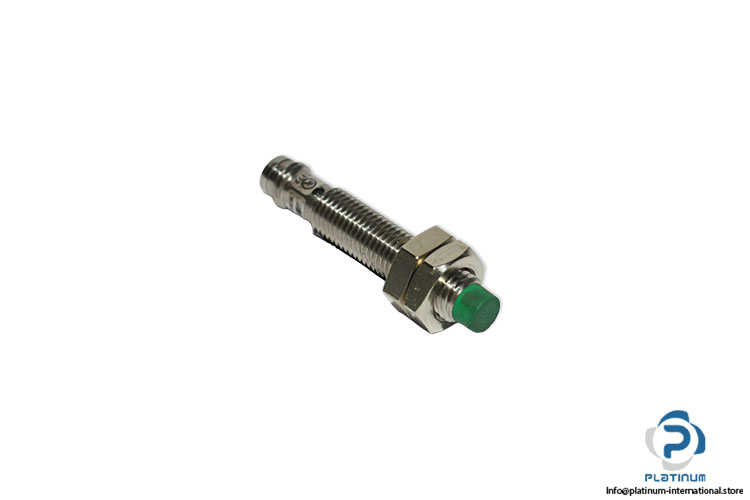

Baumer Ifrm 08P33G1/S35L Inductive Proximity Sensor
| Mounting type | NON-Flush |
| Nominal sensing distance Sn | 6 mm |
| Hysteresis | 2 … 25 % of Sr |
| Switching frequency | 400 Hz |
| Operating Voltage | 12… 30 V DC |
| Current consumption max. (no load) | 18 mA |
| Voltage drop Vd | 2 VDC |
| Current Rating | 200 mA |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 40 mm |

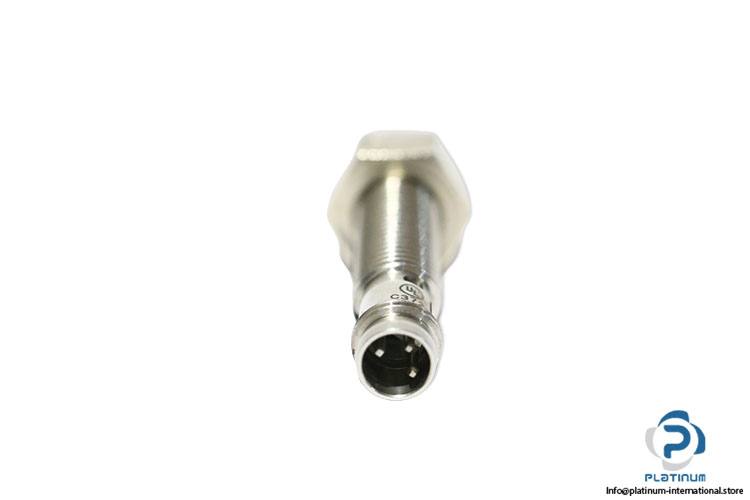

| Connection types | M8 |
| Operating Temperature | 0 … 60°C |
| Protection class | IP 67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100943 |
| Weight | 0,01 |
