Motion Control Rotary Encoders

Baumer ITD21H00 1024 H NI S21SG8 E 14 IP65 Incremental Encoder

Name: BAUMER ITD21H00 1024 H NI S21SG8 E 14 IP65 INCREMENTAL ENCODER
SKU: 1044446
Price: 244.44 USD
Availability: InStock

baumer-ITD21H00-1024-H-NI-S21SG8-E-14-IP65-incremental-encoder-(used)

baumer-ITD21H00-1024-H-NI-S21SG8-E-14-IP65-incremental-encoder-(used)-1

baumer-ITD21H00-1024-H-NI-S21SG8-E-14-IP65-incremental-encoder-(used)-2

중고

재고 있음47 단위즉시 배송 가능

244,44$

INCREMENTAL ENCODER Baumer ITD21H001024HNIS21SG8E14IP65는 14mm 중공축과 함께 1024 PPR 해상도 및 IP65 등급 보호를 제공합니다. 최대 6000 rpm의 고속, 정밀 산업용 애플리케이션에 적합합니다.

제조업체

BAUMER

SKU

1044446

카테고리

Rotary Encoders

상태

중고

1024 Baumer Encoder Feedback hollow Incremental Industrial IP65 ITD21H001024HNIS21SG8E14IP65 Optical PPR Rotary shaft

방대한 재고

글로벌 배송

전문 지원

품질 보장

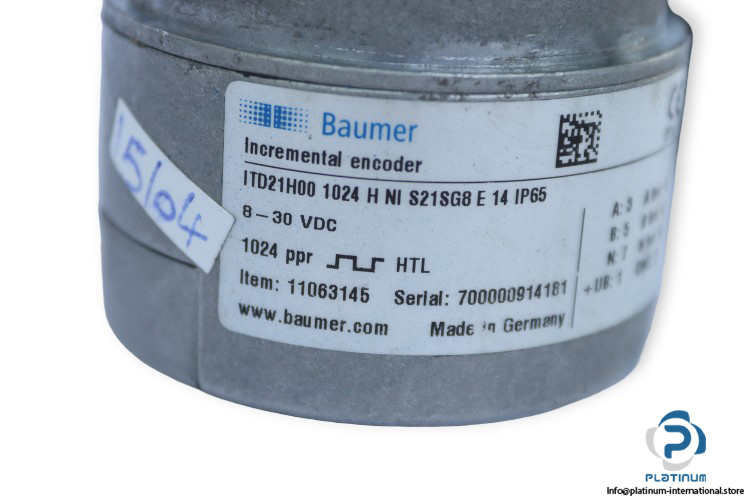

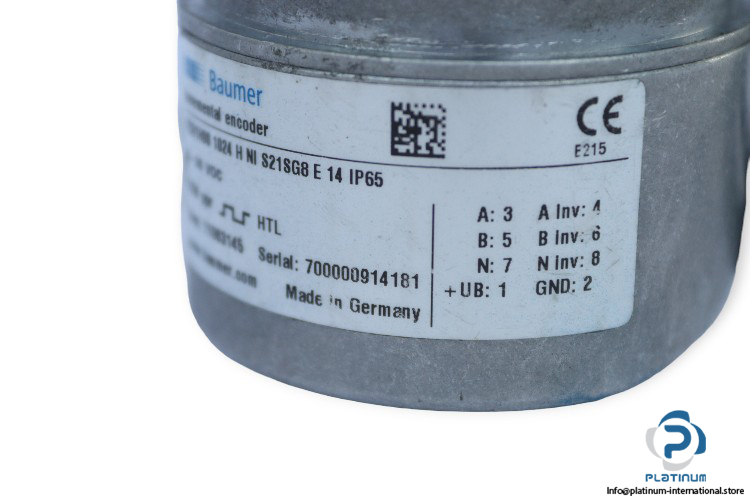

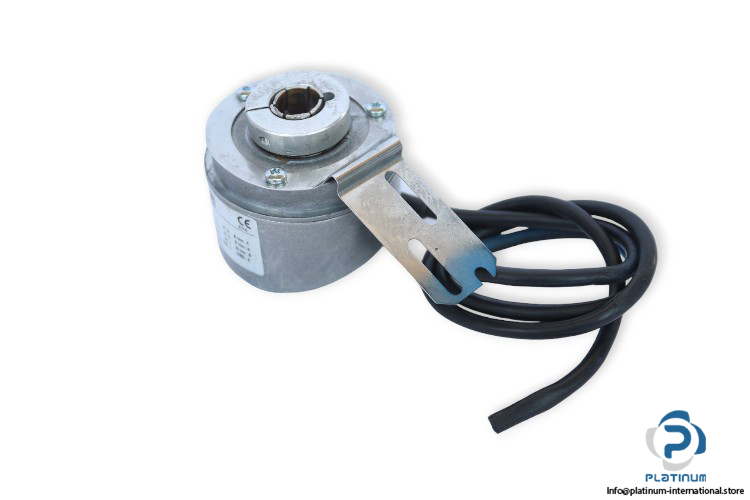

BAUMER ITD21H001024HNIS21SG8E14IP65 INCREMENTAL ENCODER

Baumer's high-precision incremental encoder is engineered for robust performance in demanding industrial applications. With a compact design, high resolution, and IP65 protection, it ensures reliable position feedback in harsh environments.

Manufacturer: Baumer

Type: Incremental Encoder

Model: ITD21H001024HNIS21SG8E14IP65

Part No.: 11063145

Serial No.: 700000914181

Power Supply	8 / 30 V DC
Current Consumption (No-load)	Imax ‰¤ 100 mA
Shaft Diameter	14 mm
Shaft Design	Hollow Shaft
Connection	Board Connector, 8-pin
Resolution	1024 Pulses per Revolution (PPR)
Protection Degree	IP65
Operating Speed	‰¤6000 rpm
Starting Torque	‰¤0.015 Nm (+20 °C)
Material	Housing “ Aluminium, Shaft “ Stainless Steel
Size (Flange)	Diameter Ã¸58 mm
Sensing Method	Optical
Operating Temperature Range	-30 / +100°C
