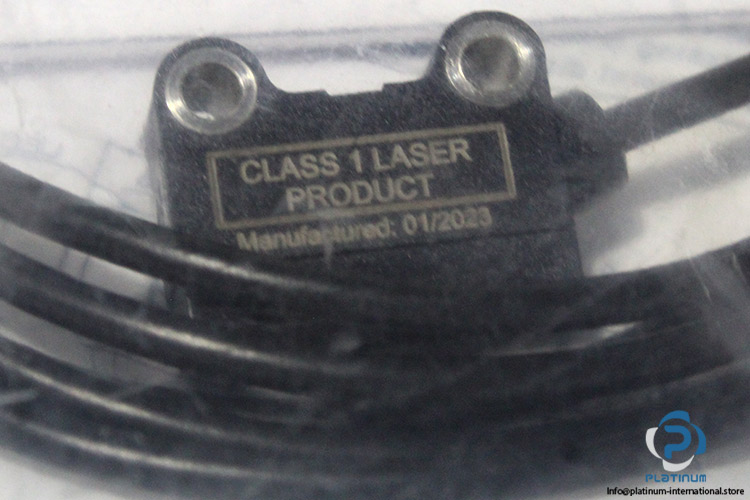

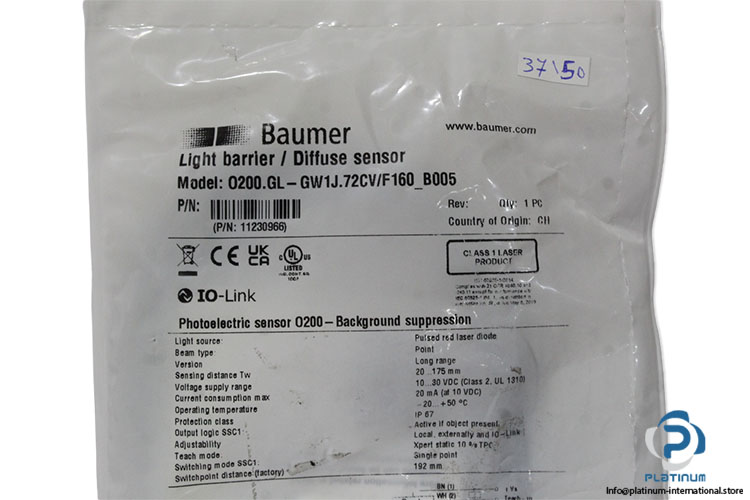

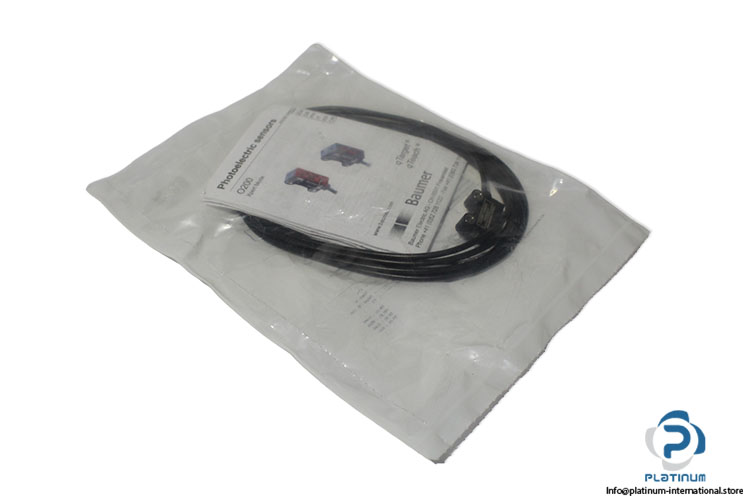

Baumer O200.GL-GW1J.72CV/F160_B005 Diffuse Sensor

재고 있음3 단위즉시 배송 가능

Diffuse Sensor With Background Suppression The Baumer O200.GL GW1J.72CV/F160_B005 is a compact light barrier diffuse sensor with background suppression designed for accurate object detection in industrial automation systems. Featuring a sensing range up to 192 mm, IO-Link V1.1 interface, and IP67 protection, it delivers reliable and high-speed operation in demanding environments.

제조업체
BAUMER
SKU
1097879
카테고리
Sensors
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장
Part No.11230966
SeriesO200
Sensing range3 to 192 mm
Sensing distance Tw20 … 175 mm
Switching modesingle point
Wave length680 nm
Supply voltage10 to 30 VDC
Current consumption10 to 20 mA
Cycle timemin. 0.6 ms
Connection typeCable 4 wires, 2 m
Output functionLight / dark operate
Protection degreeIP 67, class 1
InterfaceIO-Link V1.1
DesignRectangular
Mechanical mountingSleeve smooth (stainless steel)
Operating temperature-20 to 50 °C
Housing materialPlastic
Front (optics) materialPMMA
CertificationscULus , CE , UKCA
Length25.1 mm
Depth15.8 mm
Width8 mm
Conditionnew
Stock keyJO-004
SKU1097879
Weight0,04
Baumer Iwrm 30U9501/S14 Inductive Proximity Sensor
신제품

BAUMER

Baumer Iwrm 30U9501/S14 Inductive Proximity Sensor

SKU: 1100939

수량: 2

견적을 통해 제공됩니다
Baumer Fzam 30P5004 Fiber Optic Sensor
신제품

BAUMER

Baumer Fzam 30P5004 Fiber Optic Sensor

SKU: 1100945

수량: 2

견적을 통해 제공됩니다
Baumer O300.GP-GW1B.72N Diffuse Sensor With Background Suppression
신제품

BAUMER

Baumer O300.GP-GW1B.72N Diffuse Sensor With Background Suppression

SKU: 1103986

수량: 4

견적을 통해 제공됩니다
Baumer Undk 20P6903/S35A Ultrasonic Proximity Sensor
신제품

BAUMER

Baumer Undk 20P6903/S35A Ultrasonic Proximity Sensor

SKU: 1100947

수량: 4

견적을 통해 제공됩니다
Baumer Iffm 08P3701/O1S35L Inductive Proximity Sensor
신제품

BAUMER

Baumer Iffm 08P3701/O1S35L Inductive Proximity Sensor

SKU: 1100942

수량: 4

견적을 통해 제공됩니다
Sidel 00000125658 Ultrasonic Sensor
중고

SIDEL

Sidel 00000125658 Ultrasonic Sensor

SKU: 1001194

수량: 6

165,00$
Honeywell 923AB2HM-A7T-L Proximity Sensor
신품 및 중고

Honeywell 923AB2HM-A7T-L Proximity Sensor

SKU: 968247

수량: 22

견적을 통해 제공됩니다
Datasensor S2-1-G10 Through-Beam Photoelectric Sensor-Emitter
신제품

DATASENSOR

Datasensor S2-1-G10 Through-Beam Photoelectric Sensor-Emitter

SKU: 995279

수량: 1

175,00$
Omron E2A-M12LS04-WP-B2 Inductive Proximity Sensor
신제품

Omron E2A-M12LS04-WP-B2 Inductive Proximity Sensor

SKU: 987030

수량: 1

견적을 통해 제공됩니다
Sick MHTB15-P3367V Photoelectric Proximity Sensor
중고요청 시 제공 가능

SICK

Sick MHTB15-P3367V Photoelectric Proximity Sensor

SKU: 977233

요청 시 제공 가능

70,00$
플래티넘 인터내셔널
잉여, 신규 및 중고 - 언제나 신뢰할 수 있습니다
BAUMER SKU: 1097879
Baumer O200.GL-GW1J.72CV/F160_B005 Diffuse Sensor
Baumer O200.GL-GW1J.72CV/F160_B005 Diffuse Sensor
가격요청 시
재고3 재고 있음
제조업체BAUMER
카테고리Sensors
상태신제품
SKU1097879
Diffuse Sensor With Background Suppression The Baumer O200.GL GW1J.72CV/F160_B005 is a compact light barrier diffuse sensor with background suppression designed for accurate object detection in industrial automation systems. Featuring a sensing range up to 192 mm, IO-Link V1.1 interface, and IP67 protection, it delivers reliable and high-speed operation in demanding environments.
설명
Part No.11230966
SeriesO200
Sensing range3 to 192 mm
Sensing distance Tw20 … 175 mm
Switching modesingle point
Wave length680 nm
Supply voltage10 to 30 VDC
Current consumption10 to 20 mA
Cycle timemin. 0.6 ms
Connection typeCable 4 wires, 2 m
Output functionLight / dark operate
Protection degreeIP 67, class 1
InterfaceIO-Link V1.1
DesignRectangular
Mechanical mountingSleeve smooth (stainless steel)
Operating temperature-20 to 50 °C
Housing materialPlastic
Front (optics) materialPMMA
CertificationscULus , CE , UKCA
Length25.1 mm
Depth15.8 mm
Width8 mm
Conditionnew
Stock keyJO-004
SKU1097879
Weight0,04
기술 사양
Weight0,04 kg
ManufacturerBAUMER
Type of Productlight barrier diffuse sensor with background suppression
ModelO200.GL GW1J.72CV/F160_B005
Shelf No.260620
