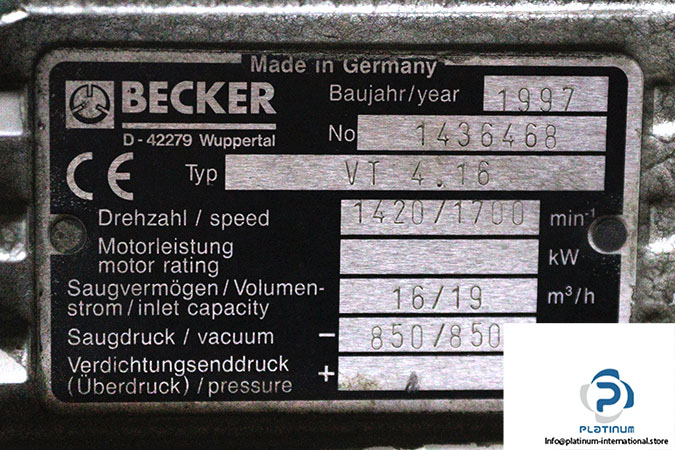

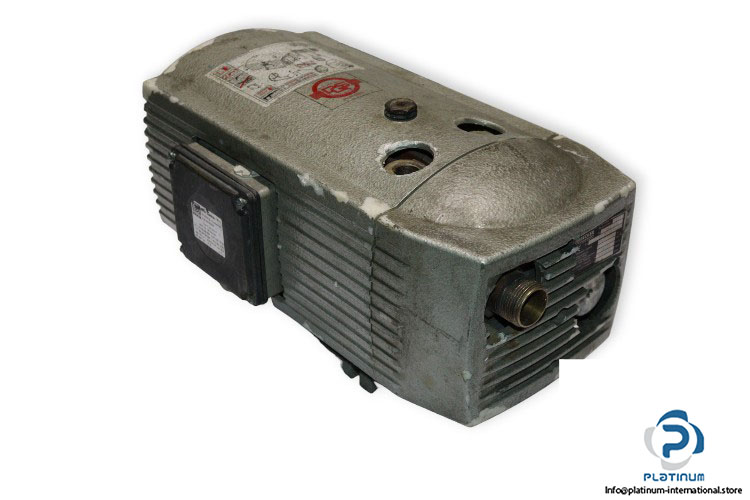

Becker VT 4.16 Vacuum Pump

Manufacturer: Becker
Type: Vacuum Pumps
Model: VT4.16

Final Pressure [mbar]: 850/850
Rated Speed [min^-1]: 1420/1700
Flow Rate [m³/h]: 16/19

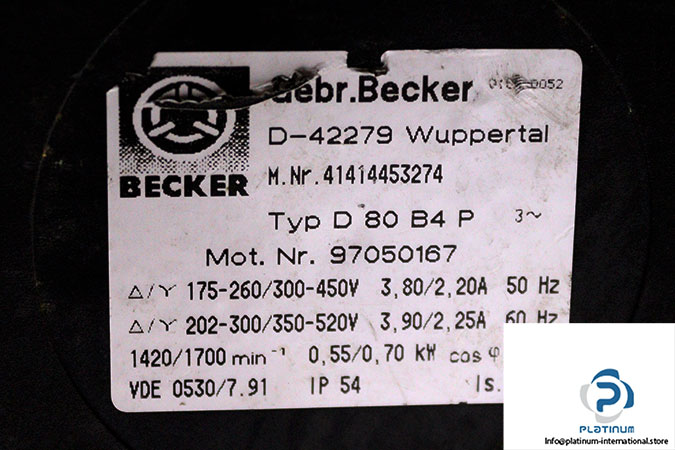

Attachment: BECKER D 80 B4 P 3 PHASE-MOTOR
Manufacturer: Becker
Type: 3 Phase Motors
Model: D80B4P
Rated Power [kW]: 0.55/0.7
Rated Voltage [V]: 175-260/202-300 Delta
Rated Current [A]: 3.8/3.9
Rated Voltage [V]: 300-450/350-520 Star
Rated Current [A]: 2.2/2.25
Rated Speed [rpm]: 1420/1700
Frequency [Hz]: 50/60
Power Factor: 0.76
Thermal Class: F
Protection Class [IP]: 54
Weight [kg]: 22,9
